Maxx Model CNC Aluminum Hopup Chamber for VFC SCAR Airsoft AEGs (Model: SV)

ID: 10289 (HU-MX-HOP007SV)
MX-HOP007SV
Maxx Model ProductsMX-HOP007SVMX-HOP007SV10289
Evike.com
4.7 stars, based on 6 reviews

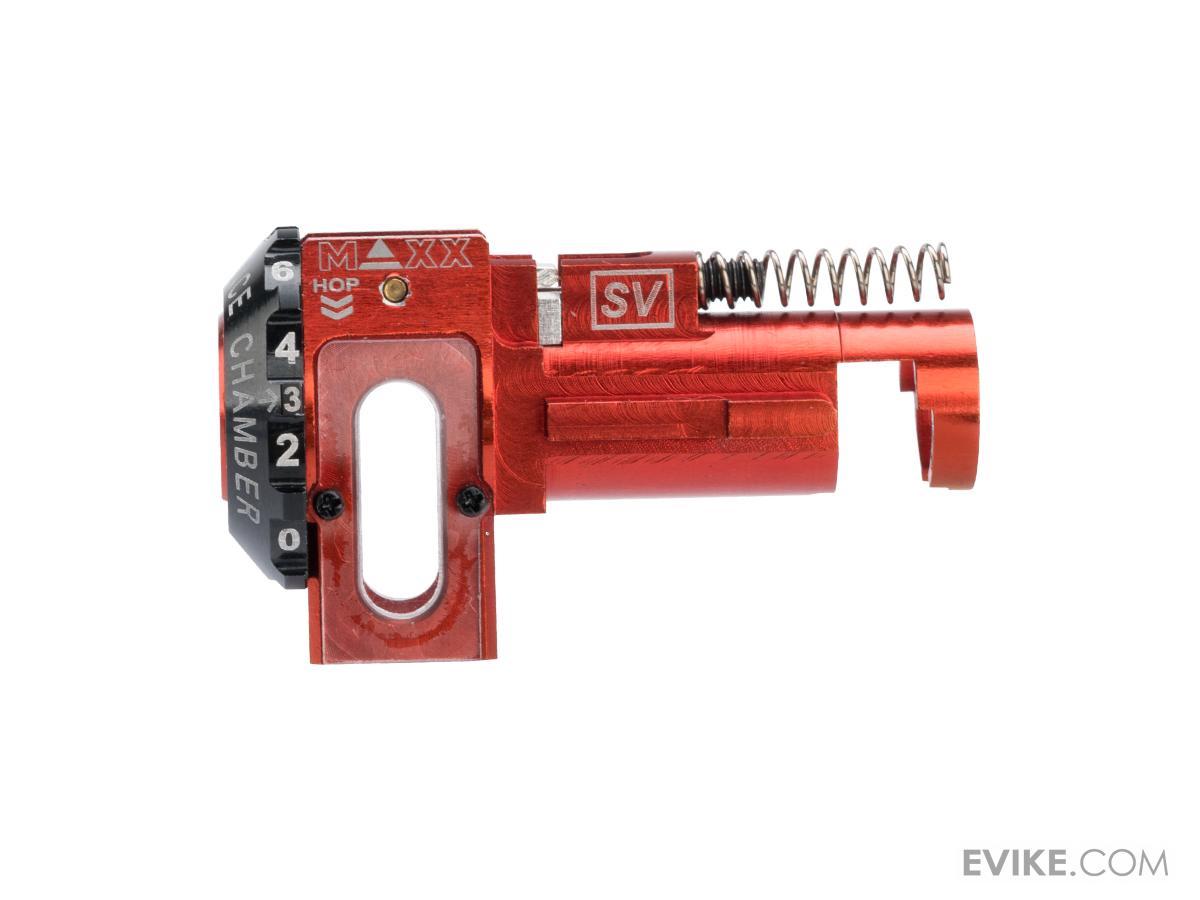

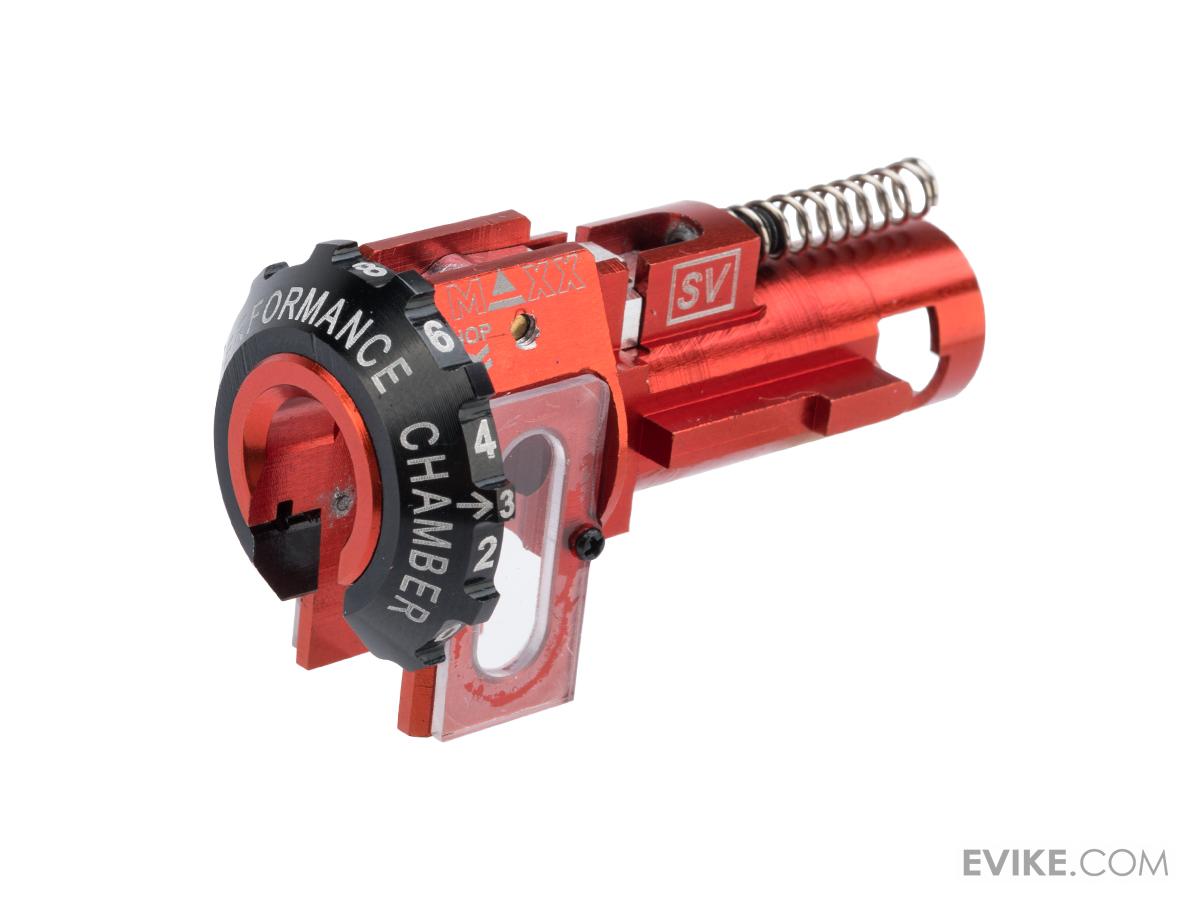

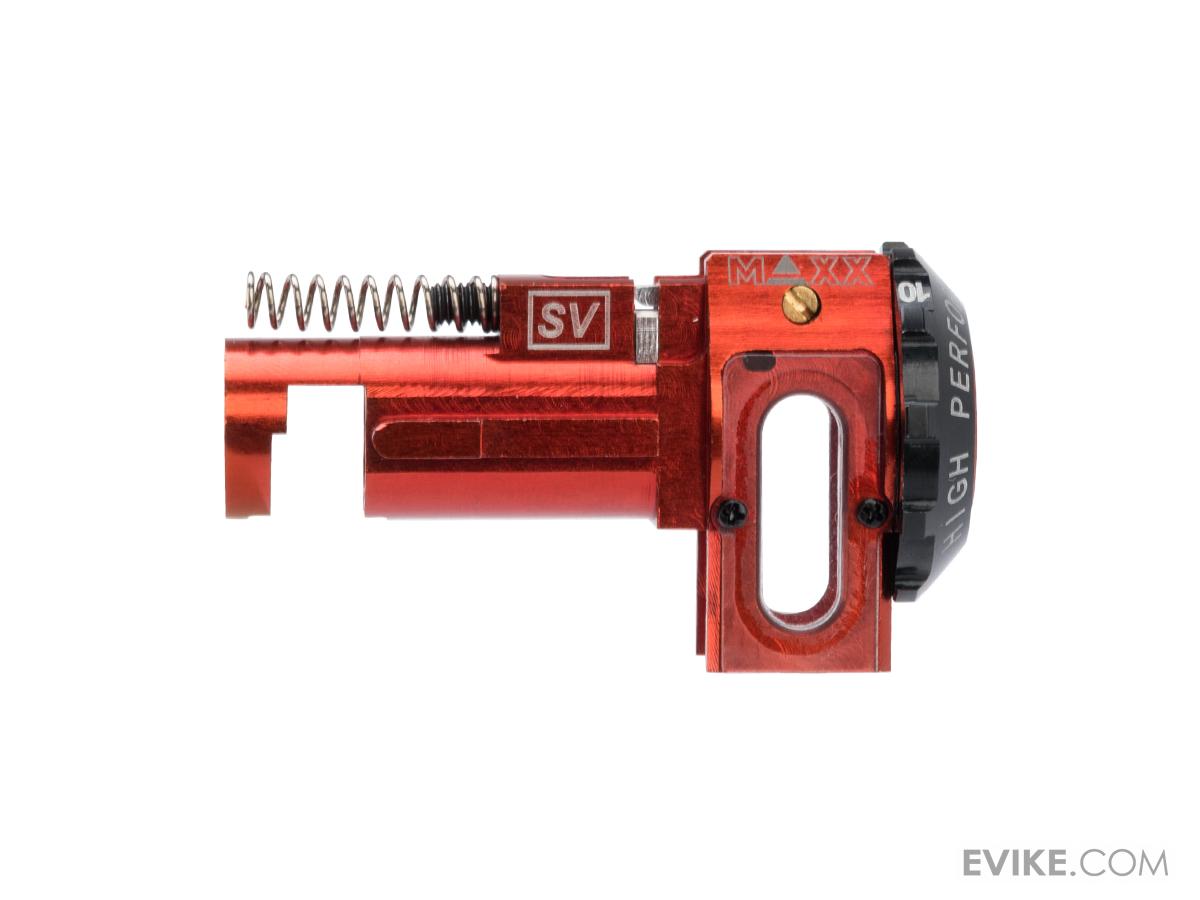

Maxx Model CNC Aluminum Hopup Chamber for VFC SCAR Airsoft AEGs (Model: SV)
Hover or touch above to zoom
Hopup unit may require assembling
Product image 1 Product image 2 Product image 3 Product image 4 Product image 5
Maxx Model Products

$44.98

MAP ProtectedExempt From Coupons
The manufacturer of this product enforces a strict minimum advertised price (MAP) policy which excludes this product from any additional discount coupon codes. This item, however, may qualify for free shipping.
Model Options:

Features

  • Machined from a solid aircraft aluminum block with tight tolerances to provide better accuracy, consistency, and durability
  • Improved accuracy and ensure consistent air seal for VFC SCAR-L/H AEG series
  • Precision rotary dial design for fine hopup adjustments
  • Re-engineered the hopup levers and concave nubs to work best with R-hop, Flat-Hop and Standard-Hop to keep the BBs shooting straight and accurate on every single shot
  • Removable Brass Threaded Slot Pin for setup and maintenance
  • Accepted the nozzle length from 21.00mm to 21.25mm on VFC SCAR-L and 38.50mm to 38.75mm on VFC SCAR-H
  • Fully compatible with stock bucking and most aftermarket soft and hard rubber bucking without losing FPS or dropping BBs
  • Extended sliding arms design on both side of the chamber housing to ensure the hopup unit is always centered, straight and air tight at all times when closing the receivers
CNC Aluminum Hopup Chamber SV unit is specially designed to improve accuracy, durability and ensure consistent air seal for VFC SCAR-L/H AEG series.
The Hopup Chamber SV unit has a precision rotary dial design for fine hopup adjustments, also re-engineered the hopup levers and concave nubs to work best with R-hop and Standard-Hop to keep the BBs shooting straight and accurate on every single shot.
The Hopup Chamber SV unit is designed to accept the nozzle length from 21.00mm to 21.25mm on VFC SCAR-L and 38.50mm to 38.75mm on VFC SCAR-H, and also fully compatible with most aftermarket soft and hard rubber bucking without losing FPS or dropping BBs.
The Hopup Chamber SV Housing is equipped with a new CNC Delrin Locking C-Clip design to hold barrel tight without wobbling and twisting. With the new extended sliding arms design on both side of the chamber housing, the hopup unit is always centered, straight and air tight at all times when closing the receivers.

***The Dual UV LED Boards and Module set are optional add-ons to glow BBs in the dark. Operating Voltage from 7VDC - 15VDC (2-4 cells LiPo, 6-13 cells NiCad). (Sold separately)
***The Empty Magazine Detection Sensor and Electronic Switch Controller are optional add-ons to stop Motor/HPA firing when the magazine is empty. (Sold separately)
***Test results: FPS might be increased from 10FPS to 30FPS over stock setup. Please check your FPS!

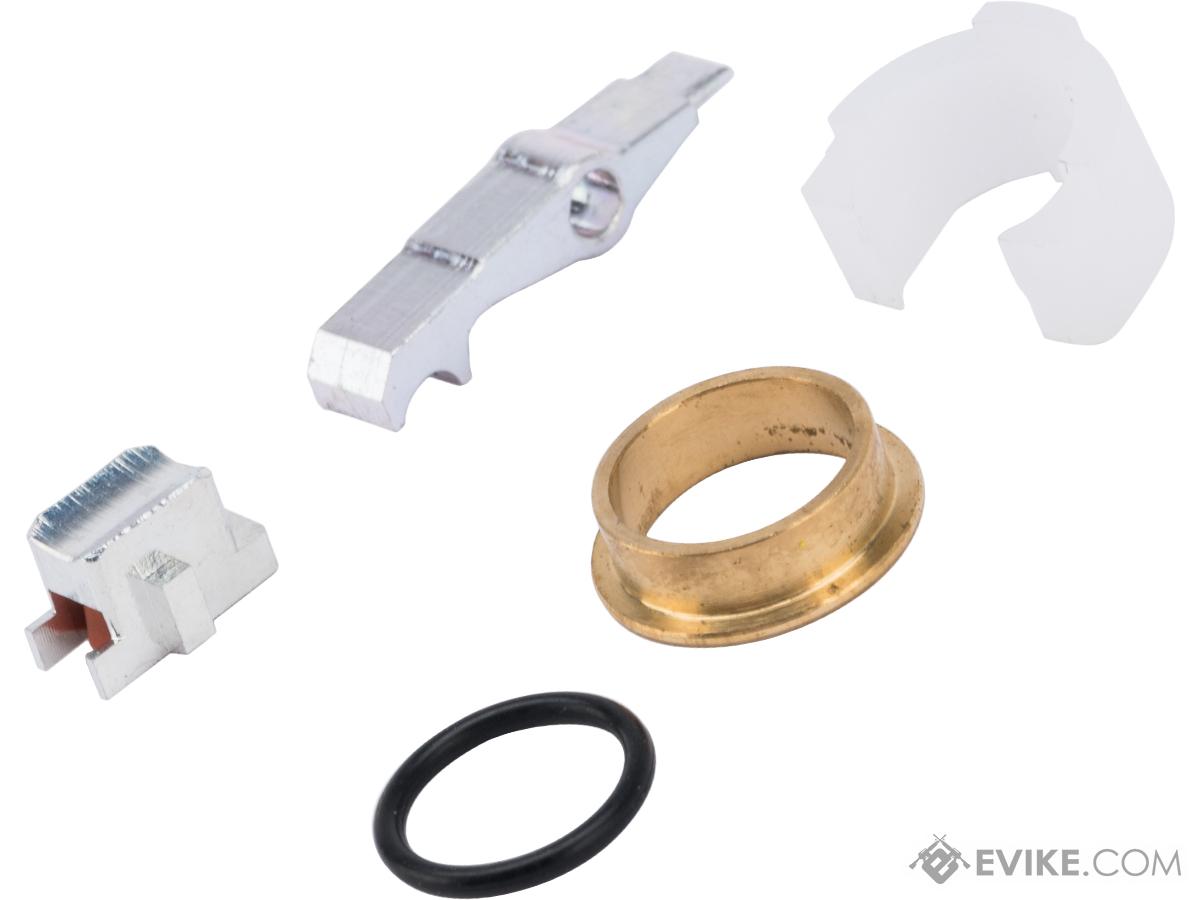

Hopup Kit Includes:
  • 1 x CNC Aluminum Hopup Chamber SV unit
  • 2 x Strong Clear Vinyl Cover set
  • 1 x CNC Aluminum Standard-Hop Arm
  • 1 x CNC Aluminum R-Hop Arm
  • 1 x Silicone Rubber Standard-Hop Nub Damper
  • 1 x Silicone Rubber R-Hop Nub Damper
  • 1 x CNC Aluminum 4.5mm length Precision R-Hop Concave Nub
  • 1 x CNC Aluminum 6mm length Precision R-Hop Concave Nub
  • 1 x CNC Brass Threaded Slot Pin
  • 1 x CNC Delrin Locking C-Clip
  • 1 x CNC Barrel Brass Spacer
  • 1 x Brass Spacer Holder Oring
  • 1 x Steel Compression Spring

  • Manufacturer: Maxx Model

    Specifications:

    Overall Length: 48.35mm
    Overall Height: 27mm
    Hub Outer Diameter (to fit into Outer Barrel): min 12mm
    Hub Inner Diameter (to fit Nozzle): max 8.3mm
    Application: Compatible with VFC SCAR-L and SCAR-H Airsoft AEGs
    Material: Aluminum 6061
    Type: One Piece

    About Maxx Model Products

    Maxx Model Products design, manufacture, and make high quality parts for Airsoft products.

    6 Customer Reviews

    (Write a review)

    by London G. on 08/08/2020
    "Easy to install . If you don't fond an R Hop then there's an extra arm included for you to install a standard nub hopup . Comes already installed a R Hop if I recall . Take apart and replace with nub . Make sure hop is set to 0 . Comes with a small instructions paper . To get it on make sure the dial is flushed with the hop to have an opening for the nozzle to slide in . Make sure you have the hop spring loose enough where you can put tension on the hopup and the barrel . Don't tighten the two screws holding the hop up to the barrel too tight and you'll be fine 🤙
    by Diego P. on 06/05/2020
    "Nice machining and very high quality. Feels and looks soooo much better and more premium than the cheap stock hop up(which cracked on me). Dial is very stiff but always holds position. I tried two different buckings with it. The first was a maple leaf 75 degree bucking. Seemed to fit very well in the unit. At first it would only feed hi caps, then nothing at all. Changed it out for a krytac orange bucking and now I am literally reaching well upwards of 80 yards with the stock barrel with great consistency. I am very very impressed with this combination. Note however that the krytac bucking was a much snugger fit in the hop up unit which made it a bit more difficult to install.
    by Marshall K. on 03/17/2020
    "This was it. This was the gauntlet of hope for the VFC scar users around the world. I bought this with an AST 80* (as it recommended) and the Prommy 407mm 6.03mm barrel.

    I compared the stock setup with stock internals then replaced the hop up unit with the new parts and the results were spectacular. Accuracy became soooooo good (.30g bbs). I gained maybe 30 feet of range and probably got an fps boost too.

    HOWEVER-----My shots were very consistent and accurate...if I tilted my gun. Shots would veer one way but consistently. I came to realize something was defective. I know it wasn't the bucking because i replaced it twice. Not sure if it's the unit or the barrel but I bet its the barrel



    Pros: consistent, FPS boost, Perfect airseal, dial stays in place, solid construction

    Cons: Im getting inaccurate yet consistent shots becasue of some defective part. IDK what it is

    IG: @iowacobras
