GATE TITAN II Bluetooth Drop-In MOSFET for Version 2 Airsoft AEG Gearboxes (Model: Rear Wired / Unlocked / Expert)

ID: 114423 (MOSFET-GATE-TBT2-AER)
TBT2-AER
GATE TITAN II Bluetooth Drop-In MOSFET for Version 2 Airsoft AEG Gearboxes (Model: Rear Wired / Unlocked / Expert)
Hover or touch above to zoom

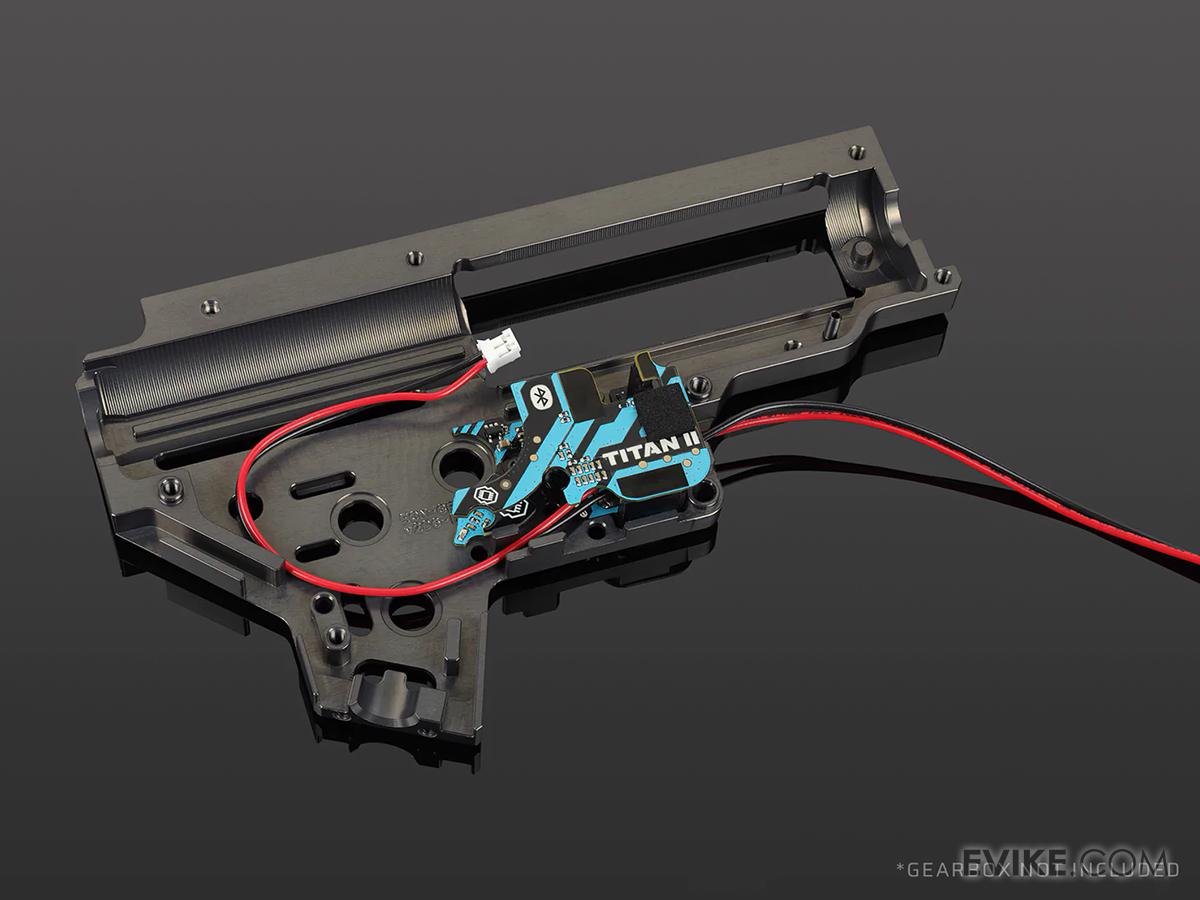

Gearbox, phone, & other accessories not included
Product image 1 Product image 2 Product image 3 Product image 4 Product image 5 Product image 6 Product image 7 Product image 8 Product image 9
GATE

$135.00

MAP ProtectedExempt From Coupons
The manufacturer of this product enforces a strict minimum advertised price (MAP) policy which excludes this product from any additional discount coupon codes. This item, however, may qualify for free shipping.

Features

  • Five optical trigger sensors allow you to control trigger sensitivity. You don't have to disassemble your AEG. Just connect to the GATE Control Station App to adjust the trigger to your preferences and skill level
  • Two selector sensors allow you to take advantage of hundreds of selector mode variations, depending on firmware edition. The following modes are available for selection*: Safe, Semi, Binary, Burst, Burst / Auto, Auto, & Semi Ramping
  • Victory in the game is often a matter of fractions of seconds. The new advanced cycle detection algorithm, thanks to a dual gear sensor, allows for smooth and precise pre-cocking adjustments in even the most exigent configurations increasing trigger response. Thanks to pre-cocking, you gain a trigger reaction similar to a real replica. This allows for initial spring compression, which speeds up trigger response significantly
  • Mag feature allows for simulating magazines of lower capacity than actually used. Depending on Firmware Edition, allows you to set a simulation of magazine capacity from 1 BB up to 250 BBs. Even if you have a high-capacity magazine, this function lets you truly increase the realism of your game by imitating that your magazine is real-cap
  • ROF control enables the reduction of a gun's rate of fire. You can use stronger batteries and still have a ROF exactly as you like. Depending on firmware edition, you can choose between Adaptive, Manual PWM, Manual Delay, and Manual Delay + PWM
  • Smart trigger enables you to achieve faster trigger response. It works with the ROF control system, allowing you to achieve faster trigger response with the same rate of fire
  • Protection against battery over-discharge. Modern LiPo and LiFe batteries are very sensitive to over-discharge. If you do not want to damage the battery and you care about its service life, this protection is indispensable. The microprocessor is constantly monitoring battery voltage. When voltage drops to a critical level, it will not allow firing. The number of battery cells can be detected automatically
  • Active braking adjust the motor's braking power according to your needs. Choose breaking value manually or set the Adaptive Active Brake. It will stop the piston in the front position, which eliminates unnecessary stresses, increasing the service life of the gearbox and its parts
  • Thanks to the gear sensor, TITAN precisely detects where the cycle should finish. Therefore, even the shortest trigger action produces at least one full cycle. The optical sector gear sensor counts each tooth of the gear, so it's possible to use all types of gears: Infinite Torque-up, DSG, SSG, 19-tooth, and standard ones. In EXPERT Firmware, you can select the cycle manually
  • Diagnostics & updates feature allows you to troubleshoot your AEG in case of any issue. Errors are communicated once they occur, and their description can be found in the GCS App. GCS allows for making firmware updates via the internet, which enables you to quickly apply changes, improvements, and bugfixes
  • The Smart Fuse protects your AEG's battery, motor, and controller, even in case of reverse battery connection. A combination of current, voltage, and temperature measurements makes your AEG installation highly reliable. It protects the MOSFET against overheating, overloading, and short-circuiting. If your airsoft gun gets jammed, this function protects the motor and battery against damage

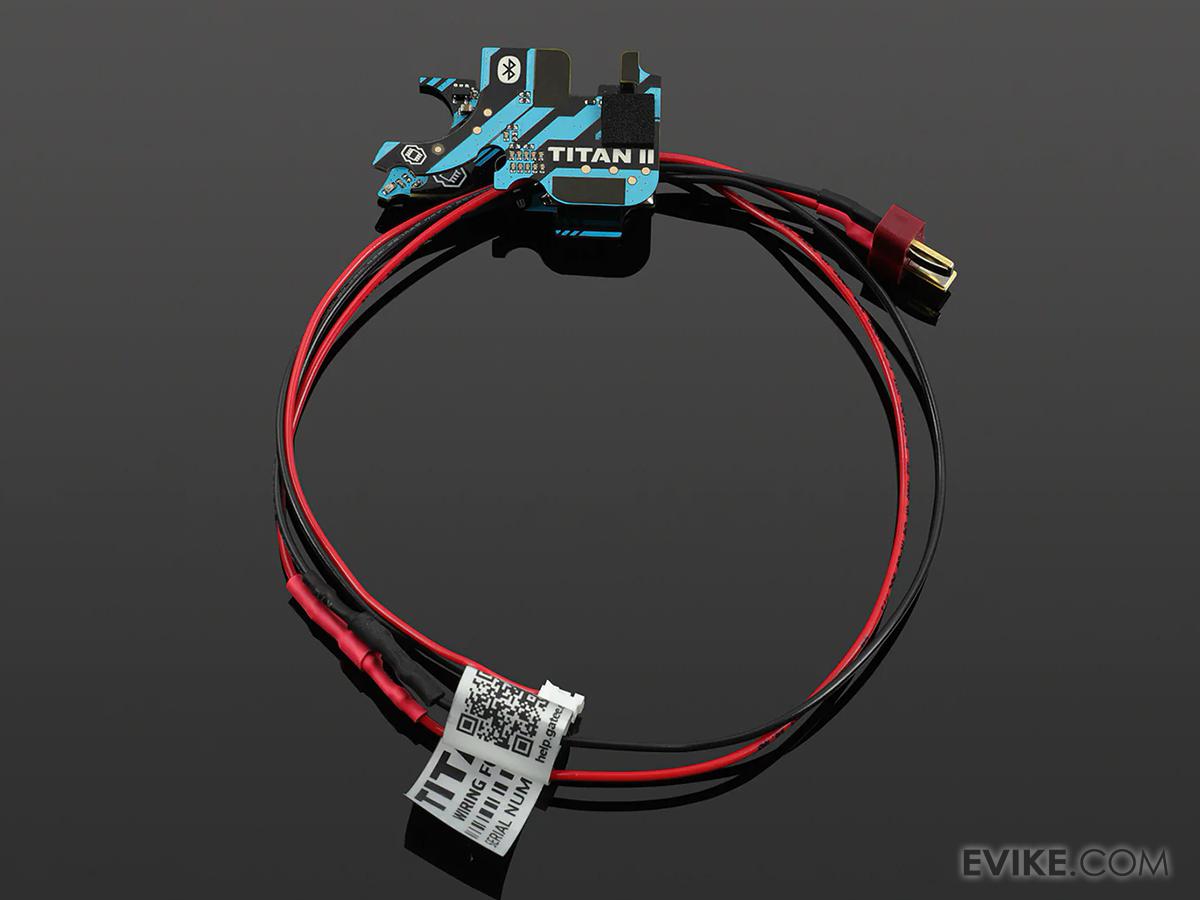

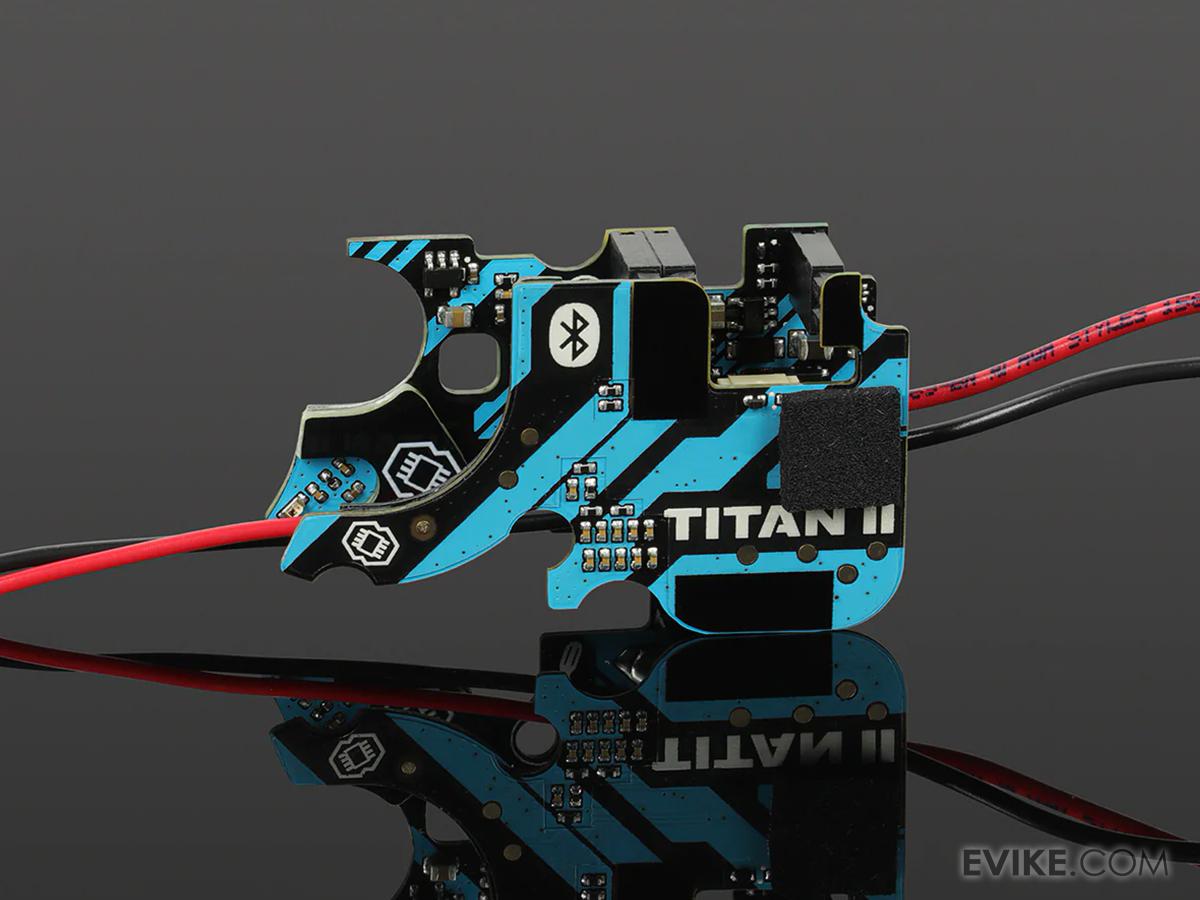

The brand new TITAN II Bluetooth® for V2 GB is the GATE flagship Electronic Trigger Unit (ETU). Built-in Bluetooth 5.2 technology gives you direct access to TITAN II Bluetooth® settings, AEG telemetry, and the ability to use your smartwatch, STATUS, and other future devices of the GATE Ecosystem. The innovative gear sensor not only counts gears, but also, as the first one in the world, determines the direction of gear rotation, offering you the most precise cycle control in AEGs. The mind-blowing optical trigger sensor allows you to set the hair trigger with ludicrous precision: even 50 sensitivity levels for the first millimeter of trigger movement, keeping TITAN V2 sensor advantages. TITAN II Bluetooth® is equipped with a multifunctional port ready for connecting additional accessories such as the bolt catch and magazine sensors, tracer in the hop-up chamber, and more.

What makes TITAN II so special?
  • Mind-blowing trigger sensor, with the advantages of the TITAN sensor but with the ability to set hair trigger with ludicrous precision: even 50 sensitivity levels for the first millimeter of trigger movement
  • Brand-new patented gear sensor detects each tooth and the direction of gear movement allowing for the world's most precise cycle control
  • Mechanical protection of trigger sensors increase reliabilitytrigger sensors damage is now covered by warranty
  • Ultra-precise telemetry measurements thanks to the new current sensor
  • Pre-Cocking can be set in %
  • Build in boost convertertrouble-free operation in low temperatures
  • Lowest in the market current consumption. Deep sleep mode with only 0.1 mA current consumption prevents battery discharge (3x lower consumption than in current ETUs, which already had the lowest current consumption on the market)

Compatibility with GATE Ecosystem
  • Compatibility with GATE Ecosystem including GATE STATUS and future hop-up chamber with tracer
  • User-friendly GCS app for iOS, Android, macOS, Windows, watchOS, Wear OS
  • TITAN II can be connected with smartwatch
  • Ultra-precise telemetry measurements thanks to the new current sensor

Multifunctional Programmable Port
  • Hop-up chamber to tracers and sensors
  • Bolt catch button
  • HPA Engine (for dual solenoid engine you need an additional cable or HPA wiring version)
  • Electric Magazine
  • Magazine Sensor
  • Flashlight
  • More!

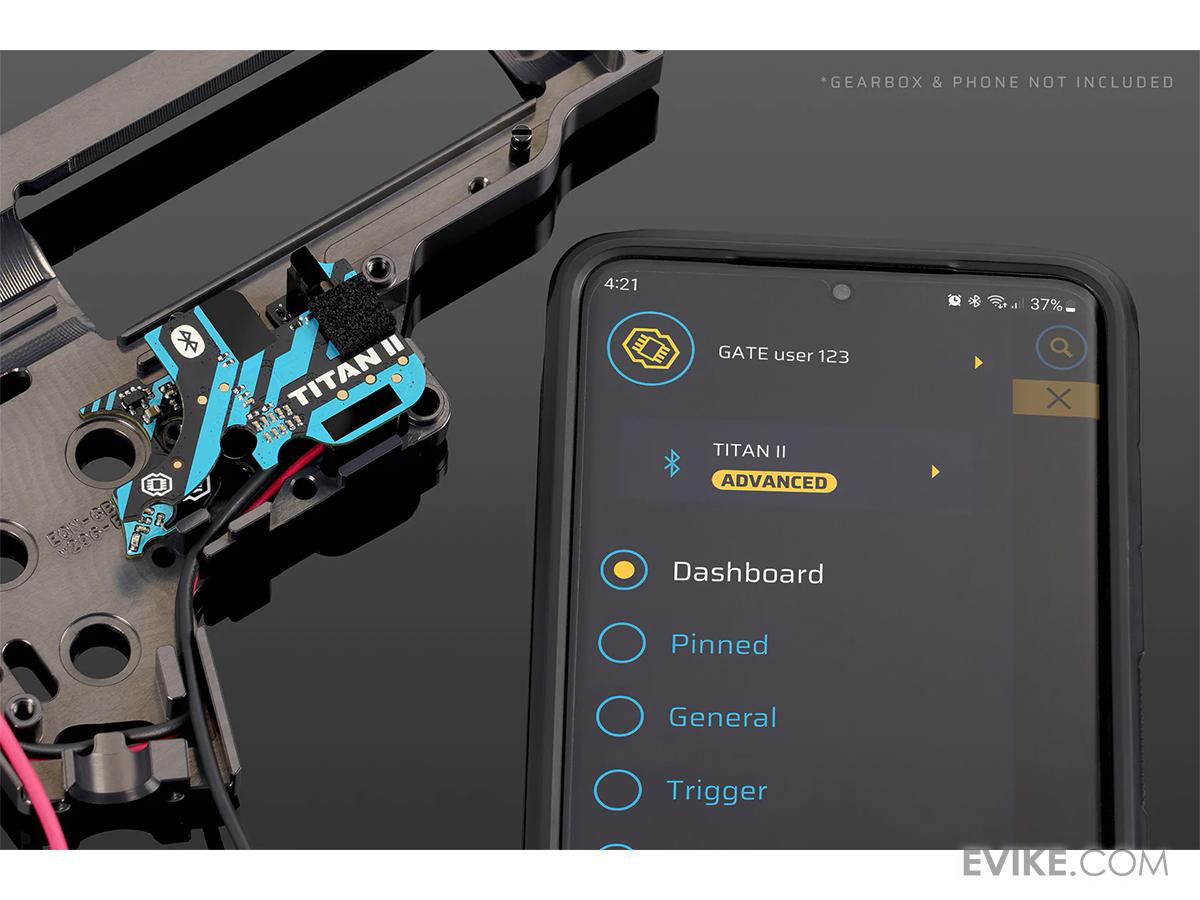

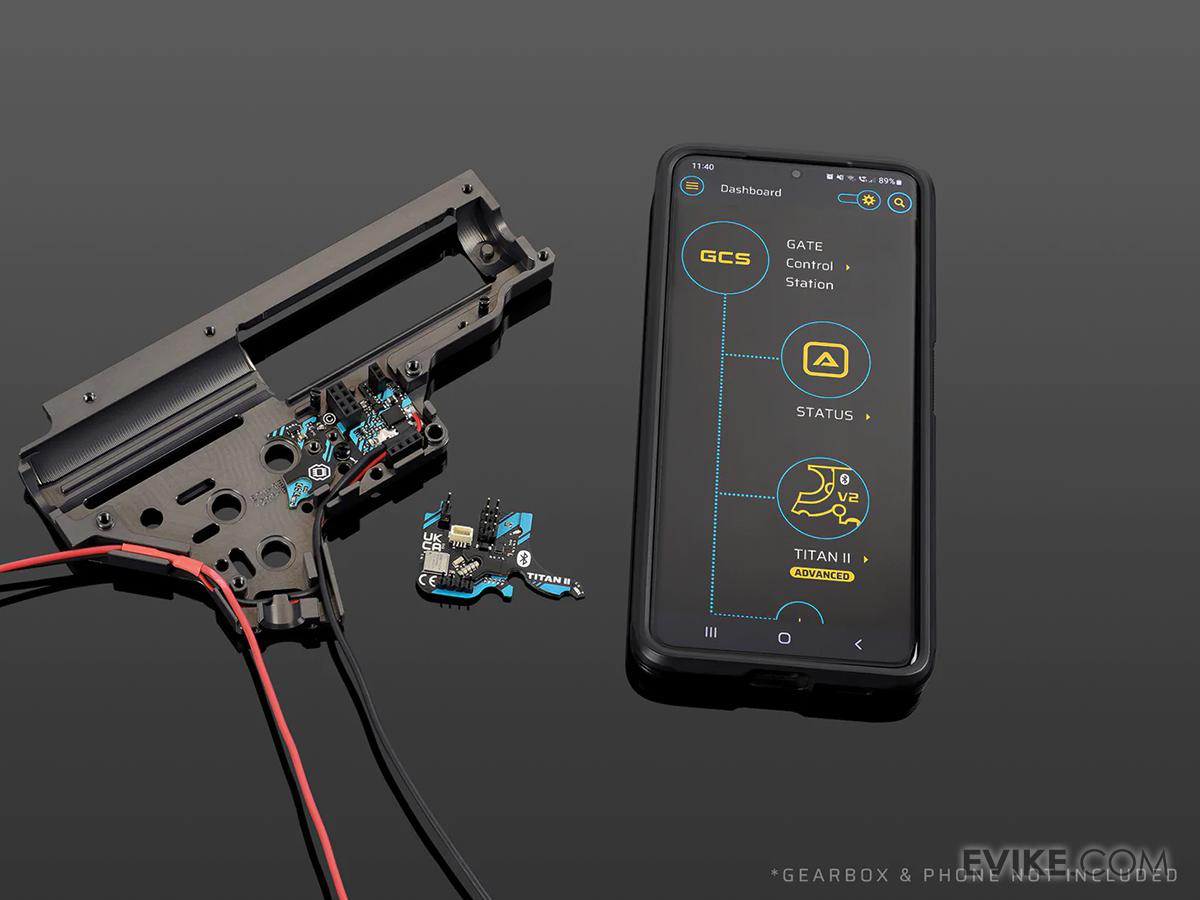

Connect your TITAN with the GCS App via Bluetooth® and get total control of your AEG:
  • Control your airsoft gun from your iOS, Android, macOS or Windows device
  • Set trigger sensitivity exactly as you like and adjust other TITAN settings in a simple way
  • Use automatic Pre-Cocking to gain a trigger reaction just like in a real gun
  • Try out ROF control, magazine simulation, and other functions
  • Update and upgrade Firmware
  • Check BB counters and telemetric data
  • Perform diagnostics and send reports
  • Virtual STATUS for smartwatches and smartphones
  • Bolt Catch and magazine sensors for a realistic reload sequence

Manufacturer: GATE

Specifications:

Supply Voltage Range: 3.75 - 17 VDC
Rated Current: 30A
Current Consumption: 27mA
Low Power Mode: 100µA
Connectivity: Bluetooth 5.2 Low Energy
Dimensions (L x W x T): 47.2mm x 28.9mm x 14.5mm
Finished Product Weight: 28.2g
Operating Temperature Range: -15 Degrees C Minimum, +50 Degrees C Max
Relative Humidity: < 80%
Programmable Power Supply w/ eFuse: Connect additional accessories such as hop-up chamber tracers & electric magazines
Compatibility: Most Standard Version 2 Airsoft AEG Gearboxes

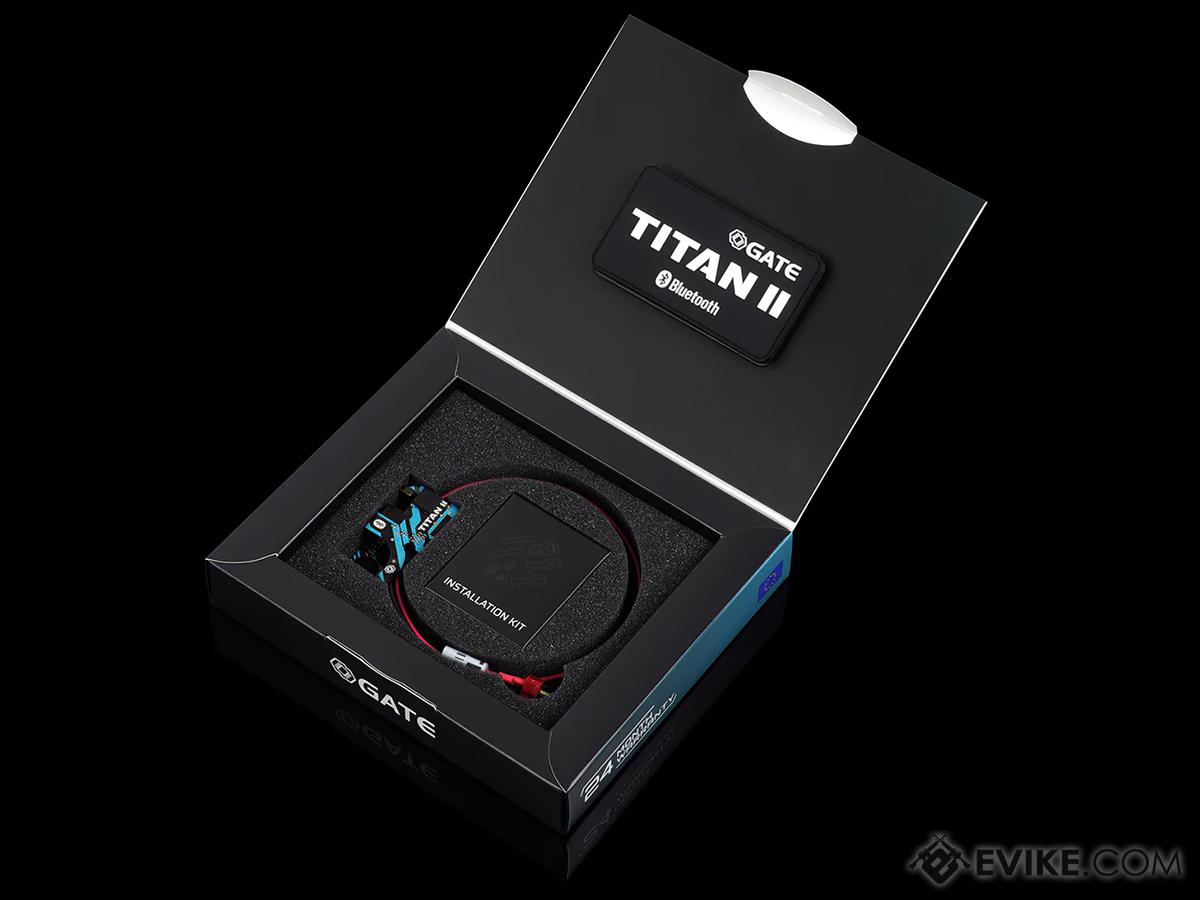

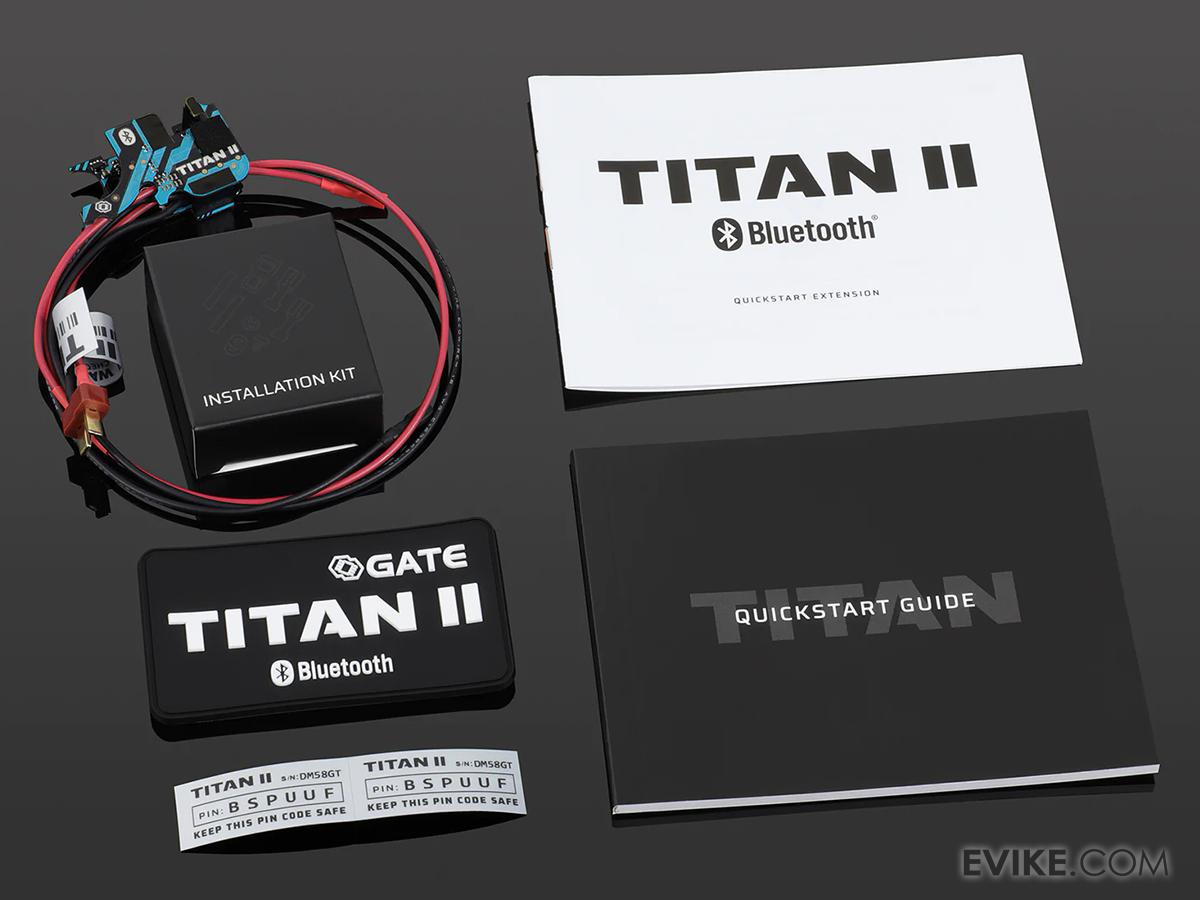

Package Includes: TITAN II Drop-In Module, Installation Kit, Quickstart Guide, TITAN II Patch


About GATE

Since 2009, GATE company has been designing and producing the most innovative AEG Control Systems and MOSFETs. GATE has premises located in Cracow, Poland with products successfully entered global markets and are being sold in more than 30 countries.
