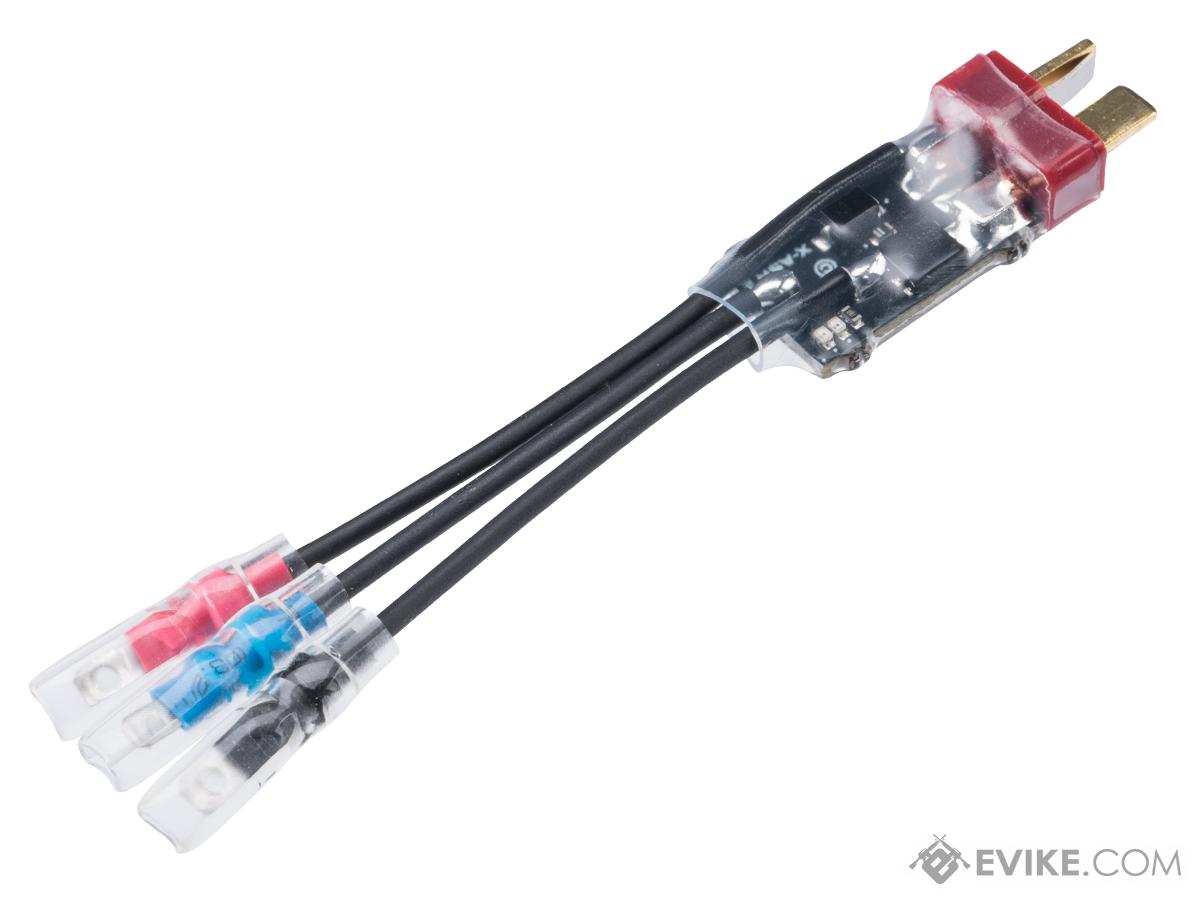

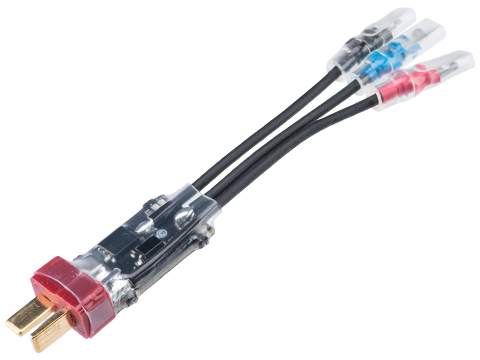

GATE Airsoft X-ASR Airsoft MOSFET Unit

Features

• No additional fuse required in AEG installation
• Automatic resettable protection against reverse polarity protects motor and the MOSFET itself in the event of reverse polarity. Reverse connection will not damage the MOSFET or motor; the AEG will work again once you connect the battery in the right way
• Smart fuse protects MOSFET in case of motor jam. It prevents from overheating, overloading and overcurrenting. The MOSFET is protected against short circuit of signal and motor wires. In case of too strong AEG configuration, the smart fuse will turn off the MOSFET in order to prevent overheating
• Built-in self-test 2 LEDs allow for quick troubleshooting
• Conformal coating Military Specification MIL-V-173C provides resistance to difficult atmospheric conditions

X-ASR is the world™s first 4th generation MOSFET protected against reverse polarity. It saves space, time and money because additional regular fuse is no longer needed. Acting as an electronic guard, X-ASR improves your AEG™s safety and durability through conformal coating and self-test with 2 LEDs. Although designed for up to M120 springs, in full auto mode, X-ASR cooperates even with M150 spring. Moreover, in case of high torque motor and gears you can use stronger spring.

What are X-ASR's biggest assets?

• MOSFET targets energy from the battery directly to the motor, bypassing the mechanical trigger contacts. As a result, your rifle gains higher rate of fire as well as faster trigger response. Moreover, trigger contacts are protected against burnout.
• Debouncing provides full compatibility with micro-switches and ensures complete resistance to contact bounce (vibration). Your AEG gains higher ROF, faster trigger response and your MOSFET is less prone to overheating.

What is your AEG protected from when using an X-ASR?

• Simple motor jam consequences after a motor jam, the MOSFET will not be damaged due to too high current or overheating
• Damage resulting from battery reverse polarity since R/C mini-tamiya connectors have different polarity than the airsoft ones, lack of experience or precaution while connecting the battery will cause no damage to it
• Consequences of using weak NiCd/NiMH batteries the MOSFET will not be damaged due to too low voltage
• Damage to insulation of AEG installation and short circuit
• Harm caused by poor weather conditions

Behind the lines
Considering its functions, X-ASR is an improved version of NanoASR MOSFET. However, when designing X-ASR, we focused even more on its reliability.

The most important assumption was that it must be installed without any additional fuse. All the other MOSFETs we offer require supplementary fuse in AEG installation. To eliminate such necessity, we implemented the smart fuse and protection against reverse polarity in X-ASR.

Manufacturer: GATE

Specifications:

Compatibility: For All Airsoft AEG Rifles. Installation required, professional installation recommended.
Package Includes: 1x X-ASR Module, 1x Installation Kit, 1x Troubleshooting Card


Warning!: GATE does not guarantee the compatibility of mosfets and ETUs such as TITAN or ASTER with brushless motors. Connection of a brushless motor can cause immediate damage to the device, motor and battery, that is not covered by the warranty and can lead to a fire.

About GATE

Since 2009, GATE company has been designing and producing the most innovative AEG Control Systems and MOSFETs. GATE has premises located in Cracow, Poland with products successfully entered global markets and are being sold in more than 30 countries.
