PolarStar Universal Gas Stock UGS™ HPA Stock System (Model: Type 1 / RS Spec Threaded Receiver)

ID: 90917 (ACC-HPA-10000219)
10000219
PolarStar1000021990917
Evike.com
PolarStar Universal Gas Stock UGS™ HPA Stock System (Model: Type 1 / RS Spec Threaded Receiver)
Hover or touch above to zoom

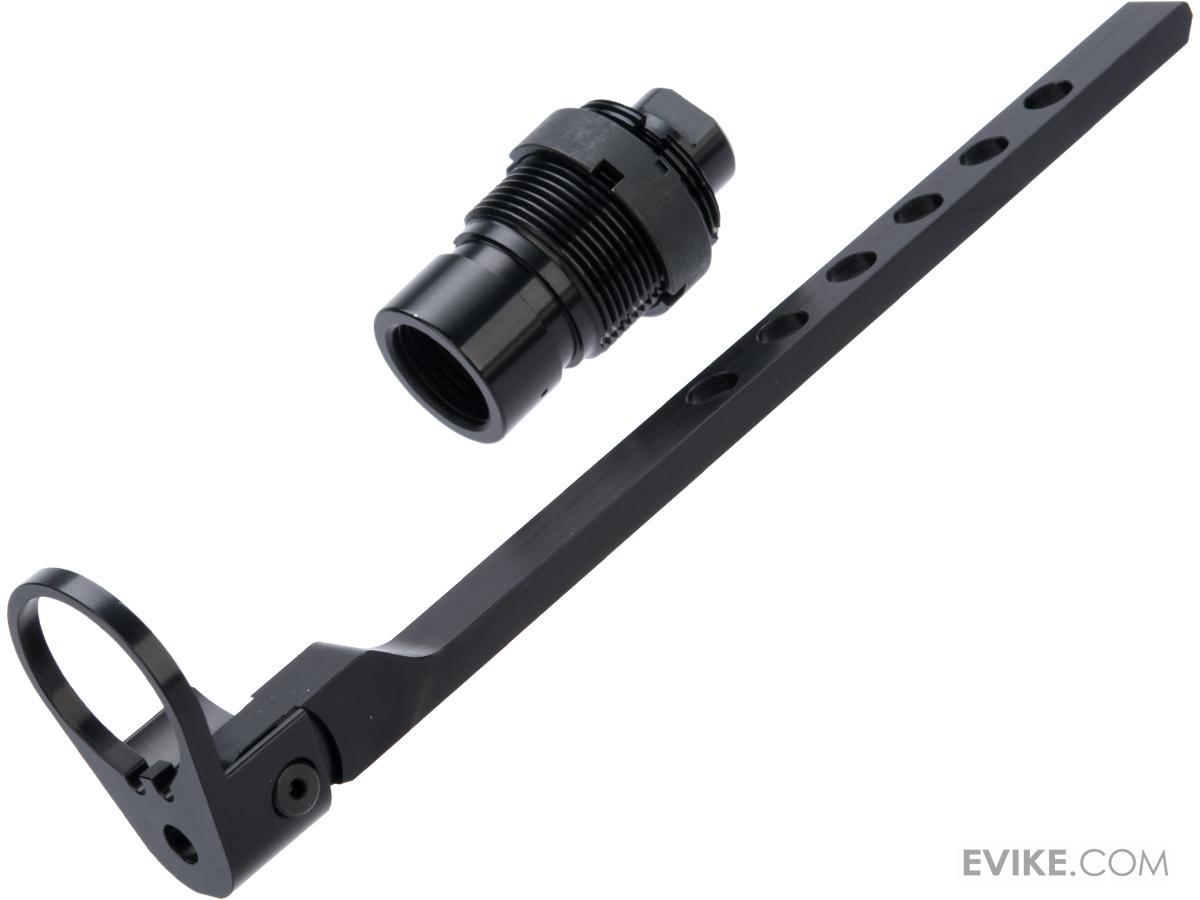

Rifle, R3 Stock, and HPA tank not included
Product image 1 Product image 2 Product image 3 Product image 4 Product image 5
PolarStar

$225.00

MAP ProtectedExempt From Coupons
The manufacturer of this product enforces a strict minimum advertised price (MAP) policy which excludes this product from any additional discount coupon codes. This item, however, may qualify for free shipping.
Free ShippingNo Coupon Required
Free shipping within lower 48 US states, no coupon code needed!

Features

  • Works with HP or SLP regulators. SLP Recommended
  • Simple zip-tie lockout/tournament lock
  • Adjustable length of pull
  • Same internal design as the Micro Reg™. All internals except piston are interchangeable between Micro Reg™ and UGS™
  • The UGS™ regulator uses only 2 o-rings, promoting reliability and ease of maintenance
  • Compatible with all standard 2" diameter tanks and most 2" tank stocks used in paintball applications
  • Includes castle nut and all mounting hardware
  • Not compatible with Fusion Engine™
With the PolarStar UGS™ (Universal Gas Stock) you can now get the performance advantage of a HPA system without needing to be tethered to a remote air rig and still retain the likeness and function of a traditional adjustable AR-15 stock. It can be used with any of the PolarStar cylinder conversion kits such as the F2™, F1™ or JACK™ and is compact enough that it can also be used with other similar HPA cylinder systems on the market.

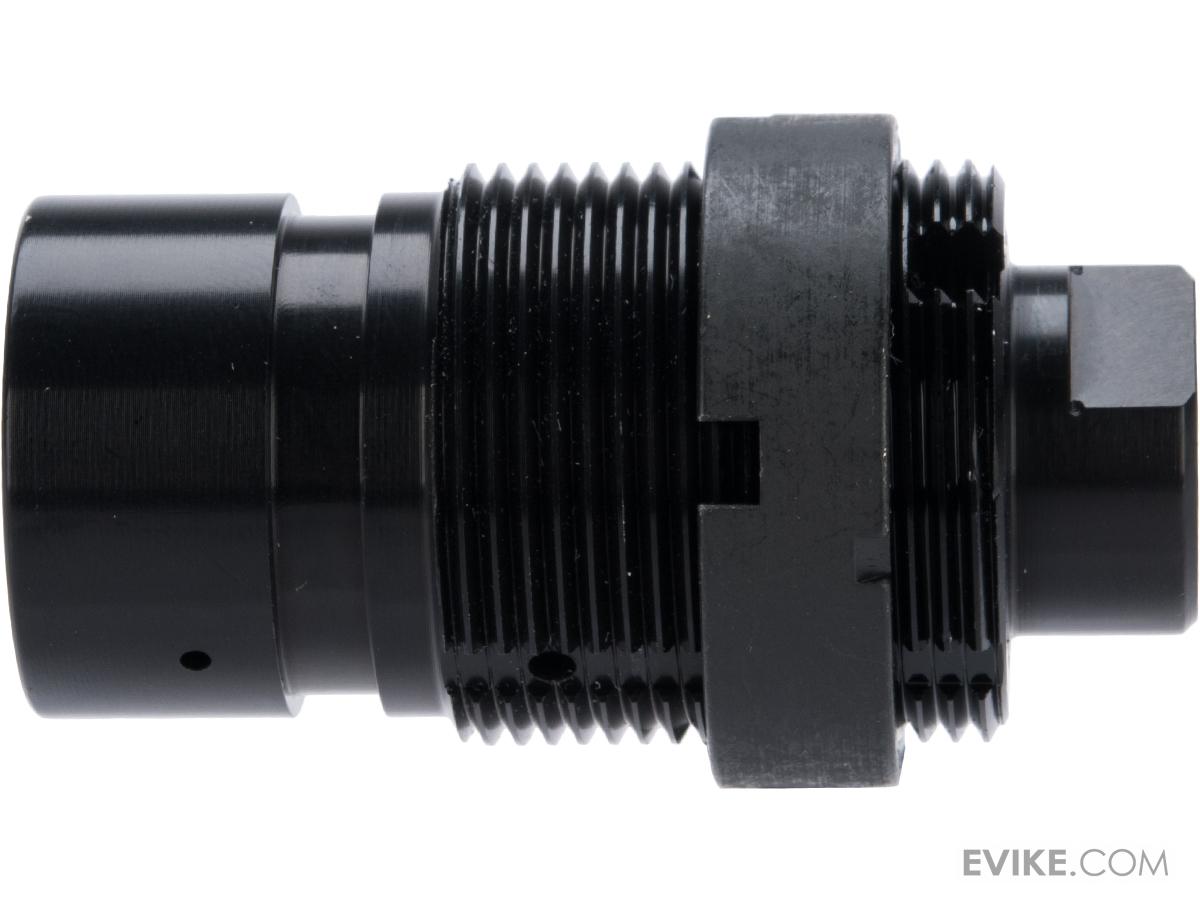

The UGS™ features an integral regulator which follows the same design as the highly regarded PolarStar Micro Reg and delivers the same lightening fast performance. This regulator has a output pressure range of 40-130psi which is easily adjusted using a 3/32 allen key but can be locked out using a standard chrono zip tie which blocks the adjustment screw.

This configuration is designed to accept 13ci HPA tanks and R3 buttstock (sold separately) but it can be reconfigured for additional gas input options to include CO2 and Mil-Spec diameter HPA cylinders which are currently in development.

The Type 1 is designed for use with M4 series AEG receivers that accept threaded buffer tubes such as the G&P R3 series. This is where the buffer tube itself threads into the receiver. (Modification of the gearbox is required)

The Type 2 is designed for use with traditional TM Spec M4 series AEG receives. This is where the buffer tube slides onto a stock tail on the back of the receiver and is secured by a bolt. (Modification of the receiver and gearbox is required)

Manufacturer: PolarStar

Specifications:

Compatibility: PolarStar cylinder conversion kits and 13ci HPA tanks
Material: Aluminum
Min Output Pressure: 40 PSI
Max Output Pressure: 130 PSI
Max Input Pressure: 900 PSI
Outputs: Interfaces w/ Airline (6mm OD x 4mm ID)


About PolarStar

PolarStar Precision Airsoft was formed in January 2009 to fill a need for high quality, precision manufactured airsoft components designed for performance and longevity.The 2011 release of the patented Fusion Engine HPA system marked a change in direction for PolarStar. The focus shifted from developing upgrade components within the constraints of existing systems to developing innovative HPA systems and accessories which replace the aging AEG technology.PolarStar Airsoft is a division of PolarStar Engineering & Machine (PSE&M), a unique blend of tenured American toolmakers and a full service CAE/CAD/CAM (Computer Aided Engineering, Design, and Manufacturing), special crafts machine shop keeping alive our proud manufacturing heritage of Made in the USA. Founded in 1997, PSE&M began by servicing the automotive racing industry through the design and producing systems and components from art to part. Operating under the auspices of the Delaware Association of Professional Engineers, we retain a Professional Engineer (P.E.) on staff to ensure and certify all design and engineering standards are met. In addition to our own product line, PolarStar also offers engineering and manufacturing services tailored to the airsoft industry.
