PolarStar MR "MicroReg Gen 2" Micro Regulator Air Rig (Package: Regulator Only)

ID: 86277 (Rig-MICROREG)
10000069
PolarStar8591888627771000006986277
Evike.com

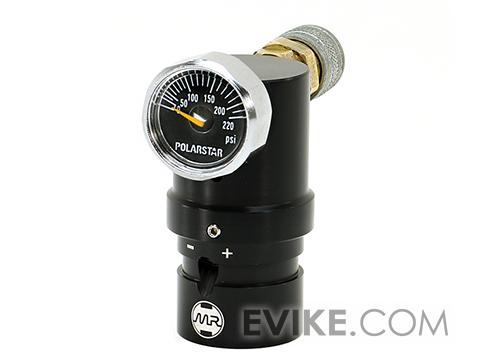

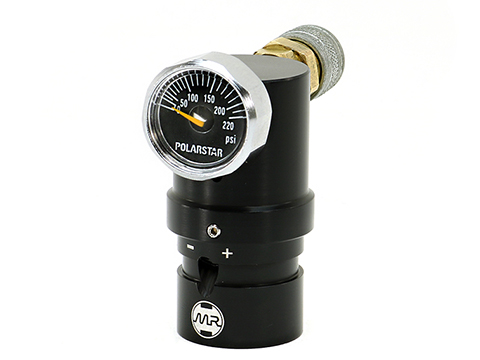

PolarStar MR MicroReg Gen 2 Micro Regulator Air Rig (Package: Regulator Only)
Hover or touch above to zoom
Product image 1 Product image 2 Product image 3
PolarStar

$125.00

MAP ProtectedExempt From Coupons
The manufacturer of this product enforces a strict minimum advertised price (MAP) policy which excludes this product from any additional discount coupon codes. This item, however, may qualify for free shipping.
Free ShippingNo Coupon Required
Free shipping within lower 48 US states, no coupon code needed!

Features

  • Modular design with different output and pressure configurations to be available
  • Simplistic design requires only 3 o-rings promoting both reliability and ease of maintenance
  • Adjustable output pressure from 40psi to 130psi (standard configuration)
  • Integral tournament lock utilizes standard zip-tie without the need for moving or additional parts
  • Low profile design stands less than 2.25" tall resulting in the entire regulator being more compact than a traditional UFA
  • Made in the USA
The reason for the GEN2 actually has to do with simplifying manufacturing rather than any change in how the regulator functions or performs.

As we continue to introduce more air systems, the more parts which are unique to each system and are not shared by other systems, the longer it takes to produce them since we have to break down and set up our machines to run each unique part.

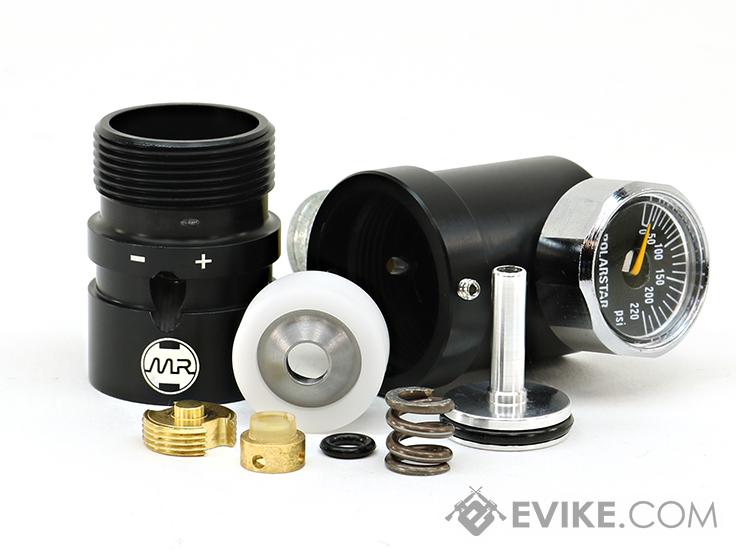

In order to streamline production we have redesigned the body of the Micro Reg so that it can now accept the same piston as used the UGS and CGS since this was actually the only internal part which was different between those three systems.

By shifting the location of the gauge and output to the top of the regulator we no longer need the through hole on the Micro Reg's piston stem so it can use the same piston as the UGS and CGS which is also simpler to make. As an added bonus, we no longer need that center o-ring which drops the total o-rings in the system to just two. That center o-ring was a bit tricky to install so this also aids in speeding up assembly and makes it easier to maintain.

The two pistons are actually identical otherwise so as far as how the regulator functions, nothing has changed. It still produces 40psi or less on the low end of the pressure adjustment range and at least 130psi on the high end of the range. By having reduced drag on the piston from removing that center o-ring it technically is just a hair more responsive but this isn't anything you are really going to notice.

As far as the externals, the body has changed a bit in appearance but it is still just as compact as the original. The overall height of the body is within 0.006 of an inch of the GEN1 and the gauge sits a little higher but the overall footprint is basically the same.

Manufacturer: Polarstar

Specifications:

Length: 2.25"

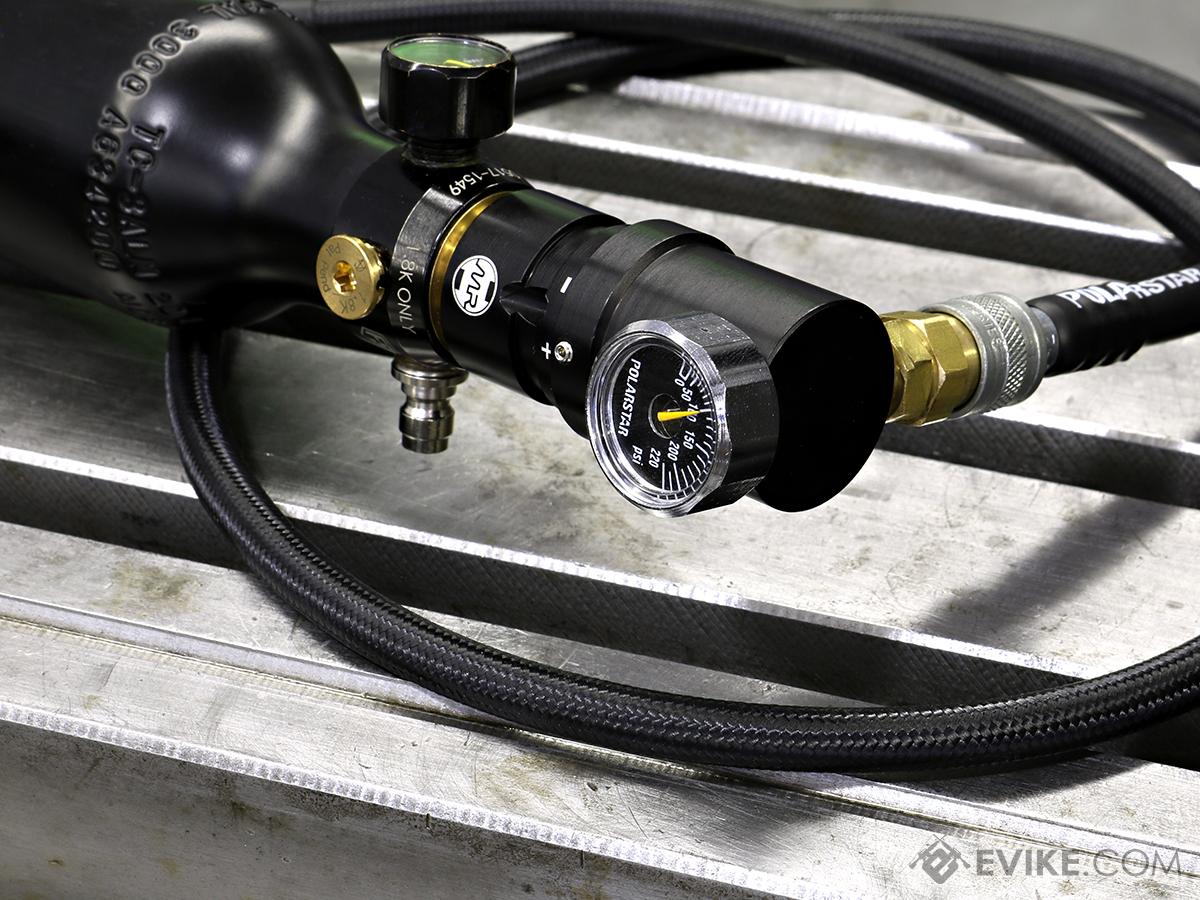

Compatibility: Standard HPA, LP, and SLP air tanks
Material: Aluminum Alloy

Note: The output pressure of the regulator can vary slightly depending on the output pressure of the tank it is used with.


About PolarStar

PolarStar Precision Airsoft was formed in January 2009 to fill a need for high quality, precision manufactured airsoft components designed for performance and longevity.The 2011 release of the patented Fusion Engine HPA system marked a change in direction for PolarStar. The focus shifted from developing upgrade components within the constraints of existing systems to developing innovative HPA systems and accessories which replace the aging AEG technology.PolarStar Airsoft is a division of PolarStar Engineering & Machine (PSE&M), a unique blend of tenured American toolmakers and a full service CAE/CAD/CAM (Computer Aided Engineering, Design, and Manufacturing), special crafts machine shop keeping alive our proud manufacturing heritage of Made in the USA. Founded in 1997, PSE&M began by servicing the automotive racing industry through the design and producing systems and components from art to part. Operating under the auspices of the Delaware Association of Professional Engineers, we retain a Professional Engineer (P.E.) on staff to ensure and certify all design and engineering standards are met. In addition to our own product line, PolarStar also offers engineering and manufacturing services tailored to the airsoft industry.
