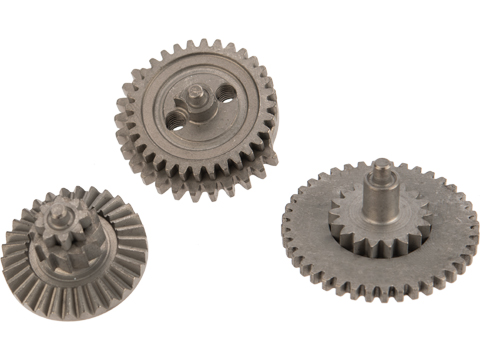

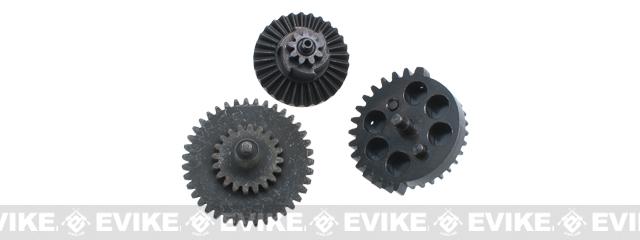

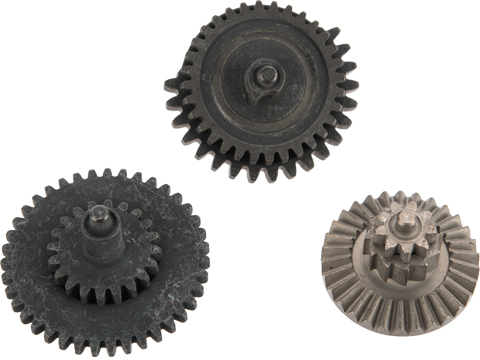

Siegetek Concepts Precision Airsoft AEG Gear Set
(Type: V2/3 / 20.81:1)

ID: 45582 (Gears-ST-GS-B)
SC GS B
Tap or click above to open expanded view
Youtube previewPlay Youtube video
Siegetek Concepts

$145.00

MAP ProtectedExempt From Coupons
The manufacturer of this product enforces a strict minimum advertised price (MAP) policy which excludes this product from any additional discount coupon codes. This item, however, may qualify for free shipping.
Type Options:
TypeV2.5 / 20.81:1
TypeV2.5 / 26.67:1
TypeV2/3 / 14.09:1
TypeV2/3 / 20.81:1
TypeV2/3 / 26.67:1
TypeV6/7 / 13.76:1
TypeV6/V7 / 20.81:1

Description

Videos

Reviews

Find in Store

Product Description

Features

  • Precisely calculated and accurately produced gear teeth in volute profiles provide maximum efficiency and durability.
  • CNC machined and case hardened sector gear offers increased durability over traditional powder metallurgy sector gears.
  • Enlarged sector gear release tooth provides enhanced strength to cope with the accumulated spring load at the end of piston cycles.
  • Shape-optimized power cut-off cam decreases cut-off lever reset time, which reduces the chance of trigger switch jam.
  • Increased gear thickness provides higher bearing surface and improves structural durability.
Siegetek Concepts is a US company that specializes in high precision premium mechanical gears for electric airsoft guns. In addition to superior designs and quality material selection, we heavily use CNC machining and minimize sintering for the production process. In fact, Siegetek Concepts is the only company in the industry that currently produces fully CNC machined nickel chromium molybdenum steel sector gears for unprecedented durability.

Material: Nickel chromium molybdenum steel

Manufacturer: Siegetek


Note: Precision shimming required. Professional installation recommended.

6 Customer Reviews

(Write a review)

by Jordan S. on 06/01/2021
"These gears are insane! They work great and I haven’t managed to even scratch them even with manny mistakes on my part just to list a few of my mistakes.
Had the motor to far away and the motors teeth were shredded but these gears were not even scratched! they just had to be cleaned
I had a plastic piston in at the start and the teeth got caught to early it destroyed the piston but no damage to the gears(my mistake I should have put in a stronger spring to get the piston back into place faster)
So what I have to say is the durability of these gears is crazy but you do need to be careful and set up your gearbox right or these gears will shred some parts. in all 10 of 10 on durability and 10 of 10 on ease of use (if you don’t count my stupid mistakes should have done some more research first)
by Marshall K. on 03/17/2020
"I have the 14.09:1 gears, sp140, and an ASG 28 TPA motor--instant response but plan to get 10:1 for even more response.

Pros: indestructible if shimmed right, many options of ratio on the market.

Cons: price
by Stephen D. on 06/23/2018
"I've had these gears in my JG SL-8 for almost a year now and they ARE the best gears I could get. By far. They do take some trial and error to get them shimmed right and running at optimum speed. I changed out the bushing to Modify 8mm ceramic bearings and have this coupled with a gt-45000 motor from 6mm shop. I get about 38 to 41 RPS depending on the charged of my 11.1 lipo.

I could not ask for a better setup. Warning though..If you use these, make sure you change the piston to a full steel tooth piston and dont skimp on other internal parts.

My sl-8 is now a full SAW and it is terrifying. I HIGHLY recommend any gear from seigetek. I'm pulling an m120 spring with a bore up kit and I get about 328 FPS with 0.25 BBs. Only issue I have had, is I put in a Gate Titan mosfet into a CNCed gearbox. The issue I had is the selector plate kept breaking on me. These are NOT for the faint of heart, but if you want a solid build that can scream, then these are for you.

Have an urgent question about this item? Contact us, our resident experts are standing by to answer your questions!
