Evike.com / Tenergy Version 2 Airsoft Smart Charger for 7.2V-12V NiMh & NiCd Battery Packs by Tenergy

Features

• Smart Charger (with automatic voltage detection) for NiMh RC and Airsoft battery packs 7.2V ~ 12V (6~10 cells)
• Universal for any NiMH /NiCd battery packs 7.2V - 12V (6-10 Cells pack); Worldwide usage with 120-240V AC
• Fast charger with current switch to select either, 1A and 2A. Delivers full charge within 1 - 2 hours
• Charging Current 0.9A for battery packs with capacity from 1100mAh-2200mAh. For 2000 mAh pack, charging time is 1 hour; Charging Current 2A for battery packs with capacity above 2000mAh. For 3000mAh pack, charging time is 1.5 hours
• Use pulse and negative pulse technology to avoid battery overheating during fast charging, optimized for battery pack's cycle life
• Red LED will be on during charging
• Automatically charging ending with negative delta V
• Safety protection fuse for over current, short circuit & reverse polarity protection

Please note: This Charger is for NiCd / NiMh type battery packs. NOT for Li-Polymer, Li-Mn, Li-Ion type battery packs.

Airsoft Smart Charger for 7.2V-12V NiMh & NiCd Battery Packs - Advanced Type
A smart charger is highly recommended for anyone still using a wall charger! A wall charger requires 4~5 hours of monitoring and you will never really know if a battery pack is fully charged, or over-charged. This smart charger will peak the battery charge, stop charging when full and provides a green/red led light indications so you never have to do any guess work. Discard that wall charger you received free with a Chinese AEG and never look back!
Highly recommended to have one if you are serious in advancing yourself in Airsoft!!

Operation Instruction

• Connect battery pack to output connector and plug AC power source.
• Make sure battery polarity is connected correctly (Red wire is positive)
• Charger will detect battery voltage automatically, Red LED will be on during charging
• When battery is fully charged, current will reduce to trickle charging at 50mA, Green LED will be on
• Battery will be charged at 0.9A or 1.8A constant current,
• Approximate Charging time is about 1.5hrs for 3000mAh battery,1hr for 1800mAh battery.
• The charger is designed for faster charging NiCd and NiMH battery packs from 6 to 12V for RC car/Air and Air soft gun.
• Don't charge battery packs with voltage less than 6V or voltage greater than 12V and capacity smaller than 1100mAh.
• Battery pack must be made by high drain current cell.
• Please contact your seller for instruction. Mfg is not responsible for any damage and consequent damage by Misuse.

Manufacturer: Tenergy

Specifications:

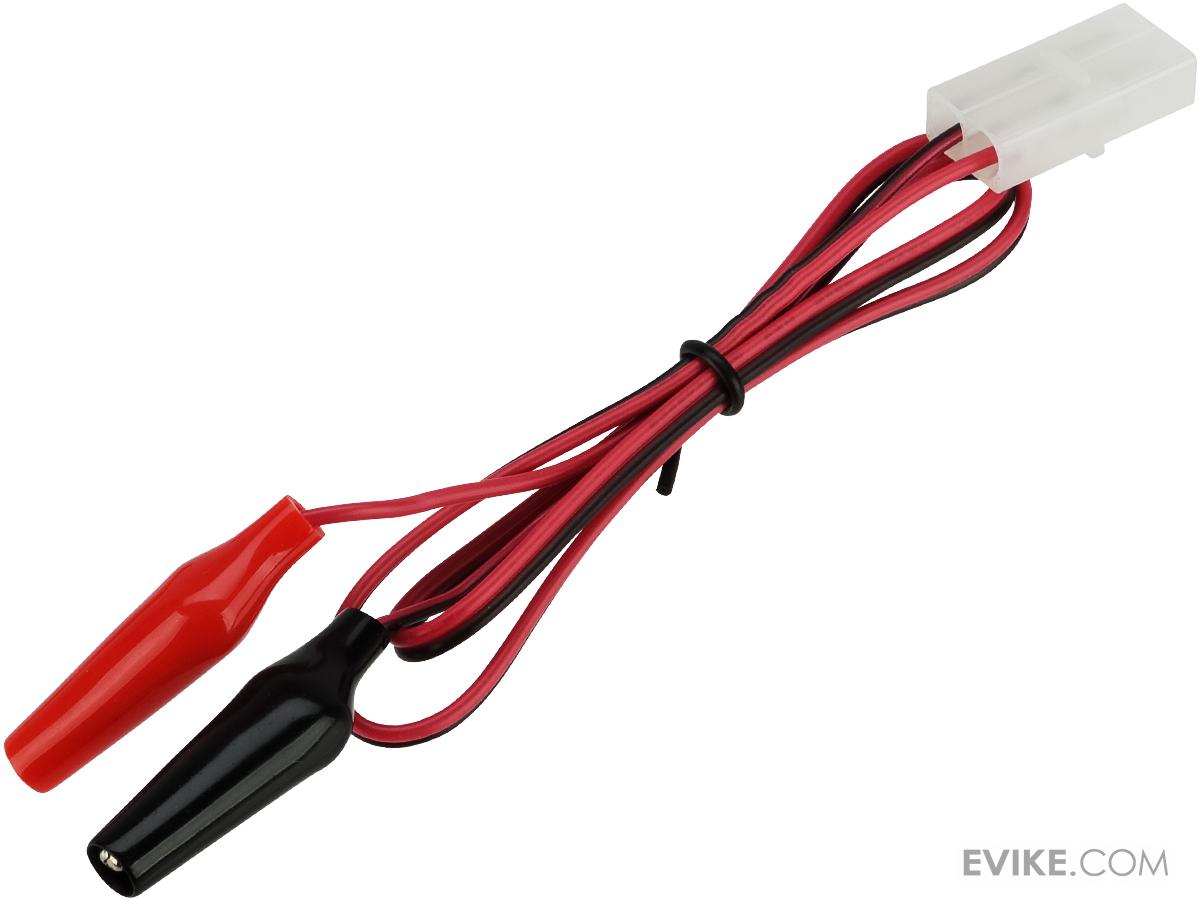

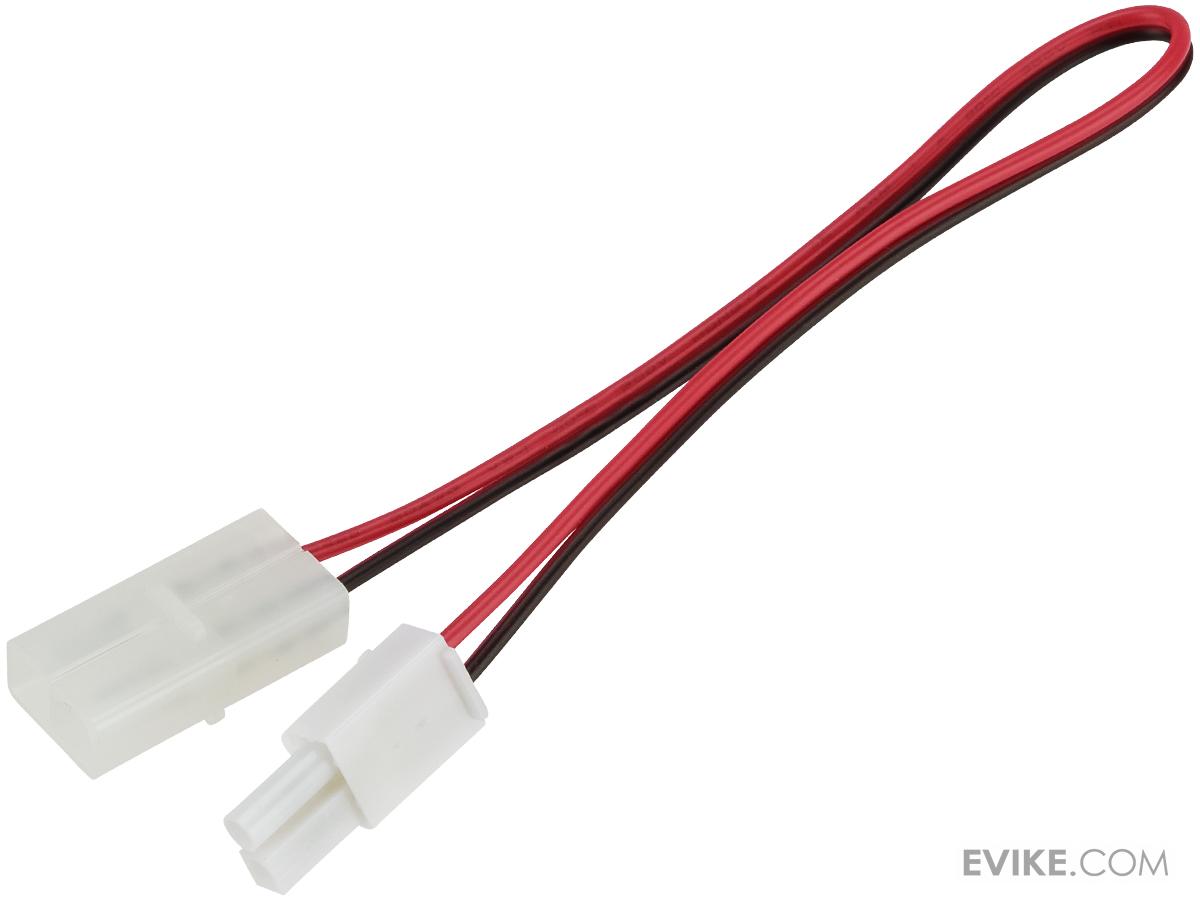

Package Includes: Charger, Standard Tamiya Female, Spare Fuse, Male Tamiya to Mini Female Adapter, Male Tamiya w/ Clip Adapter
Compatibility: For 6v-12v Ni-Mh / Ni-Cd Battery Pack 6-10pcs Battery
Input: Input: AC100 - 240V
Output: 6-12V 1A or 2A

Caution

• The charger is designed for indoor use only. Do not leave the charger unattended during charging.
• The Charger should be positioned horizontally and work in well ventilated condition, avoid water and keep away from flammable explosive goods.
• Don't cover the charger when charging, ambient temperature shall not be more than 40oC
• Do not leave batteries charging on flammable surfaces, wood surface or carpet.
• Cut off the power supply before connect or disconnect the charger with batteries.
• Don't try to disassemble the charger, High voltage inside, danger!
