Gate TITAN V2 Airsoft Drop-In Programmable MOSFET Module w/ USB-Link (Model: Rear Wired / Without Programming Card)

ID: 87286 (Mosfet-Gate-TTN2-AR)
TTN2-ASR2
GATE859188872868TTN2-ASR287286
Evike.com
4.7 stars, based on 6 reviews
Gate TITAN V2 Airsoft Drop-In Programmable MOSFET Module w/ USB-Link (Model: Rear Wired / Without Programming Card)
Hover or touch above to zoom
The TITAN is NOT compatible with the WARFET programming card
Youtube preview Product image 1 Product image 2 Product image 3 Product image 4 Product image 5 Product image 7 Product image 8
GATE

$150.06

MAP ProtectedExempt From Coupons
The manufacturer of this product enforces a strict minimum advertised price (MAP) policy which excludes this product from any additional discount coupon codes. This item, however, may qualify for free shipping.
Free ShippingNo Coupon Required
Free shipping within lower 48 US states, no coupon code needed!
Transform your AEG with a V2 gearbox into a computerized training weapon system and gain a unique tactical advantage thanks to extremely fast trigger response just like in a real gun. Give your AEG a new lease of life!

TITAN is our flagship Electronic Trigger Unit, taking your airsoft game to the next level. Make no compromises and utilize years of experience of many thousands of users around the world, proving TITAN to be the best choice for advanced and professional players. Gain a unique tactical advantage matching your skills, thanks to the reliable MOSFET with tons of functions such as Hair Trigger, BURST Mode, Active Brake, Binary Trigger, extremely fast Trigger Response, and other essentials.

One of the advantages of TITAN V2 are the 8 optical sensors. Unlike mechanical switches prone to faults, optical sensors are much more reliable. With an additional dongle you can adjust trigger sensitivity with military precision. If you need even more control, select one of the Nova Triggers adjustable speed triggers designed especially for TITAN V2.

What makes TITAN so special?:

  • 5 Optical trigger sensors enabling Hair Trigger
  • 3 Optical gear and selector sensors
  • Automatic Pre-Cocking
  • Replicates trigger response just like in a real gun
  • Configuration of all settings via the Bluetooth® dongle Blu-Link and GCS App for Android and iOS devices
  • Configuration of all settings via USB-Link and the GCS App for Android, Windows, and macOS devices
  • Sector gear sensor supporting most popular types of gears: DSG, SSG, 19-Tooth, and standard ones
  • Innovative optical sensors instead of mechanical switches prone to faults
  • Binary Trigger as one of the basic functions
  • Premium level functionality

SELECTOR MODES (Generation 2):

  • SAFE: Prevents your gun from firing, even if the safety lever is removed
  • SEMI: Allows you to fire one shot per one trigger pull
  • BINARY: Allows for firing one shot on the trigger pull and another shot upon release
  • BURST: Enables you to shoot a predetermined number of BBs, which is very useful in MilSims and when using low-caps; there are 2 BURST Modes available: Full a burst is shot in full, even if the trigger is released early, Interruptible the burst can be interrupted by releasing the trigger early
  • BURST/AUTO: Available in Full BURST Mode only; allows for extending a burst by any number of shots if you hold the trigger after the burst is shot, it switches to AUTO Mode
  • AUTO: Shots are fired as long as the trigger is pulled
  • SEMI RAMPING: If you pull the trigger very fast, it switches to AUTO Mode

PRE-COCKING (Generation 2.0):

  • AUTO Mode: The spring is automatically compressed after each shot
  • MANUAL Mode: Set the Pre-Cocking values yourself

ROF CONTROL:

  • ADAPTIVE: Set your desired rate of fire; the brake and delay will be automatically adjusted to achieve this value.
  • MANUAL PWM: Set braking power in percentages between shots
  • MANUAL DELAY: Set exact delay between shots in milliseconds
  • MANUAL PWM + DELAY: Set braking power and delay manually

Features:

  • Trigger Sensitivity Adjustment: Five optical trigger sensors allow you to control trigger sensitivity. You don't have to disassemble your AEG. Just use the Tactical Programming Card or connect to the GATE Control Station App via Blu-Link or USB-Link to adjust the trigger to your preferences and skill level.
  • Selector Modes (Generation 2): Two selector sensors allow you to take advantage of up to 343 selector mode variations, depending on firmware edition. The following modes are available for selection
  • 2-Stage Trigger: Enables you to set two different trigger sensitivities. Pulling the trigger slightly produces SEMI or BURST fire. Pulling it further produces BURST or AUTO fire. Select your sensitivity preferences for each stage.
  • Pre-Cocking (Generation 2.0): Victory in the game is often a matter of fractions of seconds. Thanks to Pre-Cocking, you gain a trigger reaction similar to a real gun. This allows for initial spring compression, which speeds up trigger response significantly.
  • Magazine: This feature allows for simulating magazines of lower capacity than actually used. Depending on Firmware Edition, allows you to set a simulation of magazine capacity from 1 BB up to 250 BBs. Even if you have a high-capacity magazine, this function lets you truly increase the realism of your game by imitating that your magazine is real-cap. Then, after a predetermined number of BBs is shot, you will have to wait for a previously defined amount of time before the next shot can be fired as if you were really replacing an empty magazine with a full one. In the case of ADVANCED and EXPERT Firmware, you can also set Low Ammo Warning.
  • Series Safety Limit: Enables to set a predefined number of BBs fired in a single series. It can be used as protection against trigger jams. In case of emergency, you can stop the series by switching the selector position.
  • Sniper Delay: It lets you set the delay between shots or series to simulate the delay from reload or recoil. You can set the delay to 0.2 s, 0.5 s, 1 s, 2 s or 3 s for ADVANCED firmware and 0.01-5 s for EXPERT firmware.
  • ROF Control: Enables the reduction of a gun's rate of fire. You can use stronger batteries and still have a ROF exactly as you like. Depending on firmware edition, you can choose between Adaptive, Manual PWM, Manual Delay, and Manual Delay + PWM
  • Smart Trigger: We know how vital fast trigger response during combat is. That's why we've developed the Smart Trigger function, which enables you to achieve faster trigger response. It works with the ROF Control System. During the first shot, the microprocessor sets the ROF control to 100%. After the first shot, it switches to a previously programmed value (e.g. 50%). As a consequence, the first shot is fired at a full ROF and subsequent shots at a reduced ROF. The best results can be achieved when using a battery with above standard voltage. For example, if you™re using a 7.4 V battery, you can replace it with a 11.1 V one. This way, you will achieve faster trigger response with the same rate of fire than with a standard battery.
  • Battery Protection Protection against battery over-discharge. Modern LiPo and LiFe batteries are very sensitive to over-discharge. If you do not want to damage the battery and you care about its service life, this protection is indispensable. The microprocessor is constantly monitoring battery voltage. When voltage drops to a critical level, it will not allow firing. The number of battery cells can be detected automatically.
  • Low Battery Warning: When battery voltage drops to a predefined level, the motor will vibrate at regular intervals. The user is warned 5 times before the battery is discharged. Each warning is communicated by 3 vibrations: HIGH MID HIGH.
  • Active Brake: Adjust the motor™s braking power according to your needs. Choose breaking value manually or set the Adaptive Active Brake. It will stop the piston in the front position, which eliminates unnecessary stresses, increasing the service life of the gearbox and its parts.
  • Equalizer: The drop-in module can be used with batteries up to and including 14.8V LI-PO. The minimum operating voltage is 3V and maximum is 17V.
  • Cycle Detection: Thanks to the gear sensor, TITAN precisely detects where the cycle should finish. Therefore, even the shortest trigger action produces at least one full cycle. The optical sector gear sensor counts each tooth of the gear, so it's possible to use all types of gears: Infinite Torque-up, DSG, SSG, 19-tooth, and standard ones. In EXPERT Firmware, you can select the cycle manually.
  • Notifications Settings: You can enable or disable information and warning vibrations, and make your gun stealthy.
  • Profiles: Allows to access and switch between 3 different profiles customized for different preferences on the battlefield. Available in EXPERT firmware.
  • The TITAN is NOT compatible with the WARFET programming card

Manufacturer: Gate

Specifications:

Supply Voltage Range: 3.75-17 V
Current Consumption: 24 mA
Low Power Mode: 280 uA
Dimensions: 47.4 x 28.7 x 13.5 mm
Weight: 27.6 g
Operating Temperature Range: -15 degrees C max. + 50 degrees C
Relative Humidity: Less than or equal to 80%

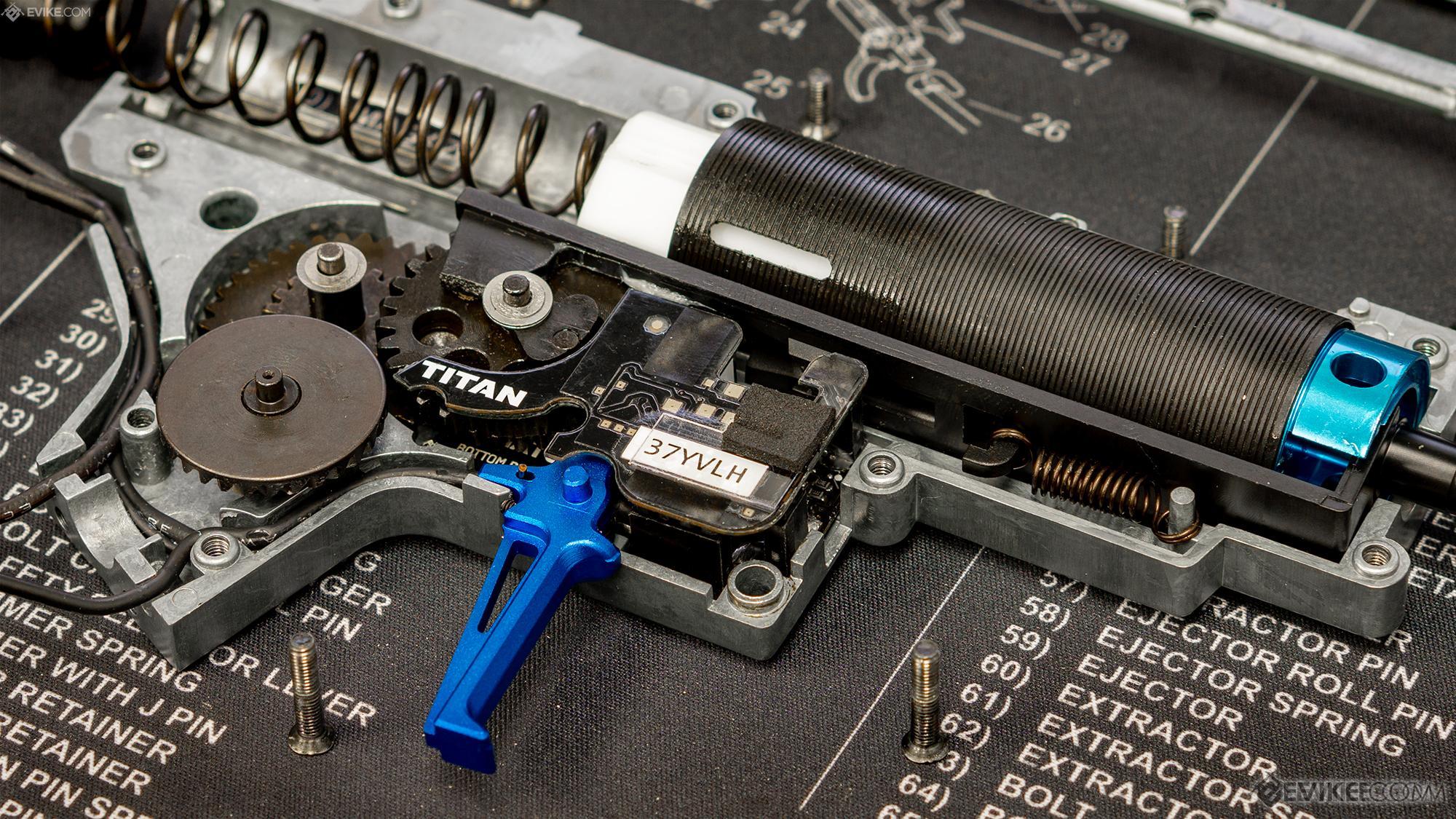

Compatibility: Fits in most version 2 gearboxes

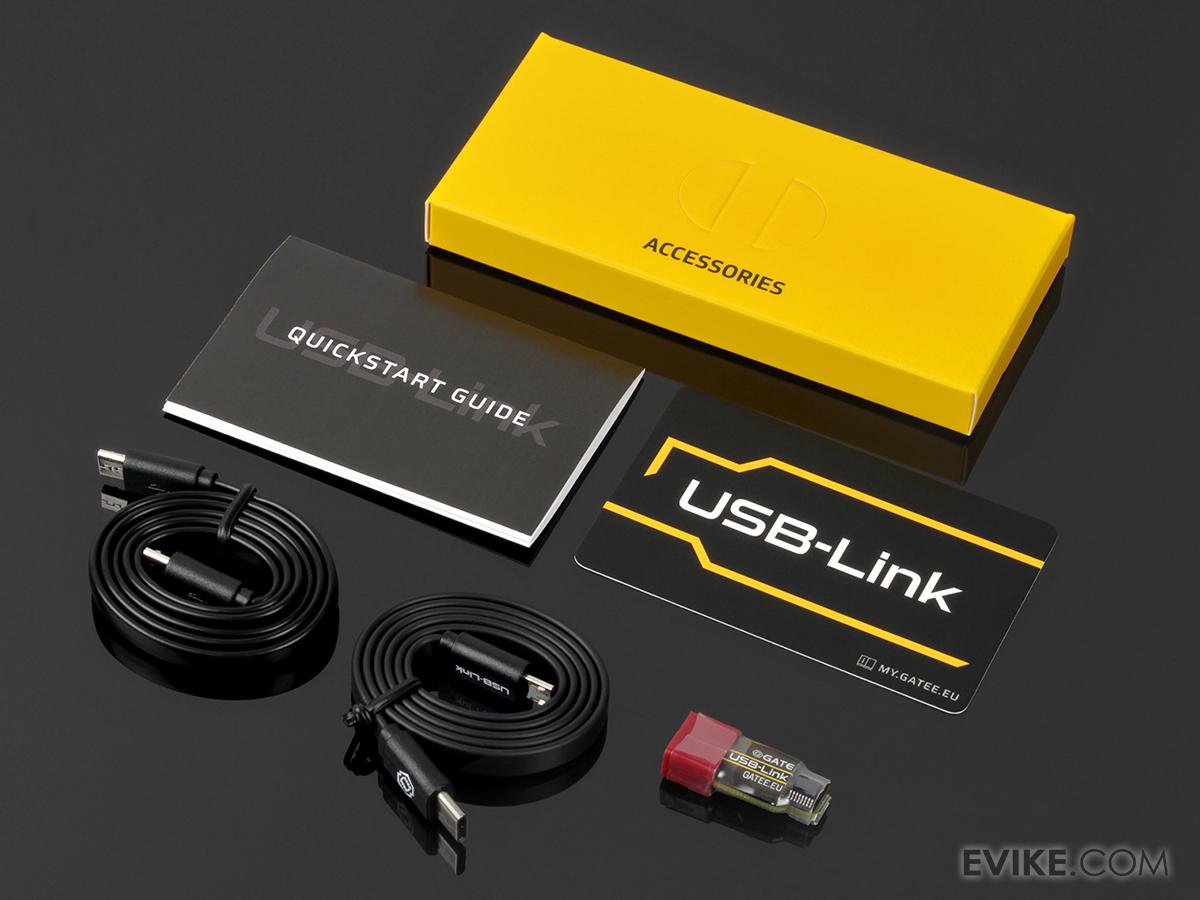

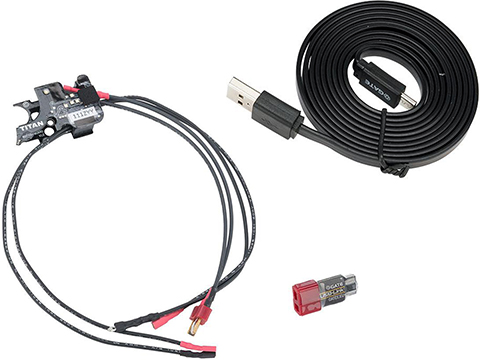

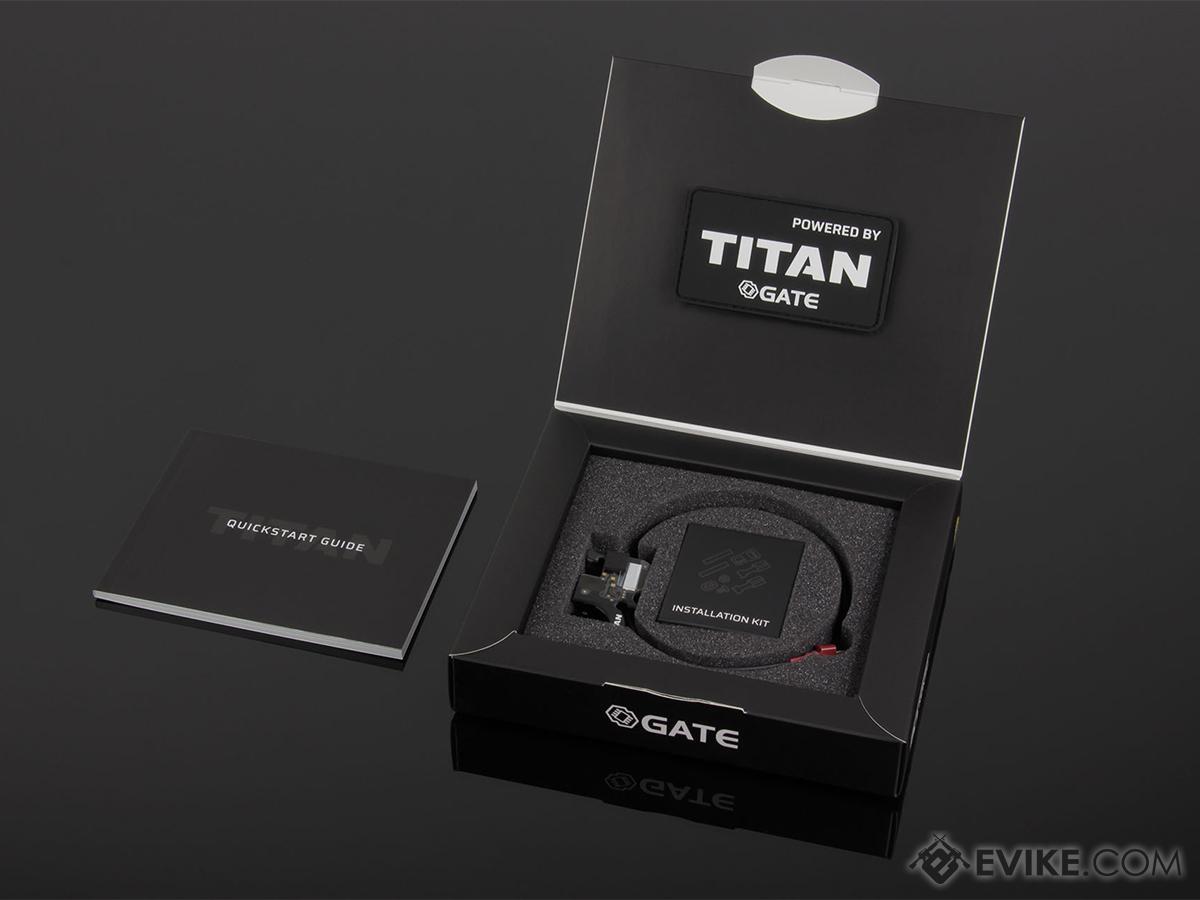

Kit includes: TITAN V2 Module with Advanced Firmware Edition, USB-Link, Installation Kit, Quickstart guides

About GATE

Since 2009, GATE company has been designing and producing the most innovative AEG Control Systems and MOSFETs. GATE has premises located in Cracow, Poland with products successfully entered global markets and are being sold in more than 30 countries.

6 Customer Reviews

(Write a review)

by Bryce D. on 01/12/2021
"This thing was a super easy install into my TK45c, which is might be harder for other guns as the tk was made for it, but even without tuning with the Gate Control Station is made a night and day difference in the performance of my gun and I would recommend this to anyone looking to upgrade their AEG in any way
by levi b. on 11/15/2020
"This thing as absolutely ridiculous. Thanks Evike!
by Matthew S. on 05/22/2020
"First of all, this thing is amazing and is worth the money IF you are serious about performance AND you are knowledgeable enough to install or at least maintain it (don't get this if you can't open your gearbox to clean to the sensors because having to pay a tech to do that is just silly). I had almost no trouble installing it in my Lancer Tactical Battlehawk carbine (their stock ETU kicked the bucket so I was left with the choice of buying standard trigger components and rewiring the whole gun or just upgrading to the Titan... totally worth it even if the Titan costs almost as much as the gun), the only issue was a few bits on the gearbox shell that had to be removed with a Dremel. (Protip, put masking tape over your bearings to stop metal shavings from getting in them, I had to blow them out with air and oil to be sure my shortsightedness wouldn't cause them to jam).

Some pros about the Titan itself:
The firmware is always being updated adding new features (but they could also introduce bugs so I like to wait a bit to update)
The pre-cock is hands down the most meaningful upgrade you can get on an AEG, the ability to get instant trigger response will allow you to win peaking battles consistently. It's practically pay to win.
The programable selector and trigger sensitivity is awesome, especially the burst/auto function. Being able to send 3rd bursts with just the tap of the trigger on auto is great for ensuring hits while conserving ammo.
The battery protection features and active break are great if you run lipos, but of course you can get those in much cheaper Gate MOSFETs if that's all you need.

Now the cons:
The app will only work on Android phones and computers, but they only include mini USB and type C cables so unless you have a PC with USB type C ports or an Android with OTG functionality you won't be able to connect to the Titan. I managed to set mine up with a friends phone and later plugged into my desktop computer's sole type C port, but I really would like Gate to include a type C to USB type A adaptor so standard USB ports can be used since most people have Iphones and older computers/laptops.
The Titan itself is also rather delicate, it's a very thin PCB and if you are not gentle I could see it easily breaking. The pins that connect the two halves are also a failure point so be careful, installing this thing is a bit like installing a PC motherboard: don't short it, don't break off components, and don't break pins.
The included wiring is rather meh, I was hoping it'd be 14awg silicone wire but it's much thinner plastic-sheathed wire. The deans plug is fine, but I would've liked to see additional reinforcement for the solder points. The motor connectors on mine were good though, they bent without breaking and connect tightly.

Overall the cons are more just things to be aware of or things which Gate should consider improving in the future. This is a solid product and I would totally recommend it if it fits your budget and desires.
