Features Machined from a solid aircraft aluminum block with tight tolerances to provide better accuracy, consistency, and durability Precision rotary dial design for fine hopup adjustments Re-engineered the hopup levers and concave nubs to work best with R-hop, Flat-Hop and Standard-Hop to keep the BBs shooting straight and accurate on every single shot Accepted the nozzle length from 21.00mm to 21.25mm Fully compatible with most aftermarket soft and hard rubber bucking without losing FPS or dropping BBs Equipped with a new CNC Delrin Locking C-Clip design to hold barrel tight without wobbling and twisting, 3 compression springs on top, at bottom and in center of housing to ensure the hopup unit is exactly centered, straight and air tight Compatible with any V2 gear boxes with 11mm or 11.5mm bore Specially designed with BB Latching System to prevent dropping BBs after removing the magazine, Manually opened to release BBs from inside hopup chamber by hand

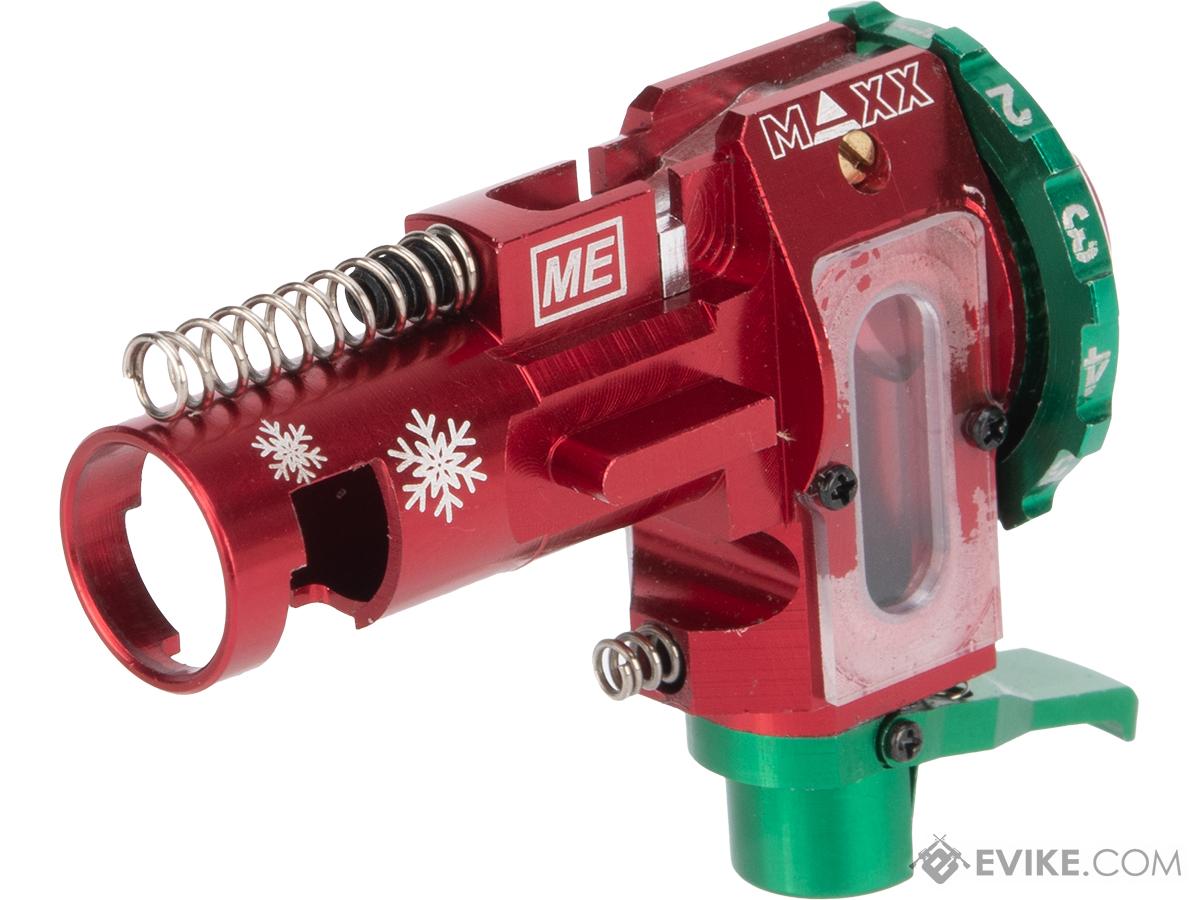

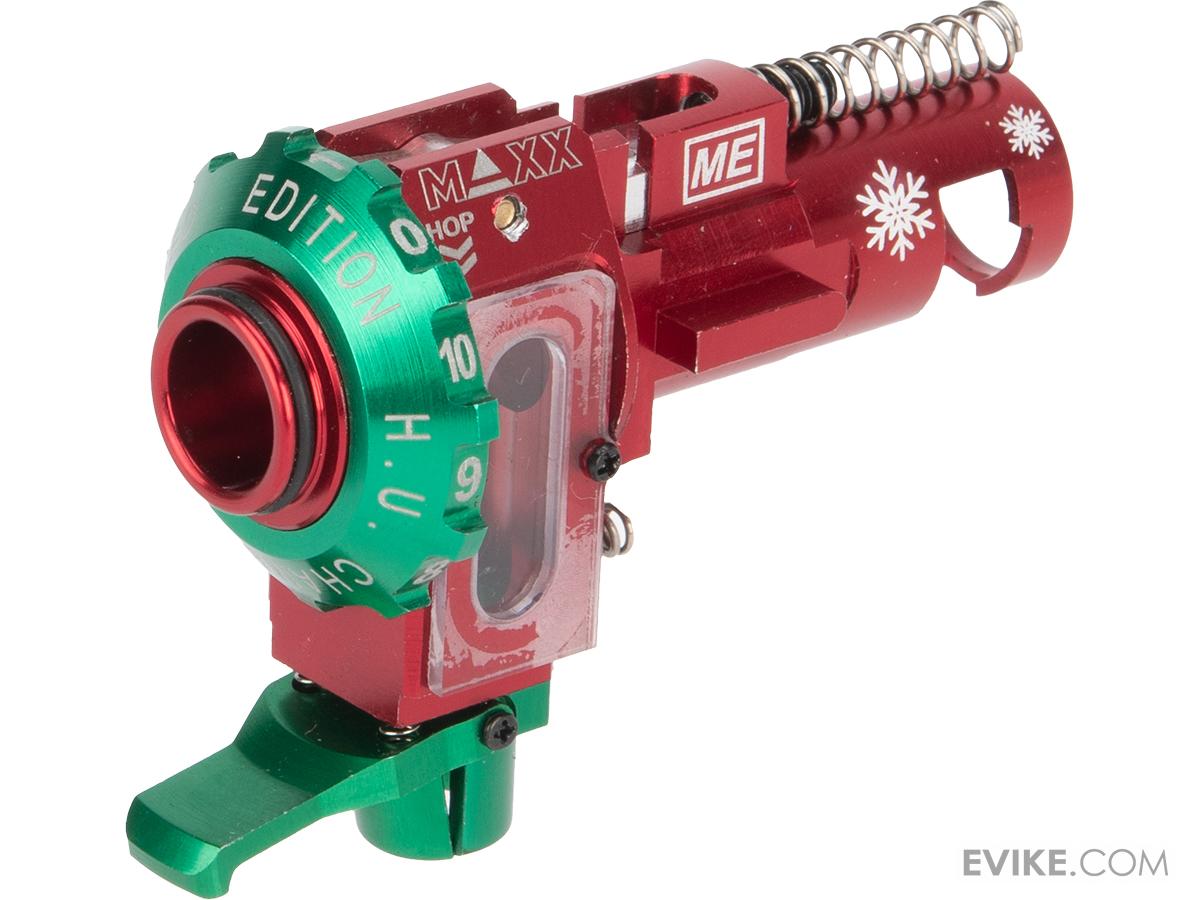

CNC Aluminum Hopup Chamber ME Pro (with BB Latching System) unit is precisely made to improve accuracy and ensure consistent air seal for Tokyo Marui (include KRYTAC, except KWA) M4/M16 Standard AEG series.
The Hopup Chamber ME unit has a precision rotary dial design for fine hopup adjustments, also re-engineered the hopup levers and concave nubs to work best with R-hop, Flat-Hop and Standard-Hop to keep the BBs shooting straight and accurate on every single shot.
The Hopup Chamber ME unit is designed to accept the nozzle length from 21.00mm to 21.25mm, and fully compatible with most aftermarket soft and hard rubber bucking without losing FPS or dropping BBs.
The Hopup Chamber ME Housing is equipped with a new CNC Delrin Locking C-Clip design to hold barrel tight without wobbling and twisting, and 3 compression springs on top, at bottom and in center of housing to ensure the hopup unit is exactly centered, straight and air tight at all times when adapted to any V2 gear boxes with 11mm or 11.5mm inner bore.
More than that, the Hopup Chamber ME Pro unit is specially designed with BB Latching System to prevent dropping BBs after removing the magazine. The Latching System can be also manually opened to release BBs from inside hopup chamber by hand.
***Test results: FPS might be increased by 5% to 10%. Please check your FPS!

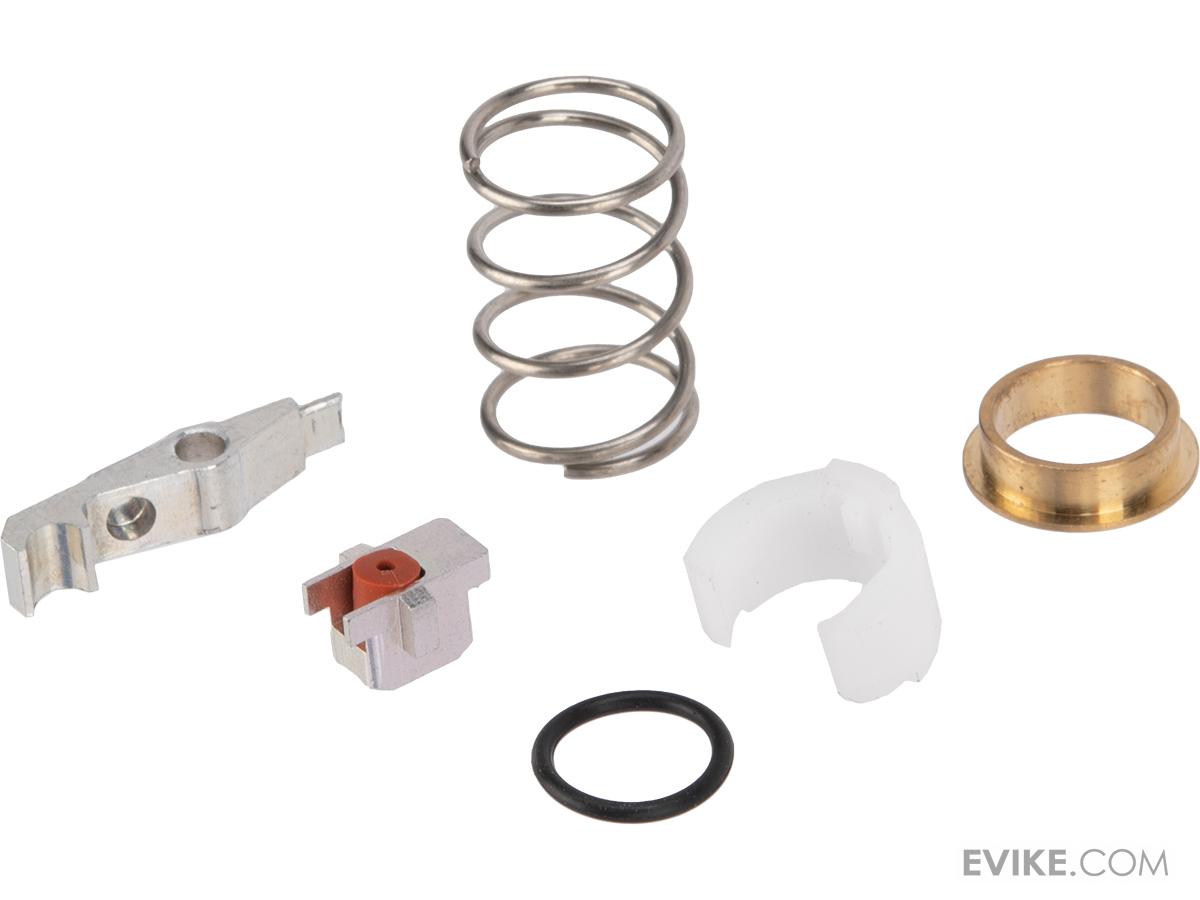

Hopup Kit Includes: 1 x CNC Aluminum Hopup Chamber ME Pro (with BB Latching System) unit 2 x Strong Clear Vinyl Cover 1 x CNC Aluminum Standard-Hop Arm 1 x CNC Aluminum R-Hop Arm 1 x Silicone Rubber Standard-Hop Nub Damper 1 x Silicone Rubber R-Hop Nub Damper 1 x CNC Aluminum 5mm length Precision R-Hop Nub 1 x CNC Aluminum 6mm length Precision R-Hop Nub 1 x CNC Brass Threaded Slot Pin 1 x CNC Delrin Locking C-Clip 1 x CNC Barrel Brass Spacer 1 x Brass Spacer Holder Oring 3 x Steel Compression Spring Manufacturer: Maxx Model Specifications: Overall Length:
Hub Outer Diameter (to fit into Outer Barrel):
Hub Inner Diameter (to fit Nozzle):
Feeder Outer Diameter (to fit magazine):
Feeder Length (to fit magazine):
For most Tokyo Marui (include KRYTAC, except KWA) M4/M16 standard AEG version 2 gear box
About Maxx Model Products
Maxx Model Products design, manufacture, and make high quality parts for Airsoft products.
(Write a review) "These hopup units are awsome! By far the best you can get, I've bought 2 so far. I run one the R-hop set up with an Elvish tac R hop barrel from ebay, and the range is insane! The other one I used the normal arm with a flat hop nub and bucking from Modify, and the range is great as well, really can't tell the difference, but I have not shot any bbs heavier than .32. The unit comes with the R-hop set up pre-installed, and its pretty easy to switch it over to a normal or flat hop, just be careful not to lose the little spring under the arm. I'm also using the Maxx aluminum nozzle, although it did not want to work in my EMG Falkor, need a shorter nozzle.
The craftsmanship and design on these just can't be beat, totally worth the expensive price tag! If you want top performance out of your AEG then buy this hopup now! "Works perfectly on my mk2 m crb and srb , get the Me version for krytacs "This review is for the MI (ICS) flavor chamber, and anyone concerned with nozzle sizes.
MAXX says you need a 21mm nozzle, which is not correct. I know for a fact because I bought the MAXX 21mm nozzle, and in three different ICS M4s the 21mm nozzle does not fit.
I realize the stock ICS nozzle is 21mm, I don't know what to tell you.
I'm using SHS AK long nozzles, which measure 19.75mm, and they feed well with great compression. Read More Reviews Write a Review
