AGM Global Vision Voyage LRF Fusion Thermal Imaging & CMOS Binocular w/ Laser Range Finder (Model: TB50-384)

ID: 116891 (NVG-AGM-7142410005306V531)
7142410005306V531

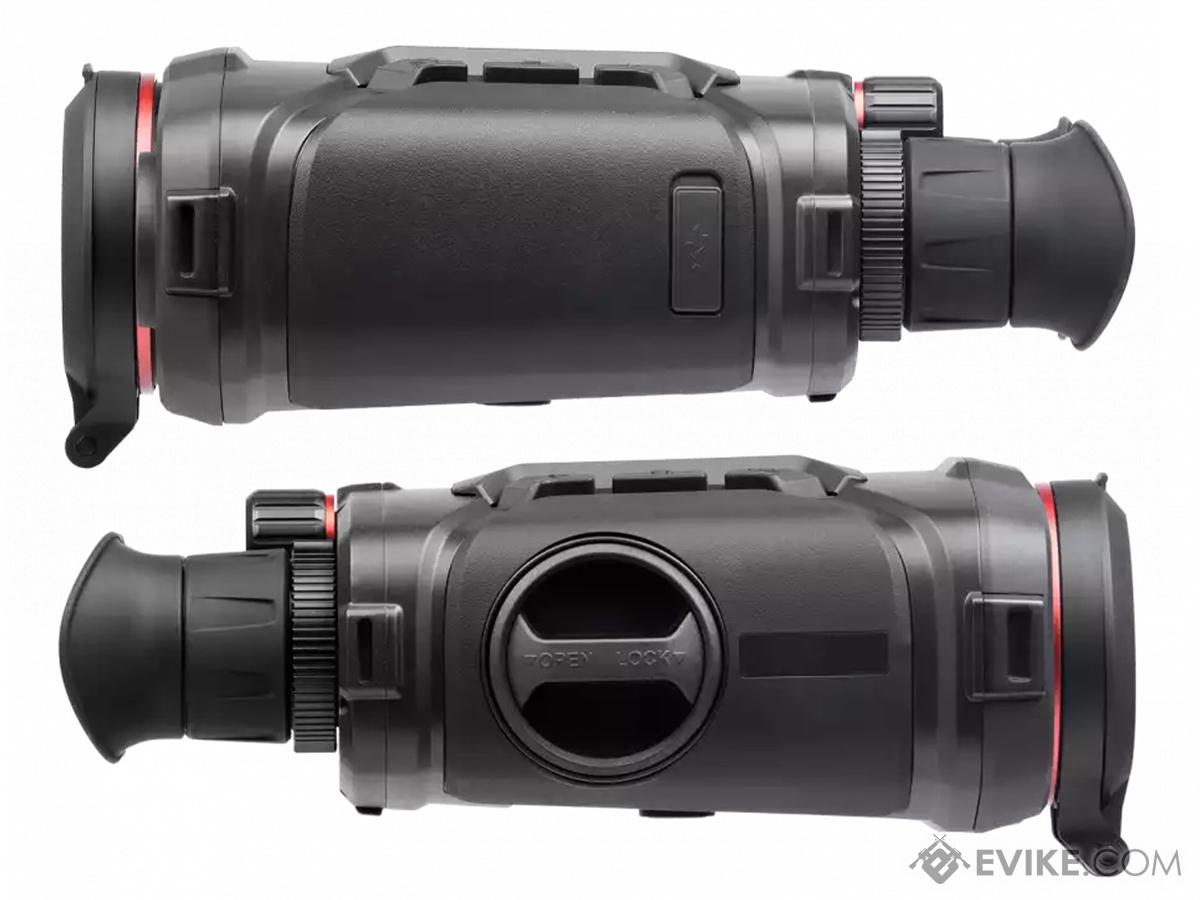

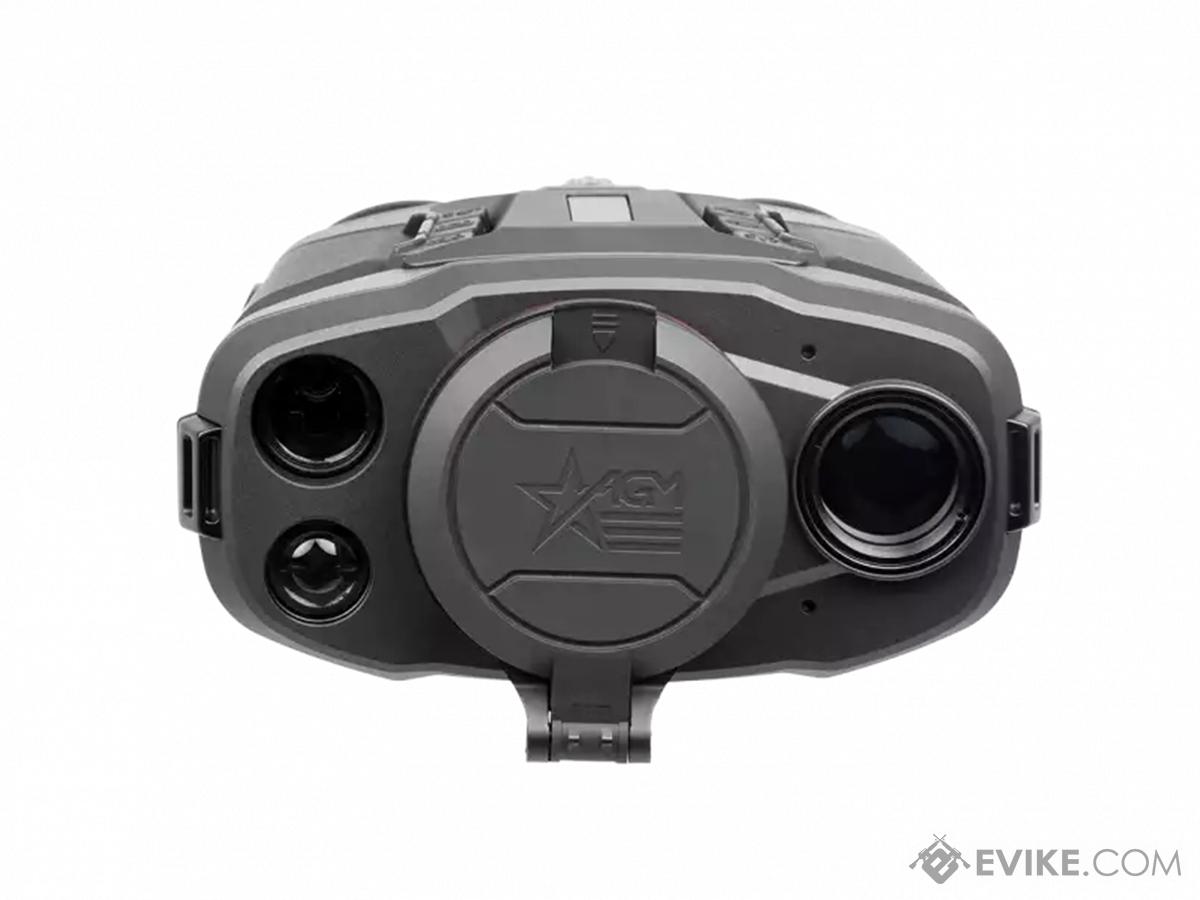

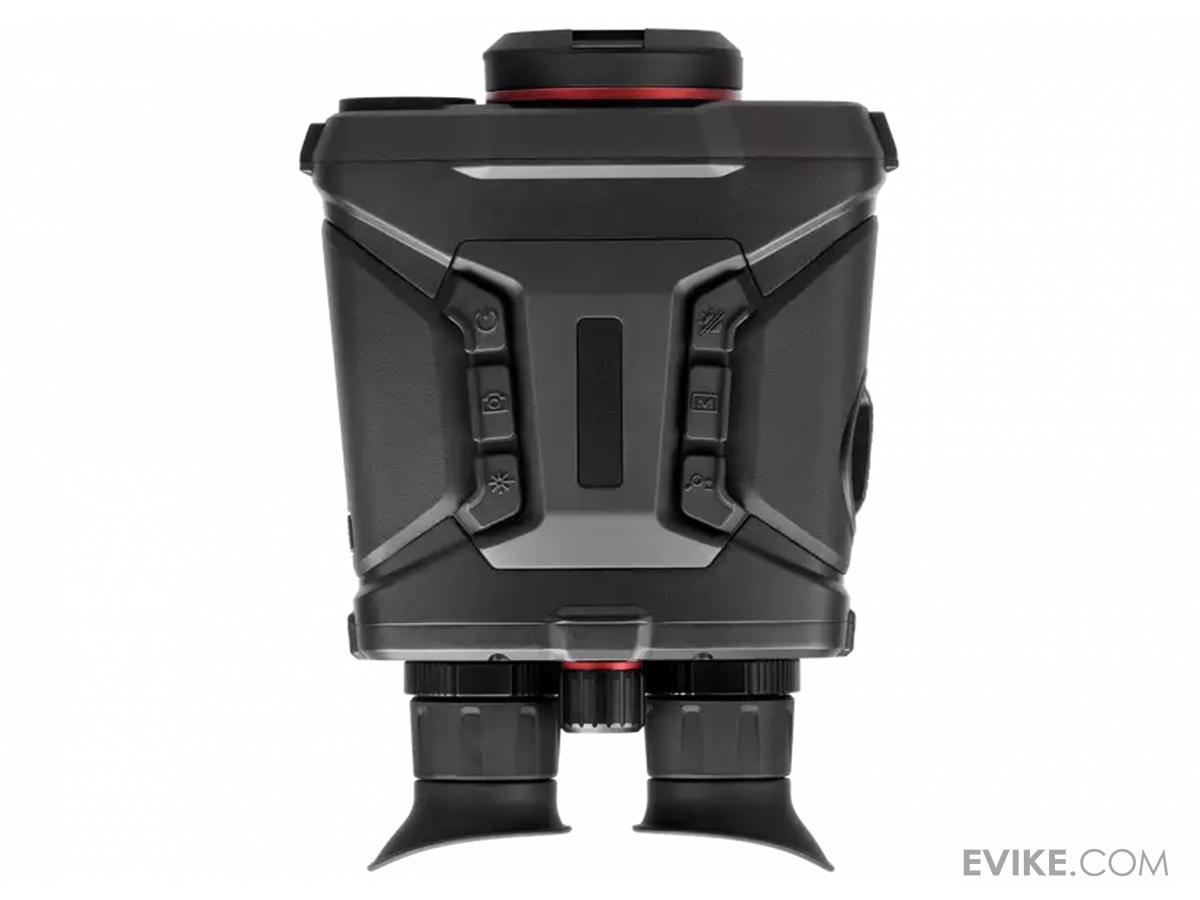

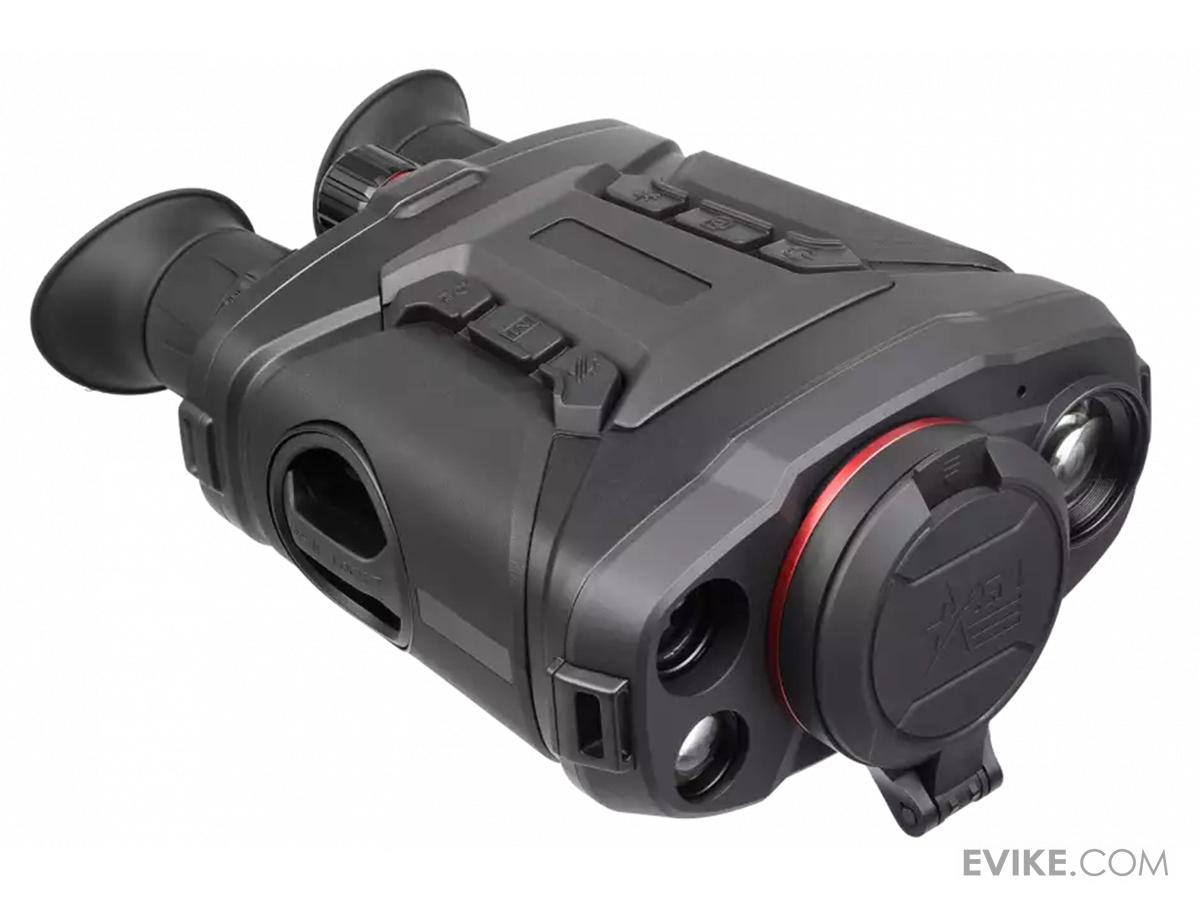

AGM Global Vision Voyage LRF Fusion Thermal Imaging & CMOS Binocular w/ Laser Range Finder (Model: TB50-384)
Hover or touch above to zoom
Helmet, rifle and other accessories not included
Youtube preview Product image 1 Product image 2 Product image 3 Product image 4 Product image 5
AGM Global Vision

$3,995.00

MAP ProtectedExempt From Coupons
The manufacturer of this product enforces a strict minimum advertised price (MAP) policy which excludes this product from any additional discount coupon codes. This item, however, may qualify for free shipping.
Non-Export ItemShips Inside USA Only
This is an export-restricted item and can only be shipped within the United States. No international delivery for these items.
Non-Express ItemGround Shipping Only
This is an express-restricted item and can only be shipped via ground shipping methods.
Free ShippingNo Coupon Required
Free shipping within lower 48 US states, no coupon code needed!

Features

  • Dual-spectrum image fusion and object highlight (detail enhancement and target recognition)
  • Thermal resolution: 384x288, Optical resolution: 2560x1440
  • NETD less than 20 mK (25C, F#=1.0)
  • Digital Detail Enhancement (DDE)
  • Dynamic Noise Reduction (3D DNR)
  • Adaptive Automatic Gain Control (AGC)
  • Eye-safe laser rangefinder (up to 1,000 m distance detection with measuring accuracy 1 m)
  • GPS module, digital magnetic compass and inclination sensor
  • Up to 8 hours continuous operation
  • Waterproof, IP67
  • Limited 5 year warranty (through manufacturer)
The AGM Voyage TB50-384 Fusion Thermal & Digital Day/Night Vision binocular is some of the most technologically advanced and feature-packed optics in the world. The primary engine behind this binocular lies within the main thermal viewing channel, with its incredible new 12 micron 384x288 thermal detector. This new AGM thermal sensor possesses an industry leading sensitivity rating of sub-20mK (millikelvin). This sensor from AGM will ensure that not only are human-sized heat signatures detectable at up to 1.6 miles (2600m), but also that foliage and other background imagery will be crisp and detailed in closer distances/ranges. Unlike other thermal binoculars on the market, the Voyage also come outfitted with a digital night vision channel as well, which is great for aiding in recognition of targets after the thermal channel has detected a potential target. The built-in 1000m Laser Rangefinder simply takes the Voyage to another level, and this is without even mentioning its 64GB of internal memory and Wi-Fi compatibility.

The potential uses with the Voyage fusion binoculars seem almost as endless as its features, which include, but are not limited to: high-sensitivity sub-20mK thermal detector, 50mm Germanium lens with a 0.9 aperture, 2560x1440 ultra-low light CMOS sensor, various viewing modes, including fusion imaging and multiple color palettes, 5.5X base magnification with 16X digital zoom, picture-in-picture mode, built-in laser rangefinder, GPS module, inclination sensor, Digital Detail Enhancement (DDE), up to 8 hours of battery life on three removable, rechargeable 18650 batteries, USB Type-C port for external power capabilities, IP67 waterproof rating, included hard carrying case, neck strap and of course AGM's 5 Year Transferable Warranty!

Manufacturer: AGM Global Vision

Specifications:

Magnification: 5.5x - 88x
Interpapillary Distance: 60mm to 70mm
Digital Zoom: 1x, 2x, 4x, 8x, 16x
Detection Range: 2,600m/yd (6' object)
Flat Field Correction (FFC): 905nm (Class 1)
Palettes: Optical, White Hot Thermal, Black Hot Thermal, Red Hot Thermal, Image Fusion
Diopter Adjustment: -5 to +3 dpt
Battery Type: Three 18650 batteries
Image Sensor: Vanadium Oxide Uncooled Focal Plane Array
Resolution: 384 x 288
Pixel Pitch: 12µm
Response Waveband: 8µm to 14µm
NETD: Less than 20mk (@25°C), F#=1.0
Field of View: 5.3° x 4.0°
Aperture: F0.9
Lens (Focal Length): Less than 20mk (@25°C), F#=1.0
Monitor: 0.39-inch, OLED, 1024x768
Storage: Built-in memory module (64 GB)
Snapshot: JPEG, 1600x1200
Battery Operating Time: Up to 8 hours
Battery Capacity Display: Yes
Protection Level: IP67
Mounting: 1/4-20 UNC
Cable Output: USB Type-C port
Dimension (LxWxH): 217 x 155 x 87mm (8.5 x 6.1 x 3.5 in)
Weight: 1.12kg ( 2.5 lb)
Storage temperature range: -40°C to 70°C (-40°F to 158°F)
Picture In Picture Mode (PIP): Yes
Video Recording: MP4, 1600x1200
Measuring Distance of Laser Rangefinder: Max. 1,000m
Laser Wavelength: 905nm (Class 1)
Eye Relief: 15mm
External Power Supply: DC 5V/2A, Max.10W, Type-C port
Package Includes: Battery Charger, Power Cable, Lens Cloth, Two Wrist Straps, Neck Strap, Six 18650 Batteries, Power Adapter, User Manual, Carrying Case

Export Restrictions: Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.

NOTE: Specifications are subject to change without notice.

About AGM Global Vision

Based in Springerville, Arizona, USA, AGM Global Vision designs, develops, and distributes a wide range of professional-grade night vision and thermal rifle scopes, clip-on systems, spotting scopes, binoculars, monoculars, goggles, multispectral lasers, infrared illumination devices, and more.
