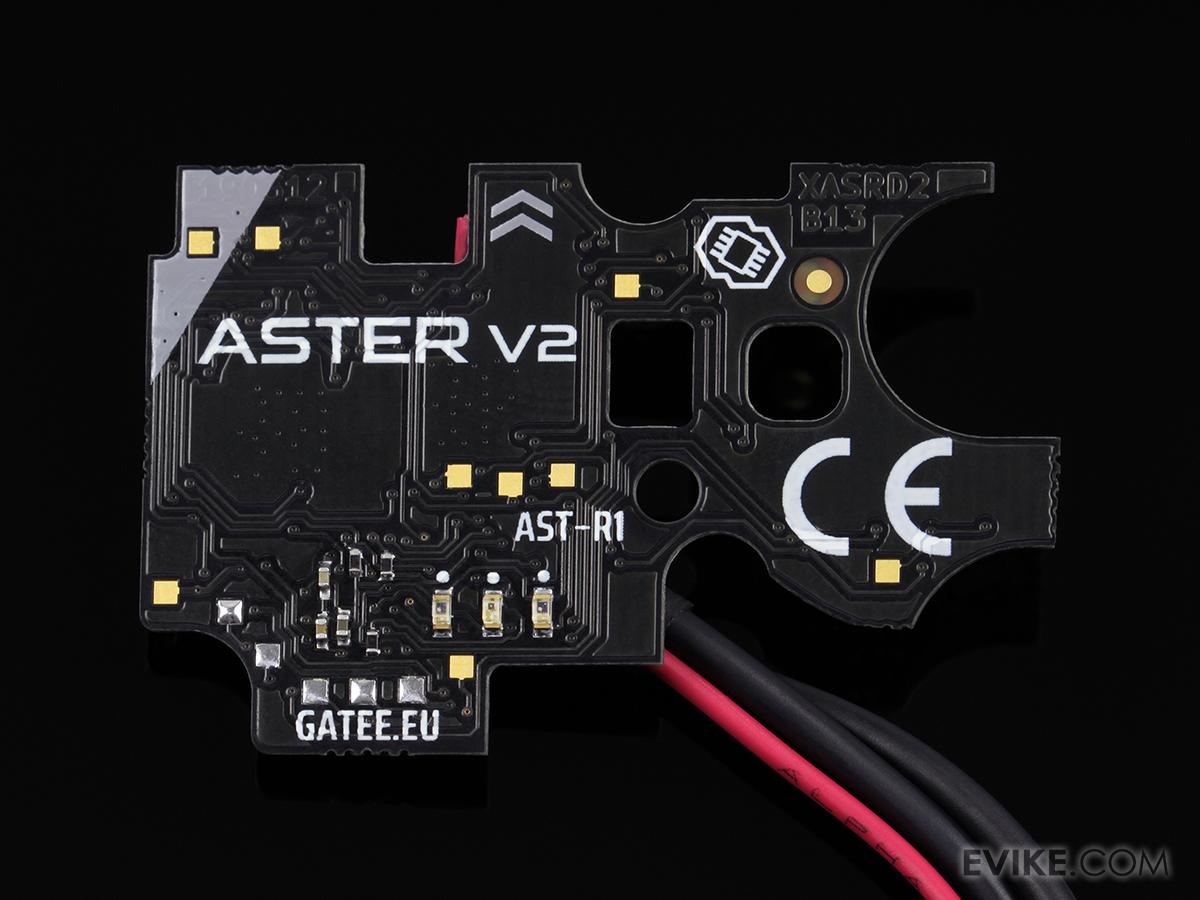

GATE ASTER SE Airsoft Drop-In Programmable MOSFET Module (Model: V2 Basic / Front Wired / Quantum Trigger)

Features

• App-based control station gives you total control for your AEG
• Able to adjust more features through your trigger than previous models without the need of a USBLink or BluLink
• Conformal coating (Military Specification MIL-V-173C) resistance to atmospheric conditions

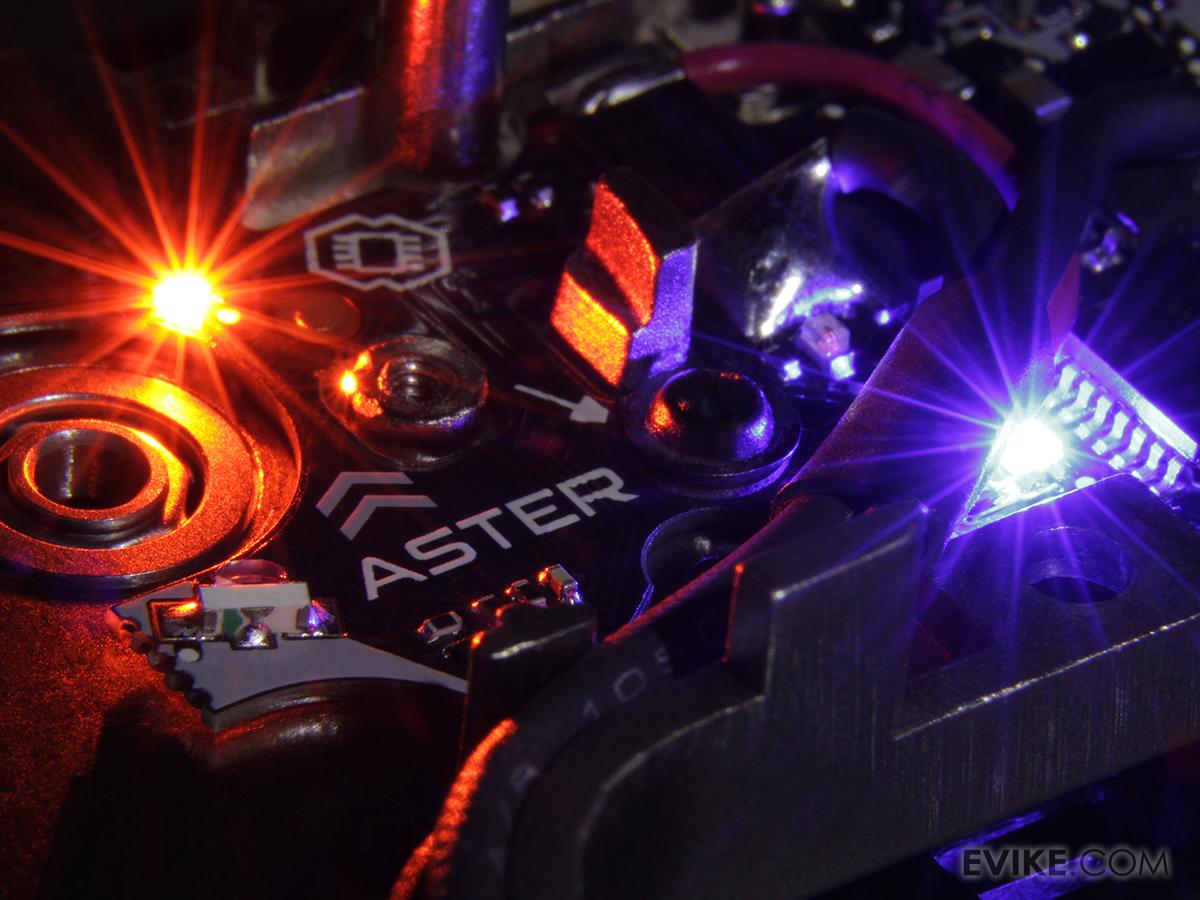

• Optical sensors for detecting gear cam, trigger and selector position
• Programming via trigger allows configuration of basic functions
• Multiple adjustable options include; fire selector modes, pre-cocking, ROF control, low battery warning, active braking, trigger sensitivity
• Programable Safe, semi, auto and binary modes.
• Brushless motor compatible
• Noise-resistant trigger detection
• Sensor that supports Infinite Torque-up, DSG, SSG, 19-tooth and standard gears
• ASTER is resistant to reverse polarity

ASTER V2 SE raises the price-performance ratio including in the set Quantum Trigger and new functions programmable via trigger. Now, out-of-the-box, you can set sensitivity from ludicrous touch™ through hair™ to full movement. Improved programming via trigger gives you new settings like automatic pre-cocking (LOW, MID, HIGH), trigger sensitivity adjustment, active brake settings with top-class adaptive mode and new SAFE - SEMI - BINARY selector mode. Calibration, DTC codes - all available just via trigger and selector movement. Additionally, you get new noise-resistant trigger detection algorithm. ASTER's smart fuse protects your AEG™s battery, motor and the controller, even in case of reverse battery connection. This feature, along with the optical sensors, makes ASTER SE one of the most durable ETU on the market.

ASTER is not just regular ETU/EFCS mosfet. It is the complex system that turns your AEG into future-proof advanced training system. You choose how to configure ASTER simply via trigger or through USB-Link / Blu-Link and our advanced GCS App. You can ask your technician or borrow from friend very popular USB-Link or Blu-Link and use GCS app to update ASTERs firmware, carry out diagnostics or change settings in a very convenient way. If you like it you can get your own Blu-Link and use Smartwatch app, giving you real-time data to reinforce your tactical decisions.

Manufacturer: GATE

Specifications:

Dimensions: 43.8 mm x 28.7 mm x 7.2 mm
Weight: 22.25g
Compatibility: Fits most Version 2 Airsoft AEG gearboxes and T238 brushless motors
Wiring Direction: Front Wired
Current Consumption: 23 mA
Low Power Mode:288 µA
Operating Temperature Range: min. -15°C max. + 50°C
Relative Humidity: ≤ 80%
Maximum Operating Voltage: 12.9 V (LiPO 11.1 V)
Minimum Operating Voltage: 3.75 V

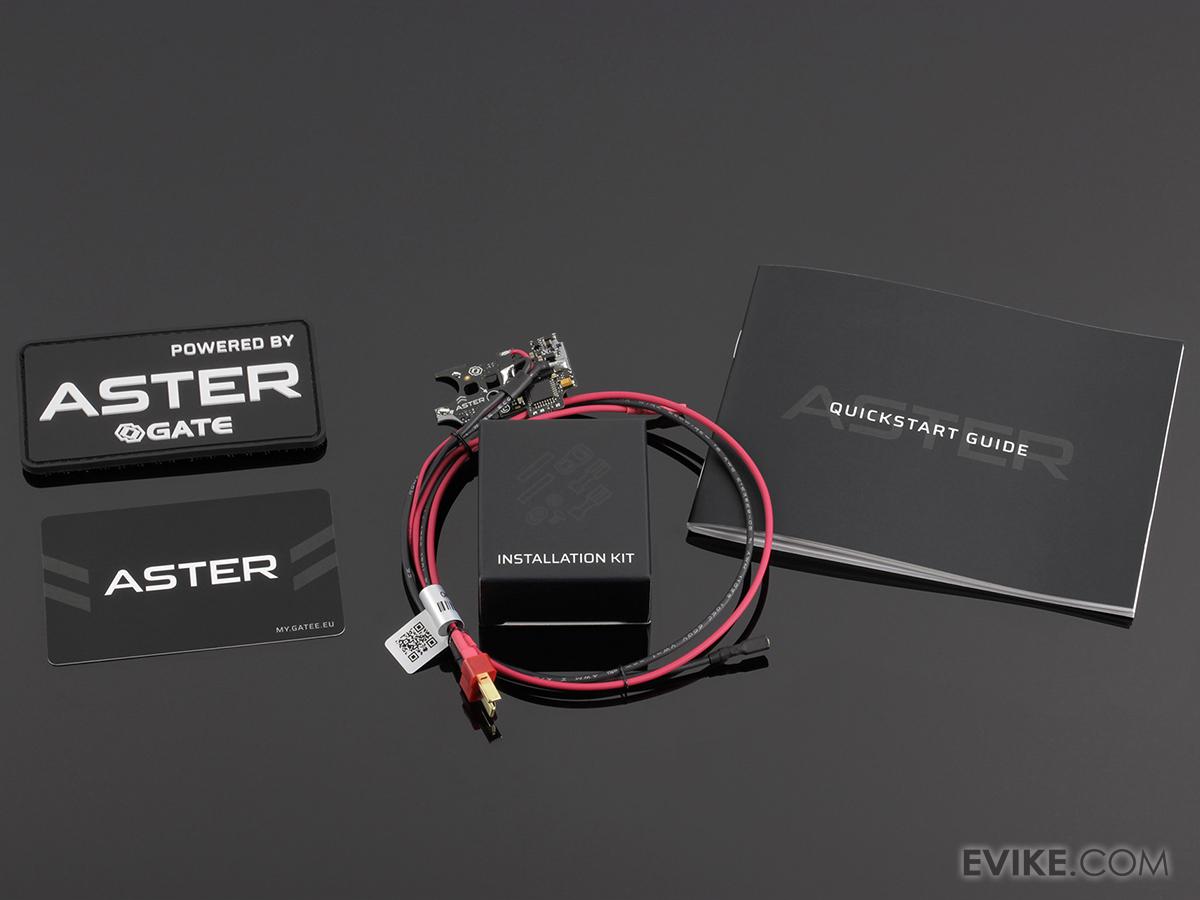

Package Includes: ASTER Module, "Programming via Trigger" Card, Quantum Trigger (Random model and color), Aster Patch, Installation Kit, Quickstart Guide

How to update firmware:
-plug Aster battery connector into USBlink or BluLink and connect it to a Cell phone or PC with the GCS app installed
-Go to Status panel and select the most current firmware version
-if not already installed, click "update". this process should take ~2 min to install. all of your previous settings will be saved

About GATE

Since 2009, GATE company has been designing and producing the most innovative AEG Control Systems and MOSFETs. GATE has premises located in Cracow, Poland with products successfully entered global markets and are being sold in more than 30 countries.
