Angel Custom Alpha Pro Zero Trigger System For VSR-10 Airsoft Bolt Action Sniper Rifles

$145.00 $105.00

Model: AC-VSR-KIT04
Location: D4-124

4 Customer Reviews

by Austin R. on 03/31/2014
"The cylinder head threads are too long; it bottomed out on the cylinder threads, so I had to use my stock CH. On a positive note, the polymer bushings on the piston are great and removed the tough bolt push I was having with my old Angel piston.
by craig g. on 01/13/2014
"My Ctac vsr-10 developed the slam fire we all know and hate. So this unit looked to be a decent choice as I wanted to upgrade my piston as well. I still don't think 5 days to pick an order is acceptable, but what have you.
This unit came shipped with everything I needed to back into my vsr-10. Took apart my rifle, removed the old trigger and the Alpha fit directly on without any issues what so ever. When it was time to drop in the piston I did have to sand away a decent amount to the delrin bushings to get the piston to slide freely on my cylinder otherwise the piston would stick. Once sanded it went together perfectly. Put it all back together and presto, time ti try it out.
I am using a 130 sprint and was getting about 420-430 stock, with the new piston and same spring I'm now getting about 440-450. The cylinder head seat into my bucking better and I guess thats where the increase in fps comes from.
My only complaint is the trigger itself. It's really sharp, at least this one is, it tore through my gloves after 40 or so rounds. I've since dremeled to to a smoother profile. I would have to say, other than the unit costing 50% of what my gun cost it's a good upgrade and a must have over any stock trigger for a vsr-10.
by Jesse L. on 10/14/2013
"Good trigger, does what it is supposed to. I'm currently running mine on a m190 spring.

90 degree trigger
comes with matching piston and cylinder head

Spring guide stopper needed modification
Extremely stiff trigger pull
Piston sear does not always catch

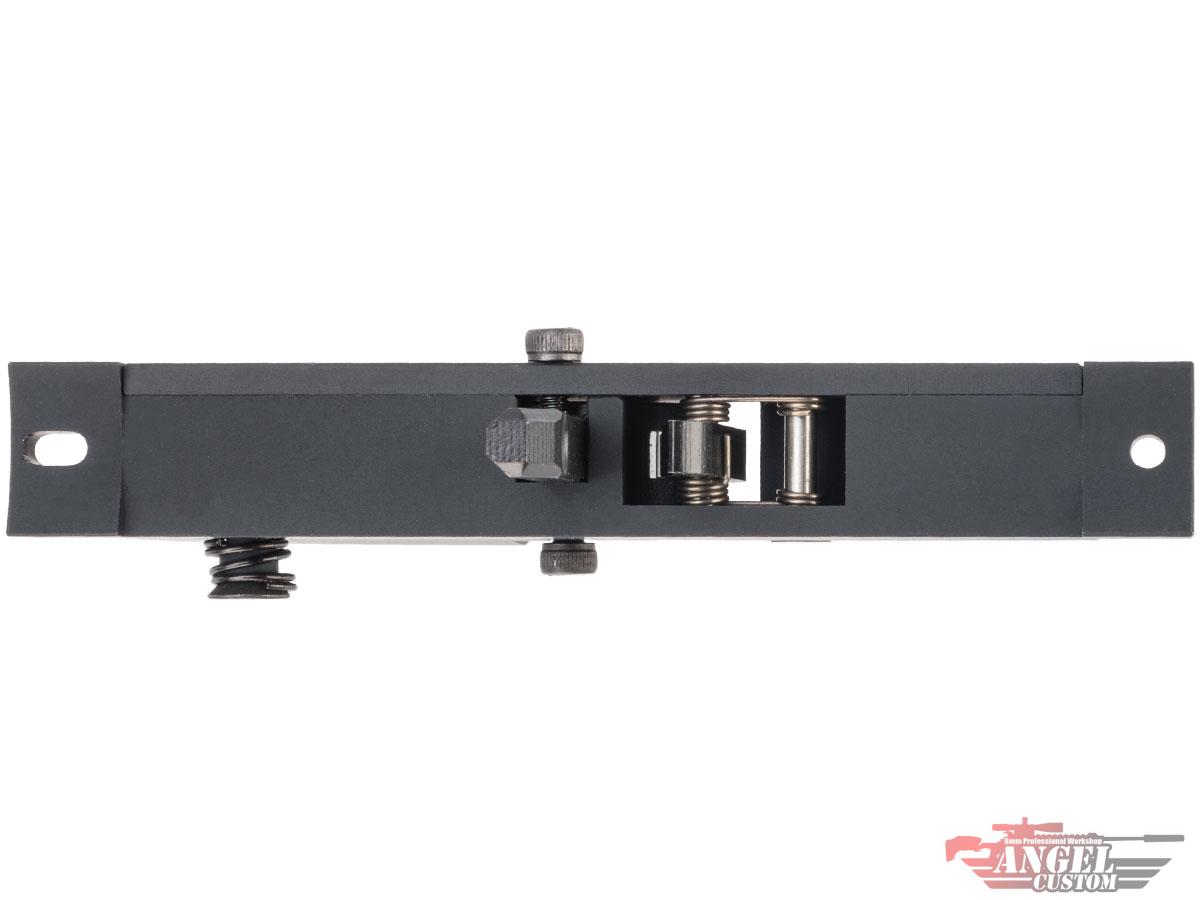

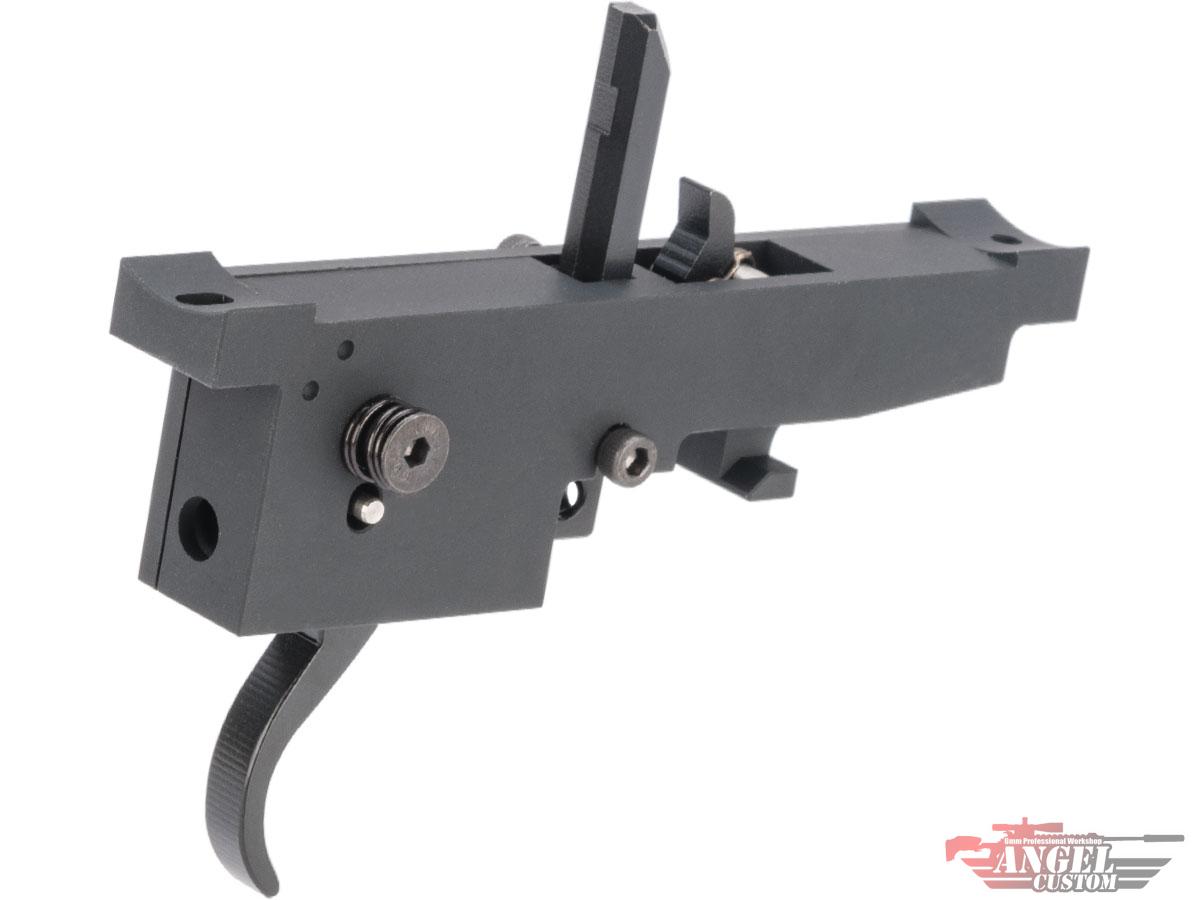

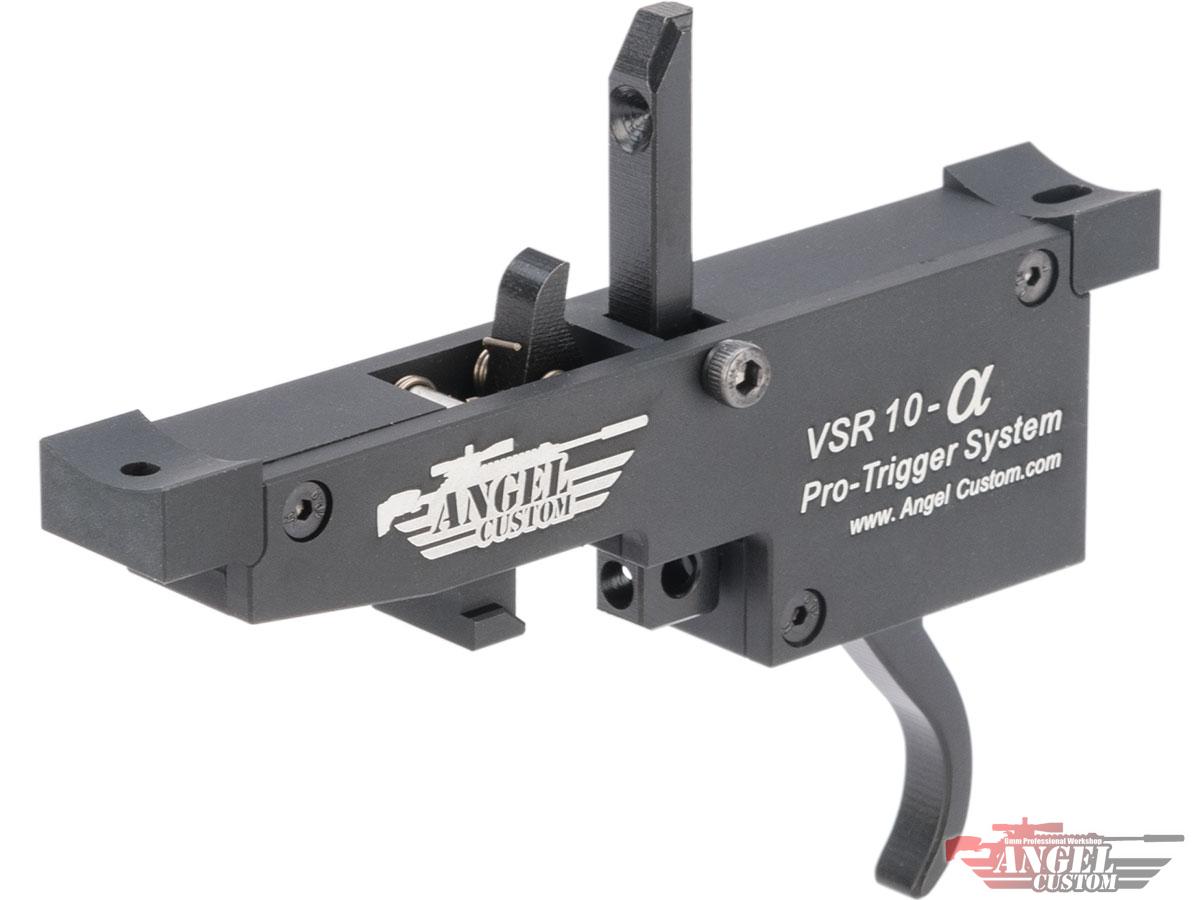

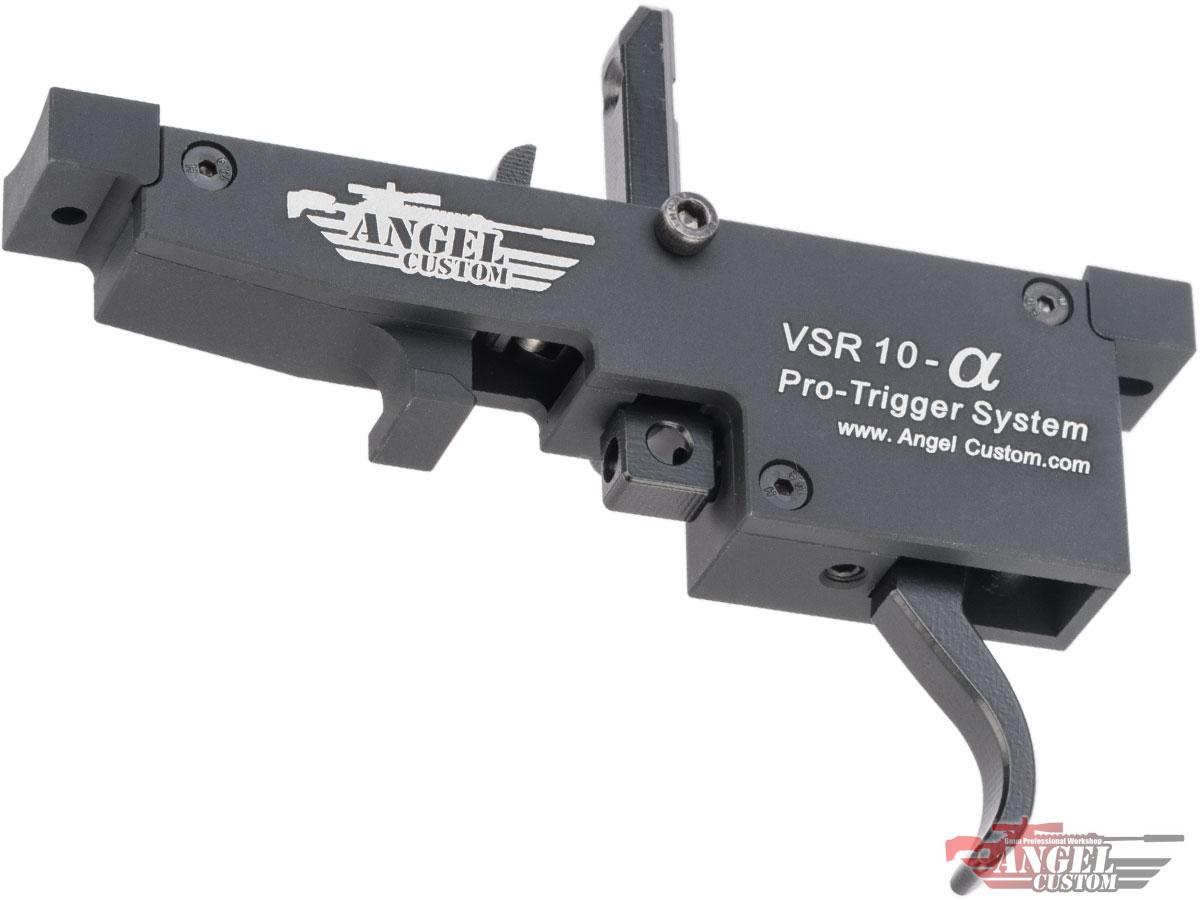

Angel Custom Alpha Pro Zero Trigger System For VSR-10 Airsoft Bolt Action Sniper Rifles

About Angel Custom "Alpha" & "Omega" Professional Zero Trigger System:
The Maruzen's APS / Type96 and Tokyo Marui's VSR10 system are among the two most popular bolt action sniper platforms. The Marui VSR10 system offers great trigger response while lack the ability to manage high power upgrades. The Maruzen system offers the ability to take high power upgrades but lack everything else. The Angel Custom Alpha and Omega trigger system combined the best of both worlds to bring you the ultimate trigger set for your ultimate sniper rifle build.

  • Angel Custom Alpha Pro Trigger System: Advanced light pull zero+1 trigger system for enhanced stability and durability. Designed for all levels of shooters. Featuring stability and durability. Redesigned from the PDI V2 zero trigger system, the Angel Custom Alpha Trigger System is the industry's latest and most durable trigger system featuring shooting stability, adjustable trigger tension and a light trigger pull. The modified sear set provides the highest level of durability while retaining the stock safety function.
  • Angel Custom Omega Pro Trigger System: True Zero trigger for fastest response possible. Designed for advanced users. The Omega Pro Zero trigger system is a true zero trigger re-designed (120% improvement) after the Laylax zero trigger system. Compare to the Alpha system, the Omega system is much more complex in design, with less safety features (a drop of rifle may trigger the rifle, so it is critical that you transport it unloaded). The Omega system is recommended for advanced shooters only.

  • Specifications / Features:
  • Advanced Trigger System far superior over the stock trigger system in both performance and durability.
  • Provides smooth cocking, comfort loading, light pull trigger action and highly enhanced stability.
  • Provides the necessary durability for high power operation and upgrades.
  • Integrated modified trigger sear, piston sear and trigger bearing to allow a full range of power upgrades.
  • The Alpha trigger system provides an adjustable trigger sensitivity for advanced shooting requirements and habits. (clock-wise for lighter pull and counter-clockwise for heavier pull. Avoid over-screwing.)
  • The Alpha trigger system retains the original safety function.
  • Each "Alpha" Pro Zero Trigger system is individually fine-tuned by Angel Custom certified technicians.
  • Designed to provide minimal friction for a fast response and light trigger pull under high power upgrade. (The stock trigger box will experience strong tension and friction after high power upgrades.)
  • The original 45 degree piston design creates unnecessary friction with the Cylinder. The Alpha trigger's second piston sear will catch the integrated 90 degree piston properly to maximize durability and stability.
  • 100% Full CNC Milled Military Grade Aluminum Housing.
  • 100% Full CNC High Carbon Steel (H.C.S.) Internal Sear Set
  • 100% Full CNC High Carbon Steel (H.C.S.) Trigger.
  • MAX Piston and Cylinder Head Set included.
  • Special piston head and SUS304 Cylidner Head design allow MAX air seal, directed air flow and quite operation.
  • Integrated teflon spacers to further reduced frictions.
  • Some modification may be required, professional installation recommended.

  • Materials: CNC Aluminum Enhanced Housing, S136H Swedish Steel Sear Set and Internal Parts, High Carbon Steel Trigger
    Processing: 100% CNC / Anodized.
    Package Includes: Complete Alpha Pro Trigger System, VSR-10 MAX Pistol (90 Degree Aluminum Piston with Stainless Steel End Cap and Stainless Cylinder Head
    Compatibility: VSR-10 G-Spec VSR10 VSR11 Series Bolt Action Sniper Rifles, KS, and compatible models.

    Manufacturer: Angel Custom

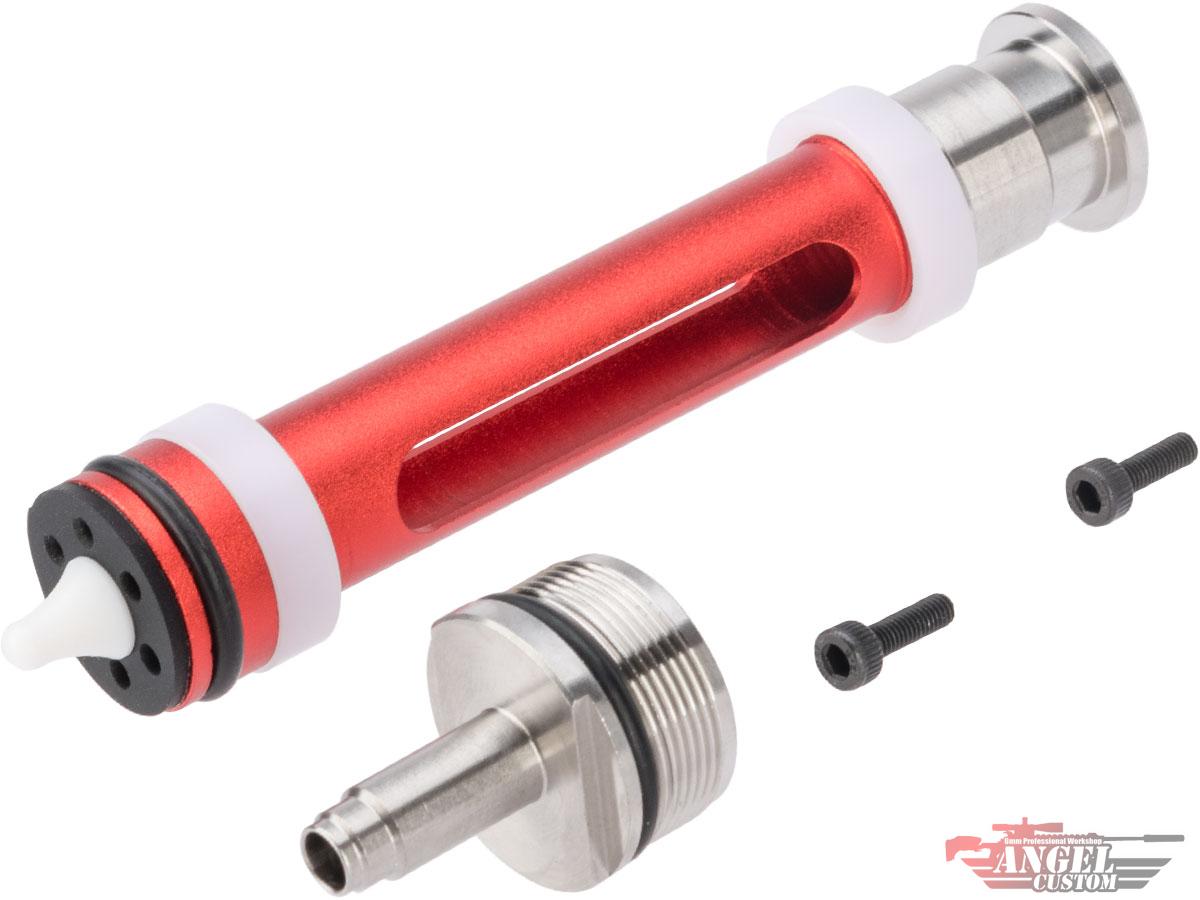

    The Angel VSR-10 Cylinder Head and Piston Head: The inherent design flaw of the Tokyo Marui VSR-10 is its original 45 degree piston head. When a M150 or higher power spring is installed, the piston sear will start to stress the piston and moving the piston forward. As a result, the piston will experience a large amount of friction with the cylinder when you pull and push the bolt. The complete Alpha Pro Trigger System allows provides a Piston featuring a 90 degree aluminum piston with steel end cap and a new concave front end design as well as a stainless cylinder head with concaved rear end design.

    Normal Trigger:

    Angel Custom Alpha Pro Trigger System:

    The 90 Degree Cylinder Set is also a great upgrade for existing PDI and PSS10 Zero Trigger Sets performing a higher gas output than the originals.
