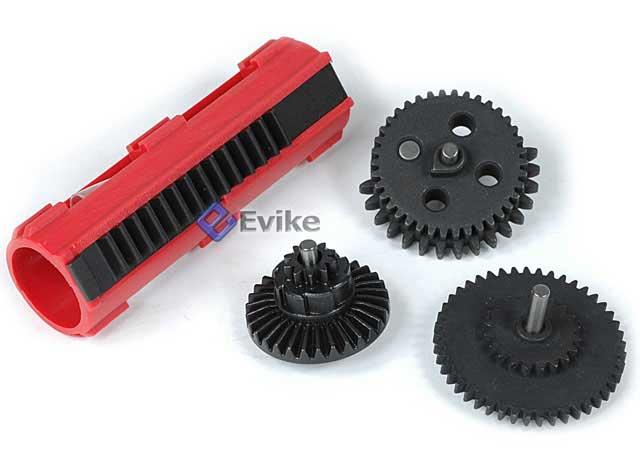

AIM Tornado Infinity Torque Gear Set w/ Hell-Fire Piston for Airsoft AEG Rifles

AIM Top29527
4.4 stars, based on 12 reviews


Model: Gears-AIM-02-02

12 Customer Reviews

by Marcus G. on 02/09/2015
"Gears are tough but not the teeth on the piston. Needed to strengthen my gearbox so i bought this and am satisfied though the teeth on the piston broke after setting aoe, was pulling a 110 spring. I got a couple of shots then nothing. Took it apart again and found the back tooth gone n jammed the gears. At least the gears are proven tough now. The springs for shimming are a great idea but the bevel gear couldn't take it not enough room so i had to shim that normally.
by Brett T. on 11/12/2014
"The Good: Sturdy, sexy, consistent, boss. So far it's been very good to me, even with a M140 spring. Currently resides in my JG G36(DMR Version) Version 3 Gearbox

The Bad: Be careful with the plastic of the piston, it's prone to damage from anything sharp - otherwise it's quite sturdy.

The Ugly: Nothing, it's beautiful!
by Robert S. on 10/25/2012
"This gear set and piston is pretty nice. However, in a JG version 3 gearbox the sector gear catches slightly on the trigger. This is not a big deal, just file a small groove where the gear contacts the trigger. Besides that, the sping system is a nice feature. Overall, a pretty awesome gear set.
AIM Tornado Infinity Torque Gear Set w/ Hell-Fire Piston for Airsoft AEG Rifles

AIM Tornado Infinity Torque Gear Set w/ Hell-Fire Piston for Airsoft AEG Rifles

The AIM Top Hell-Fire piston and gear set is pr-customized and optimized to be the perfect piston for any AEG gearbox setup. The Infinity torque gear set is dedicated to provide advanced users the high power and durability you seek. Inspired and modeled after the "customized" pistons by top Airsoft technicians in the world, the Hell-Fire Piston features a full rack of CNC steel teeth to provide the maximum durability you would find in a full metal piston. The AIM Top piston also features a light weight body made out of hard polycarbonate with all the unnecessary parts already shaved off for a perfect light weight and durability equilibrium. Ultimately, your AEG will enjoy the best of both world from the metal and polycarbonate pistons with both durability and performance!

Manufacture: Matrix OEM: AIM Top. (Matrix is USA Distributor for AIM Products.)

  • 25:65 Gear Ratio.

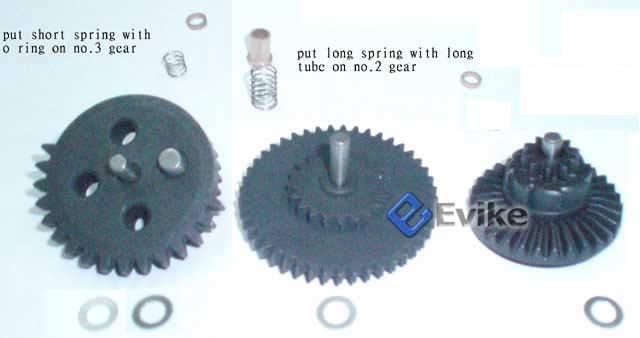

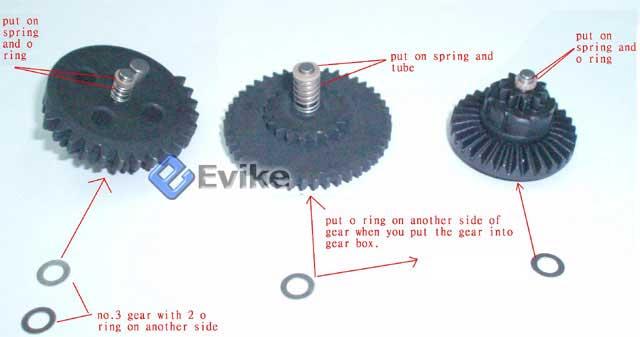

  • Gear set comes with spare bushing, spring and ring for user to adjust the position of spur gear to float perfectly inside the gearbox for maximum performance.
  • One Piece Construction Reinforced Gear Set.
  • Automatic Friction Adjustment Gearset.
  • Optimized for high speed applications with M110~M150 springs.

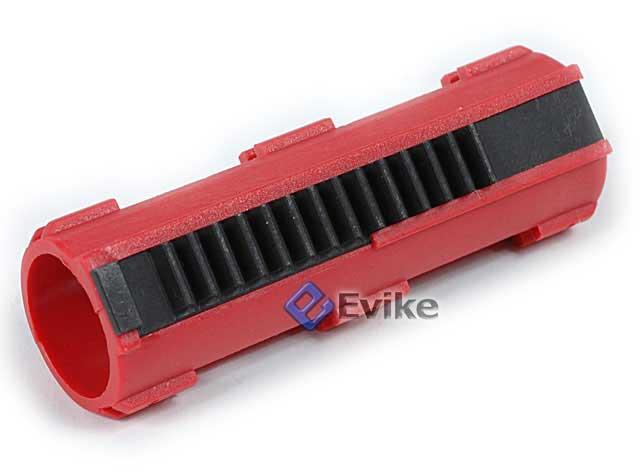

  • Full rack of CNC steel teeth for maximum durability.
  • Pr-Cut piston body with no unnecessary weight for optimized performance.
  • Works for all applications (high torque / standard / high speed).
  • Spare CNC teeth strips available for future replacement without replacing entire piston.
  • Enhances rate of fire.
  • Widened steel teeth for enhanced gripping and durability.
  • Universally compatible with all major piston head designs.
  • Universally compatible with bore-up and standard bore applications.

  • Review:
    This piston is among the best piston in the feature it offer and the flawless construction it is equipped with. As advertised, the CNC steel rack of teeth with a fully carved piston body provides the best of both worlds. The design allows this piston to out-perform in both high speed and high power applications. Simple examination will see that this piston is also equipped with a widened strip of teeth for better gripping and chance of stripping. The steel teeth is removable in the event of wear and tear which is also a plus. Spare teeth strip can be located here on!

    Find spare piston teeth strip here on!
