"THIS MOTOR RUNS AMAZING AND A MUST FOR ANY HIGH ROF SET UPS!
Does not eat up battery
Very magnetic (if bbs were metal I'd be out instantly. Its just really magnetic)
Heavy... for a motor (makes my gun more balanced.)
Did I mention fast
Just one...YOU DON'T HAVE THIS! "Buyers beware, just confirmed that WITHOUT MODIFICATION, this will NOT fit into Tokyo Marui's P90 motor cage (Possibly P90s of other brands as well).
The problem is that the heads of the 2 black screws that secure the base plate of the motor are way too thick for the motor cage to shift far enough to latch back together.
The simple fix I've found is go to a hardware store and look for metric 0.5mm x 10mm screws that have comparably more flushed heads.
Once you got the new screws, simply replace the original black screws ONE AT A TIME (keep one black screw securely in place so you can screw the new screw in without the base plat popping open on you, as you'll need to use some force to fit the new screws all the way down. Once the first new screw is in tight, you can then remove the 2nd black screw and replace it with another new screw, again, make sure it sits all the way down.)
Also, originally there are 2 washers on each of the black screws (4 total), remember to place at least one washer in each of your replacement screws before screwing them in.
Obviously once you've done this you'll void all warranty, so do it at your own risk.
Once it's all fitted together properly, this motor performs flawlessly. If not a bit hot, which's a common problem for all the high speed motors anyway. So try to avoid doing long bursts with these high speed motors installed.
1 star deducted for the fitting problem and time spent replacing screws, but otherwise it works really well. "This is a great motor! The neo magnets are very strong. I put this particular motor in my Echo1 ST6 with a MOSFET and 16gauge wire. The stock motor with a M110 and the upgraded wire setup was getting about 14-15rps (tested with an excortech chrono). I put a M120 and this motor into the gun with a shim job, it now shoots at 23rps! The only problem i had was that the pinion on the motor was slightly to large for the opening in the gearbox, with a quick mod to the gearbox it worked fine.
Its a neodymium motor
Huge increase in rof
Pinion was slightly to large Read More Reviews Write a Review
« Back to product description

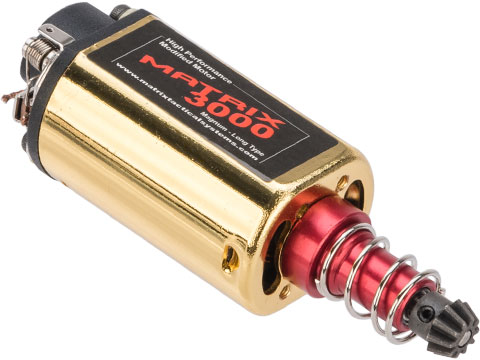

PRODUCT SPECIFICATIONS DESCRIPTION : Matrix Super High Speed Custom High performance AEG Motor.
(Fits all M4
/ MOD5 and other gearbox that uses
long type motor)
Comparable output and performance to Systema Turbo motor at almost half the price! Manufacture : Matrix Tactical Systems Type : Long
Type (Fits all
and other gearbox that uses long type motor) Compatibility
/ Application : Designed for Tokyo Marui, ICS, Classic Army, G&G, G&P, Echo 1, JG, TSD, Matrix, SRC and other compatible A.E.G. models that
long type motor.
Super high speed output. Install to have your AEG shooting at higher rate of
fire than normal. This turbo motor is also capable of pulling up to a M120
spring making it a much stronger high speed motor than the Systema and Guarder.
One of the highest performance motor available. Heat sink motor grip
High Speed Revolution (40000 rpm). Compare to Marui EG1000 (28000 rpm) Dimensions : Weight:
Material: Stainless / Steel / Polycarbonate / Aluminum
Built in ball bearing bushing and aluminum Axis bushing. Planning
your high speed upgrade: High
speed upgrade in Airsoft means "high rate of fire" = LOTS OF ROUNDS
per second. It has nothing to do with how hard the bb are shooting. As high
speed gear or motor doesn't alter the muzzle velocity.
The below tips are information for your reference. Some issues such as
feeding, shimming your gears perfectly and setup can vary depending on your
AEG model and manufacture. High speed upgrade are for very experienced Airsoft
players that can replace gears, pistons and other parts understanding
"what's wear and tear".
To increase the rate of fire on your Airsoft guns, there are a few ways.
1) Get a battery with higher voltage (v) or capacity (Mah). 9.6V is most
recommended for high performance AEG. Note that if your battery exceeds 9.6V
(10.8V or 12V) you are pushing the motor. Don't ever go over 12V.
2) Install a high speed / turbo motor.
3) Install a high speed gear set.
It is recommended to use M100 spring or lower for high speed setup. The Matrix
Turbo motor can probably handle up to M120. Combining the above options can
result super high rate of fire. However, having super rate of fire will result
other issues such as gear stripping or your magazine not feeding fast enough.
Having a smooth high speed AEG will require some trial and error. Here we
recommend maybe just the motor and a better battery as it is the most direct
Matrix turbo motor is a great motor for those that wants to concentrate on
building high rate of fire on your AEG. A super high rate of fire gun is much
more effective than a high power sniper in a CQB environment. If your rate of
fire is slow, you can miss your target if it is running by.
High speed upgrade are for experienced players only. Wear and tear rate will
be much higher when the rate of fire is increased, especially when the gear
sets are not shimmed perfectly. (Most stock AEG are NOT shimmed.)
Matrix turbo motor have a much higher torque than the Guarder turbo motor,
even stronger than the Systema one. (The magnet strength is much stronger,
probably the only turbo motor that can run up to a M120 spring.) However, due
to the super high performance, having a motor plate with air vitalization is
recommended. The motor is anti-heat treated and can stand high heat in high
speed operation, it will get warm faster than standard motors if fired
The Matrix Turbo motor is a super high speed super performance motor. A very recommended upgrade for Tokyo Marui, Classic Army, JG, Echo 1 and other Chinese A.E.G. owners using a "stock" motor that wants a higher rate of fire.
Infinite Torque-up Motor The Aluminum Axis Bushing Matrix Motor Pinion Gear (Thermal Treatment) Fits All Marui & Compatible Brands
