"This MOSFET works just as described. I have installed it in my KWA G36C. I found the best place to put the unit is in a small gap within the frame between the trigger assembly and he battery compartment. I'm using a 7.4v Lipo as the 11.1 just causes way too much ROF which in turn actually causes a vacuum within the piston housing and I would watch the FPS drop while holding the trigger. The ROF, even with the 7.4, is still fast and you have to program the Avocado accordingly (two trigger pulls for a three round burst, etc.). I have noticed a much better and faster trigger response with extremely consistent FPS with every trigger pull. Also, my battery life was noticeably extended. Overall, this is the best electronic upgrade you can get, for the price, for your AEG. It is extremely easy to install and program. The size is outstanding for almost any AEG. I've upgraded my G36 barrel to a Prometheus 6.03 which has increased the FPS slightly (398) and has greatly improved accuracy and range. Combined with the Avocado Burst this AEG is a real contender in CQB. I am extremely satisfied with this purchase and will be getting another unit for my KWA SR10. I could remove the unit from my G36 and move it to the SR10, but because of the tight fit in the G36 it would just be too much work to quickly change out the unit. Before, one would have to upgrade lower resistance wiring and solder in a MOSFET to get the same results as this "plug and play" Avocado. A good buy! "Works as described , had to do some modifications to p90 battery compartment to get it to fit in. Works perfectly , going to buy another when they come in stock. One quark though got this so my p90 would shoot on semi , which broke , burst avocado causes about 1/10 shots to shoot twice instead of once , this is most likely because my downgraded p90 shoots at 190fps , however this is not a problem for me.
strongly recommended "this thing is really cool. tecnically speaking, its not quite as good as some other computerized mosfets because it doesnt stop trigger arching. however, its advantage is that one unit can be used in all of your guns by simply unplugging it from one gun and plugging it into another.
can be used in any gun that has enough space
1-12 round burst
easy to set
active breaking on burst mode
doesnt stop trigger arching
high rates of fire (above maybe 25 rps?) cause the burst count to be off (i have it set on 2 round burst in my SA58 and i get 3-4 rounds every pull of the trigger
i rated it a four because it does what it is supposed to do (give your gun burst mode) but it doesnt stop trigger arching with 11.1v batteries. however for the price, this is the best thing on the parket period Read More Reviews Write a Review
« Back to product description

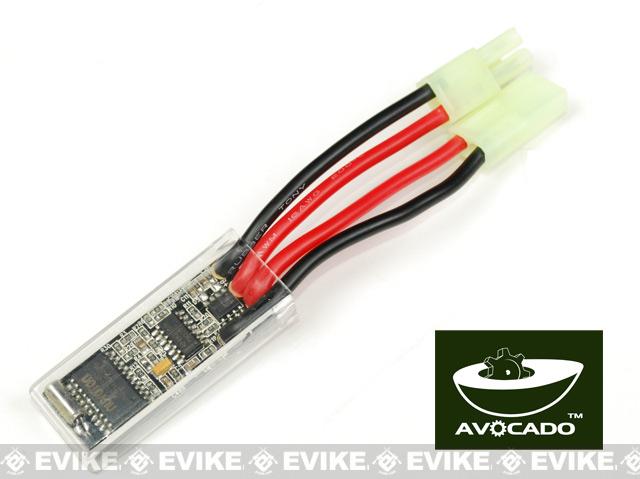

Burst Avocado-II Programmable Fire-Control For Airsoft AEG Rifles (LIPO Batteries / 1~12, 30 bb burst adjustable) Model:
Burst Avocado II Lipoly Edition.(Not for NiCd and NiMh batteries)
Add "burst function" to virtually any Airsoft AEG in seconds! This unit is environmental, it conserves bullets for high rate of fire guns, acts as a MOSFET to regulate your power source and more! There is simply nothing like it! Many shooters would argue that burst firing is the most green, tactical and economical feature on a rifle.
The Burst Avocado provides you reduced gearbox wear and tear, improved milsim realism, trigger control and tactical advantages!
The Burst Avocado is the Ver.2 design of the burst wizard we previously offered with "easier adjustment", "mosfet technology" and "real time burst fire"! The more expensive units on the market are older design with long delay for firing and they costs more only because you are getting it from a retailer that buys from a importer from a manufacture. The good news is, Evike.com is the manufacture and world-wide distributor for the Burst Avocado.
Compare to similar products on the market:
There are nothing else on the market that offers on-par functionality as the burst avocado! They are either harder to program, harder to install, with half or less the functionality and generally costs much more for absolutely no reason!
Features, Innovations and improvement on the Avocado Burst. Fire-Control. Turns the "Full Auto" function on your AEG into "3~12 round burst" firing mode. Regulates your battery output. Reduces melting switch assemblies. Programmable continuous shoot mode of 30 round burst. Fast trigger response, realistic cycle and switches firing mode in seconds! Unplug in seconds to return your AEG to full auto mode. The burst starts when you pull the trigger, not when you release the trigger. (Unlike the previous burst wizard model.) User-friendly: In-line programmable, user can program the AEG to "X round burst" from the trigger in seconds! "SUPER EASY" installation in seconds! Plug it in your gun just like how you plug in your battery! Simple drop-in installation with absolutely no soldering required. It doesn't cost hundreds of dollars. Controlled by USA Made circuit chip. Equipped with up-to-date power MOSFET technology! Active braking technology employed. Beep tones available for programming confirmation and battery low indication. Self-adjust battery status to suit various types of batteries. Improves battery life, rate of fire, spring life and gearbox reliability! Battery Protection:
The "Burst Avocado" is equipped with battery low detection. There are 2 per-installed thresholds at 6.3V and 9.3V sllowing a wide range of battery voltage to be used. The device will detect the initial voltage when the battery is connected and determine which threshold to be used. Once the battery goes below the preset threshold, the device will generate a warning tone and stop the gun from firing during trigger pull. This is especially useful for lipo battery applications due to the inherited trait of lipo batteries where they should not to be drained completely.
Avocado Airsoft USA
45mm x 17mm x 8mm
Maximum Continuous Current:
Recommended operating battery type:
Li-po 2~3 cells. (7.4~12V)
Programmable "Burst" Mode:
1 to 12 shots
Programmable "continuous mode:
Battery Low Detection:
6.6V ~ 9.9V
*If your AEG's ROF is higher than 25, there will be a inaccuracy of +1 shot. For example, 2 trigger pull adjustment for 3 round burst and so on.
In electronic terms, a MOSFET (Metal Oxide Semiconductor Field Effect Transistor) is a transistor employed in the amplifying and switching circuitry. MOSFET in simple term is a name for "discrete electronics component". The term "MOSFET" is not a "dedicated / defined feature". The purpose of a MOSFET is its high current handling ability and low turn-on resistance. A MOSFET is widely used in motor control application, e.g. Airsoft AEG.
The word “MOSFET” in the gun hobby region is referring to a dedicated function, i.e. the “Electronics Trigger/Switch”. Generally it is a circuit to prevent the traditional mechanical trigger from easily wearing out, as the current flowing through its contacts is really high!
While a traditional MOSFET handles the current flow for the trigger, the Burst Avocado is a different MOSFET application that focuses on the "Shoot Control" and "Plug & Play". This MOSFET in this application controls the number of shots instead of the trigger.
The Burst Avocado provides MOSFET circuitry to the gun providing the shooter and the rifle a controlled power source, thus offering better protection for all electronic components of the gun.
What is burst fire?
When you pull the trigger, it will fire X amount of bullets and stop firing until your next trigger pull. (As seen on the $1500 Systema burst AEGs.)
This little circuit board device consists of 4 layers of electronics. This is by far the most advanced electronics we have ever seen in airsoft. Period. (Far more advanced than even the circuit found in a System PTW that is $1200+). It is durable, easy to use, and simply a must have for everyone that owns an AEG!
