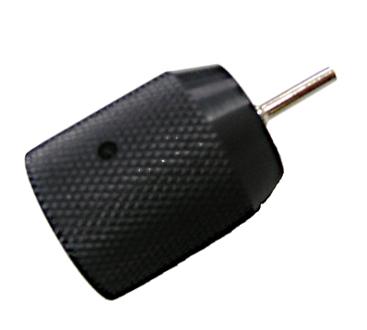

S-Thunder CO₂ Cylinder Adapter

Adapter for S-Thunder's CO₂ Cylinders CDC-X001, CDC-X002 and CDC-X003; stainless steel construction and has been engineered to not leak gas. Adapter is needed to charge S-Thunder's Gas Landmine and Gas Grenade products.

SPECIFICATIONS:
Size: 2.3cm diameter, 2.8cm length

Model no: ACC-X006

NOTE: Not ok to use on GBB (Gas Blow Back)
XM-CHARGER is special designed for CO2 powered gears.

Problems you might have:
(1)There is no CO2 output:
The CO2 tank valve is not pushed by the XM-CHARGER's brass screw.
Not all tank valves are built the same and you need to do with the height of the pin located at the center of the valve.
You can also adjust the brass screw inside the XM-CHARGER. In this case, you need to use screw driver and counter-clockwise to turn the brass screw up.
--------------------------------------------------------------------
(2) Removing the adapter from a partially charged CO2 tank: You need to do the following.
Loosen the adapter about 1/2 - 3/4 turn, and then press the stem against a hard surface to release the trapped CO2.
Once this is done, the adapter?should come off the rest of the way with no trouble at all.
This is the much the same procedure we use when removing the tank from a paintball gun.
On the paintball guns you'll see they've provided a small vent hole, which aids in the release of?that bit of gas pressure.
There is also a vent hole on the XM-CHARGER which provides the same function.
--------------------------------------------------------------------
The CO2 power is only designed for model: XM-PB4, XM-108HP
NOTE: If you use CO2 as the power of your airsoft, it may cause damages on your gears.
NOTE: This is a B.B. shower toy. Not a real thing. Please wear goggle all the time and don't aim to people.
