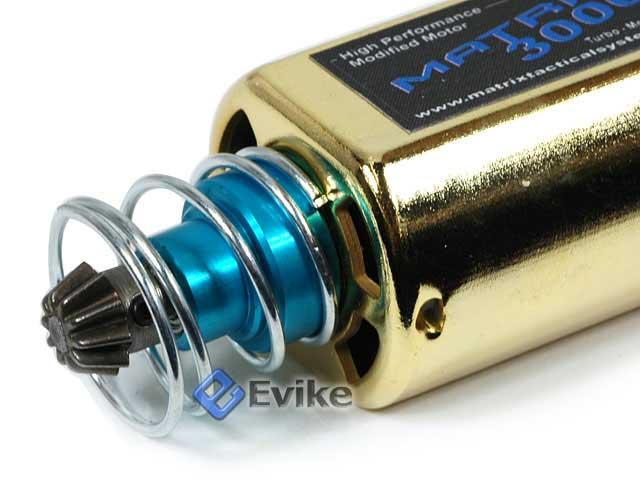

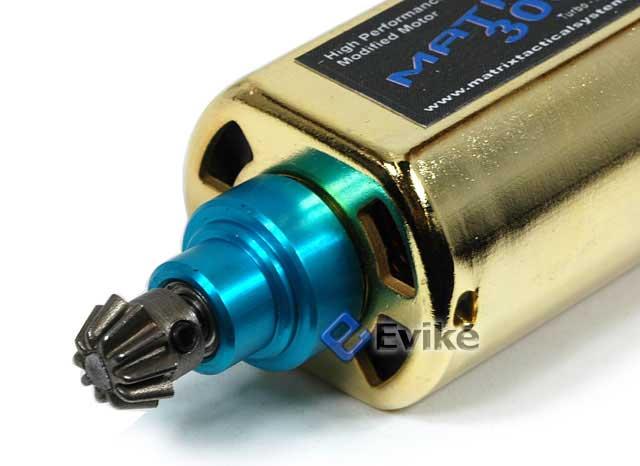

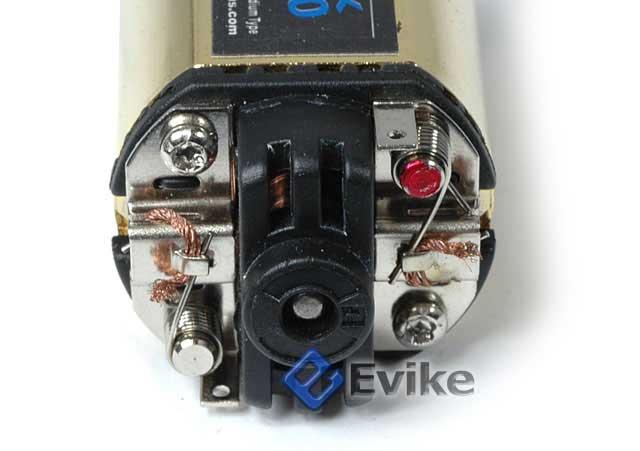

|  PRODUCT SPECIFICATIONS | | DESCRIPTION | : | Matrix Super High Speed Custom High performance AEG Motor.
(Fits all SIG Series and other gearbox that uses Medium type motor) Comparable output and performance to Systema Turbo motor at almost half the price! | | Manufacture | : | Matrix Tactical Systems | | Type | : | Medium
Type (Fits all
SIG 552 / 556 / 550 / 551
and other gearbox that uses medium type motor / SIG series) | | Compatibility
/ Application | : | Designed for Tokyo Marui, ICS, Classic Army, G&G, G&P, Echo 1, JG, TSD, Matrix, SRC and other compatible A.E.G. models that
uses a
medium type motor.
Applications:
Super high speed output. Install to have your AEG shooting at higher rate of
fire than normal. This turbo motor is also capable of pulling up to a M120
spring making it a much stronger high speed motor than the Systema and Guarder.
One of the highest performance motor available. Heat sink motor grip
recommended.
High Speed Revolution (40000 rpm). Compare to Marui EG1000 (28000 rpm) | | Dimensions | : | Weight:
250g
Color: Black
Material: Stainless / Steel / Polycarbonate / Aluminum
Built in ball bearing bushing and aluminum Axis bushing. | | Planning
your high speed upgrade: | | High
speed upgrade in Airsoft means "high rate of fire" = LOTS OF ROUNDS
per second. It has nothing to do with how hard the bb are shooting. As high
speed gear or motor doesn't alter the muzzle velocity.
The below tips are information for your reference. Some issues such as
feeding, shimming your gears perfectly and setup can vary depending on your
AEG model and manufacture. High speed upgrade are for very experienced Airsoft
players that can replace gears, pistons and other parts understanding
"what's wear and tear".
To increase the rate of fire on your Airsoft guns, there are a few ways.
1) Get a battery with higher voltage (v) or capacity (Mah). 9.6V is most
recommended for high performance AEG. Note that if your battery exceeds 9.6V
(10.8V or 12V) you are pushing the motor. Don't ever go over 12V.
2) Install a high speed / turbo motor.
3) Install a high speed gear set.
It is recommended to use M100 spring or lower for high speed setup. The Matrix
Turbo motor can probably handle up to M120. Combining the above options can
result super high rate of fire. However, having super rate of fire will result
other issues such as gear stripping or your magazine not feeding fast enough.
Having a smooth high speed AEG will require some trial and error. Here we
recommend maybe just the motor and a better battery as it is the most direct
way. The
Matrix turbo motor is a great motor for those that wants to concentrate on
building high rate of fire on your AEG. A super high rate of fire gun is much
more effective than a high power sniper in a CQB environment. If your rate of
fire is slow, you can miss your target if it is running by.
High speed upgrade are for experienced players only. Wear and tear rate will
be much higher when the rate of fire is increased, especially when the gear
sets are not shimmed perfectly. (Most stock AEG are NOT shimmed.) The
Matrix turbo motor have a much higher torque than the Guarder turbo motor,
even stronger than the Systema one. (The magnet strength is much stronger,
probably the only turbo motor that can run up to a M120 spring.) However, due
to the super high performance, having a motor plate with air vitalization is
recommended. The motor is anti-heat treated and can stand high heat in high
speed operation, it will get warm faster than standard motors if fired
continuously.
The Matrix Turbo motor is a super high speed super performance motor. A very recommended upgrade for Tokyo Marui, Classic Army, JG, Echo 1 and other Chinese A.E.G. owners using a "stock" motor that wants a higher rate of fire. |
 | | Infinite Torque-up Motor |  | | The Aluminum Axis Bushing |  | | Matrix Motor Pinion Gear (Thermal Treatment) |  | | Fits All Marui & Compatible Brands |  |
|
