G&P Complete 8mm Reinforced gear box for M4 M16 Airsoft AEG - Deans / Rear Wiring

Model : [GB-GP-EV-GB002B]
Location : [U11-084]

~~$85.00~~ $70.00

G&P Complete 8mm Reinforced gear box for M4 M16 Airsoft AEG - Deans / Rear Wiring

Looking to upgrade your rifle into one that performs like a G&P? G&P Rifles feature this custom made gearbox, exclusive to Evike.com, and hand-built individually by the top technicians in Hong Kong. G&P rifles shoot better than the competition due to their superior parts. This is s great gearbox to have as a primary, spare, to repair, replace or upgrade. Recommended for advanced players who have a grasp on gearbox installation, tuning and possible modification due to variations with brands of M4 rifles on the market.

Power: 340~400 FPS. Can be upgraded to use higher power spring.
Weight: 740g
Wiring Location: Rear Wired
Plug type: Deans Plug
Type: Version II / 8mm bearing / For M4, M16 and other compatible models

Manufacturer: G&P

Includes:
-8mm Reinforced Bearing Gearbox Shell
-8mm Steel Bearings
-8mm Selector Plate
-Reinforced Cylinder
-Reinforced Metal Cylinder Head
-Reinforced Metal Nozzle
-Reinforced Metal Spring Guide
-Reinforced Piston Head
-Reinforced Piston
-Reinforced Steel Gears
-Reinforced Tappet
-Reinforced High Flux Electronic wire & switch

(All the parts are G&P factory direct reinforced parts)

*Fine Tuning May be required for best performance. Upgraded gear boxes are recommended for advanced players and may require tuning.

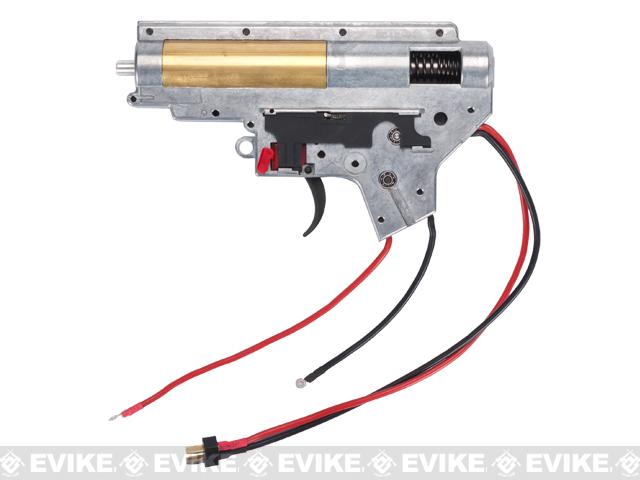

*Motor in image not included.

This product was added to our catalog on Wednesday 28 December, 2011.

Average Rating:
Current Reviews: 3

Submited By: nick c. on 04/07/2013
Alright not much to say so lets get to the pros and cons

Pros

Deans wiring

28 rps on a matrix 3000 high torqe motor

comes with lots of shims (I love shimming the gears for some reason)

Great trigger contacts

Near perfect air seal

Cons

The piston wasn't even bad I replaced it because It looked like cream cheese but either my madbul piston swiss cheesed and 2nd to last tooth removed with a ball bearing piston head is a dream in any v.2

Gears are good but their axles are not

Overall: Don't get this gearbox unless you are a tech G&P is a lot like Tokyo Maurui, it was made for upgrades, but once you get it shimmed and set up with something strong like I have like Echo 1 18:1 gears and my madbul piston, Everybody and their mother with a KWA is wondering how they are getting destroyed in reliability and performance.

Submited By: Ian H. on 08/22/2012
This G&P 8mm Gearbox is great. I got mine some time ago, and weighed it hand in hand with my previous (broken) JG stock gearbox. It weighed only slightly more. The internals are awesome. Half metal piston teeth (I believe 7 teeth), Shimmed gears, thick wiring (no tearing for me!). The 8mm bearing make these gears really spin! I went from approx. 25 BBPS, to about 30 BBPS both using a 9.6V 1600mAh nunchuck battery. Only downside to this gearbox is the motor wiring. First off, the plugs aren't normal plugs, they're circle screw plugs, which means you will need to buy a new motor. I got the Matrix 3000 Turbo (High Speed for me). Also, the plugs are slightly too small for these motors screws, so you'll have to drill the hole a little bigger.

Pros:
8mm Bearings
Deans Wiring
Strong metal gears
Pre-Shimmed gears
light
spare parts (motor plugs, wire covers)

Cons:
Motor wiring
My gearbox came really locked up (I got a bad egg, don't let this prevent you from buying this gearbox!).

Overall:
4/5 If there were different sized plugs, or at least normal plug-in plugs, this would be much nicer. All in all, buy this gearbox.

Submited By: Walter C. on 03/18/2012
I bought this to replace my shattered stock TM box. I've only run it through one day of games but so far so good with a m140 spring I swapped in. Comes with ball bearings, good set of G&P gears (with sector delay), good trigger and trigger group. It doesn't, however, come with a ball bearing spring guide nor piston head, so you might want to drop at least one of those in. I also replaced my piston with a aluminum because of the m140 and did a custom wire job due to a mosfet. All in all a solid box and a great buy.
